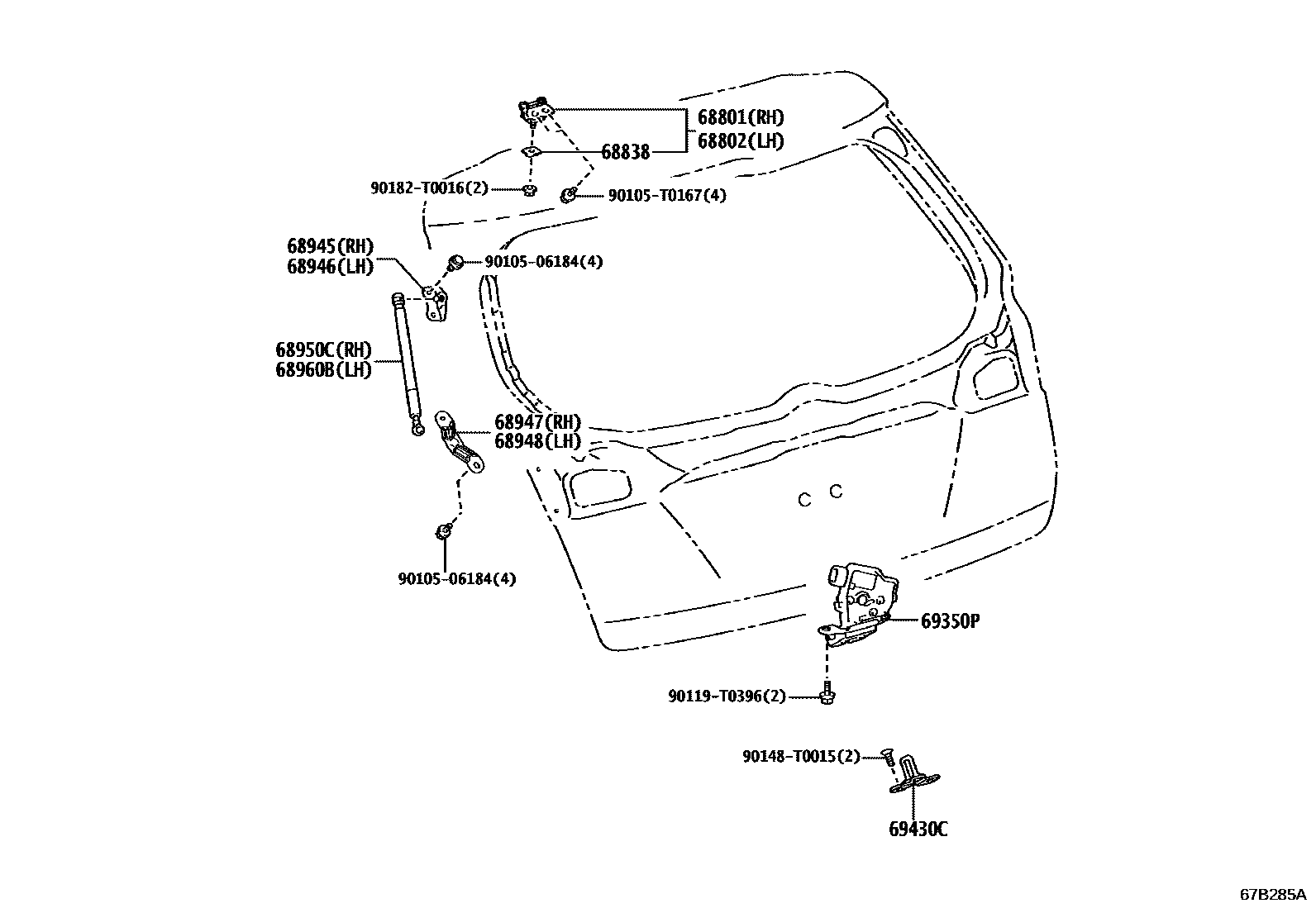

Toyota VIOS/YARIS — BACK DOOR LOCK & HANDLE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-0D180iNSP151..HB202012

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-0D180iNSP151..HB202012

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D130iNSP151..HB202012

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D050iNSP151..HB202012

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-0D050iNSP151..HB202012

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0D070iNSP151..HB202012

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-0D070iNSP151..HB202012

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D190iNSP151..HB202012

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D150iNSP151..HB202012

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D180iNSP151..HB202012

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D090iNSP151..HB202012

9010506184

main90105-06184¥70

90105T0167

main90105-T0167

90119T0396

main90119-T0396

90148T0015

main90148-T0015

90182T0016

main90182-T0016

16 parts on this diagram · 1 diagram in section
