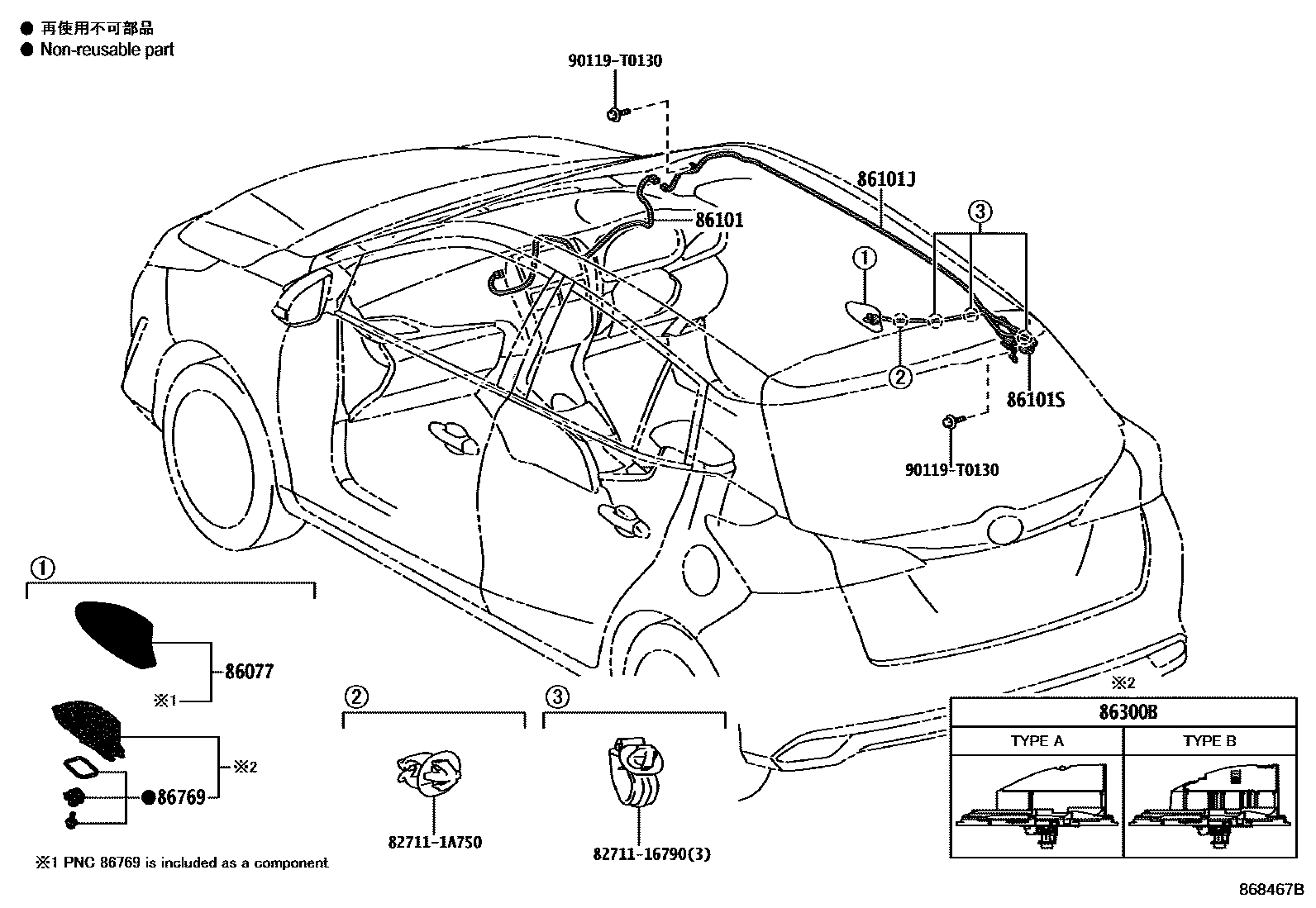

Toyota VIOS/YARIS — ANTENNA
86077COVER KIT, ANTENNA
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
RED M.M.,3R3
ORANGE ME.,4R8
DK.BLUE M.M.,8W7
NEBULA BLUE ME.,8X2
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QL ,2QM ,2UE ,2UH ,2US
RED M.M.,3R3
CITRUS M.M.,6W2
CYAN METALLIC,8W9
86101CORD SUB-ASSY, ANTENNA
86300BANTENNA ASSY, AMPLIFIER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
90119T0130
main90119-T0130
9 parts on this diagram · 2 diagrams in section
