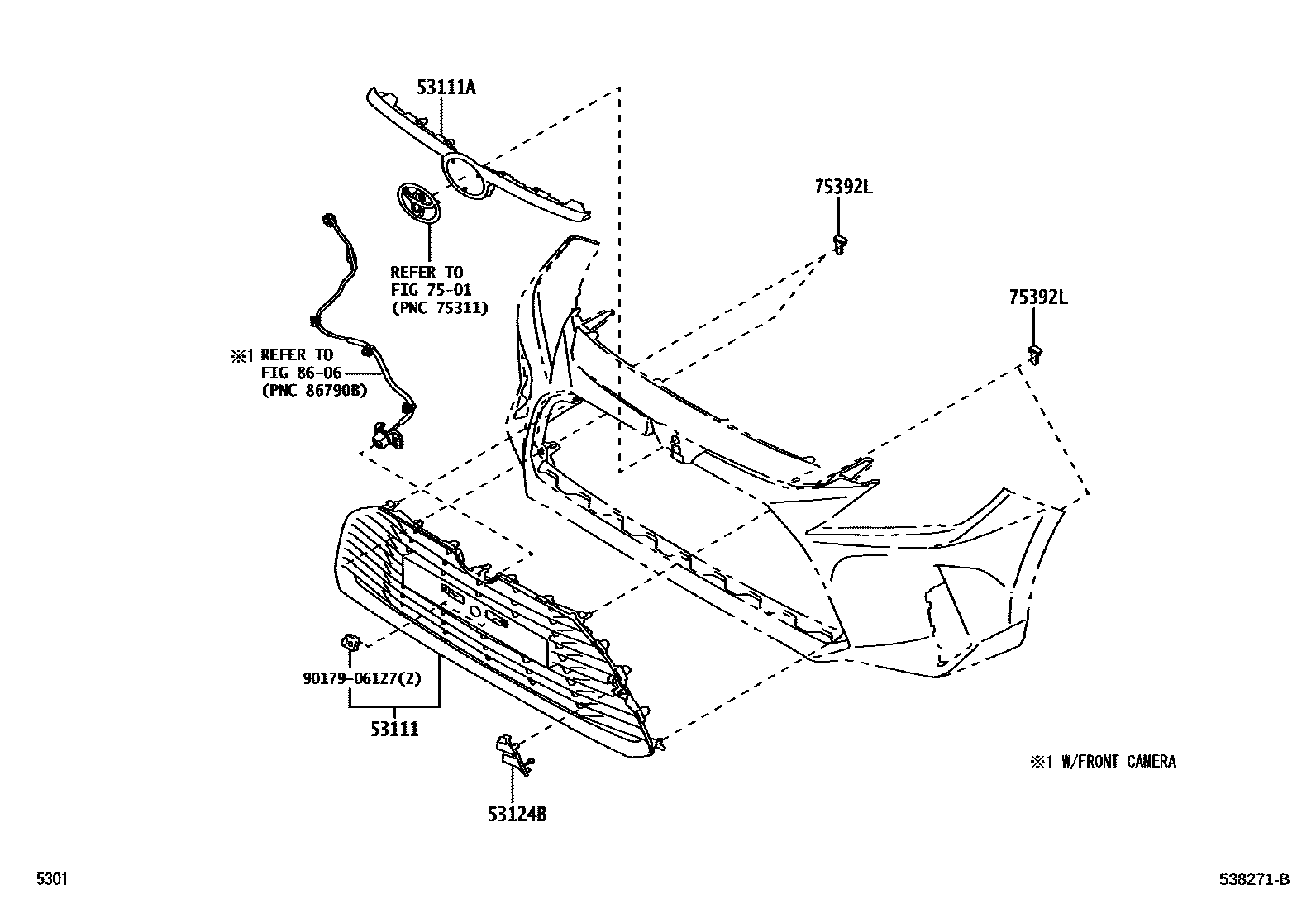

Toyota VIOS/YARIS/YARISATIV — RADIATOR GRILLE
53111GRILLE, RADIATOR
GRADE PACKAGE-LO(TH)
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
sub53112-BZ321
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
sub53112-BZ321
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1K0 ,R77 ,S44
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
sub53112-BZ331
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
sub53112-BZ331
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
53111AGRILLE, RADIATOR, OUTSIDE
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
53124BMOULDING, RADIATOR GRILLE SIDE, LH
GRADE PACKAGE-LO(TH)
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
7501
75392LRETAINER, OUTSIDE MOULDING
8606
9017906127
7 parts on this diagram · 1 diagram in section
