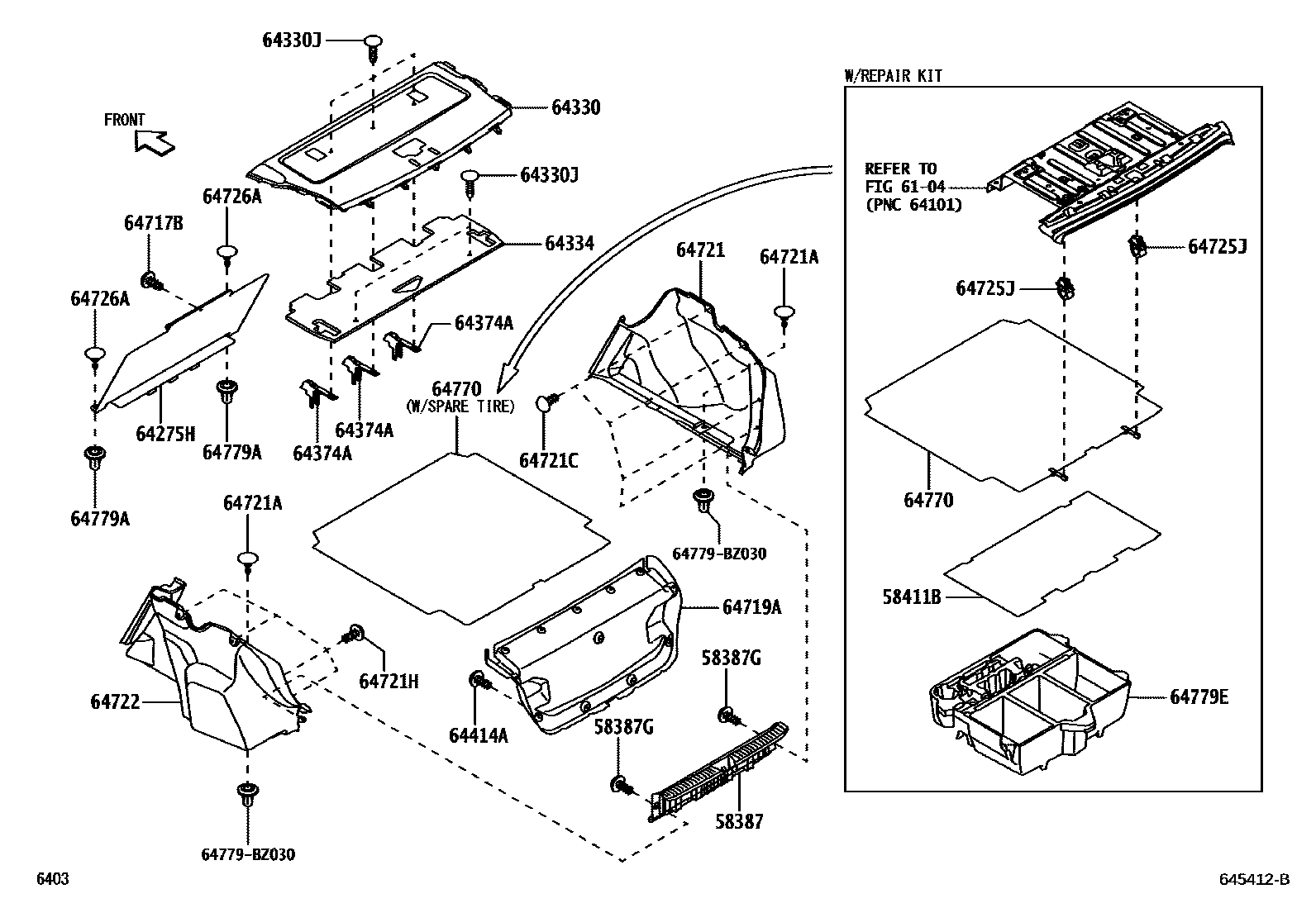

Toyota VIOS/YARIS/YARISATIV — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-BZ030-C1iNGC100202208

BLACK,TRIM2#,4#

main58387-BZ030-C1iNGC100202208

BLACK,TRIM2#

main58387-BZ030-C1iNGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#,3#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,3#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,4#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#

58411BBOARD, DECK, NO.1

main58411-BZ040-C1iNGC100202208

BLACK,TRIM2#,3#

main58411-BZ040-C1iNGC102..MA202303

BLACK,TRIM2#

6104

64275HCOVER, ROOM PARTITION, NO.1

main64275-BZ010-C1iNGC100202208

BLACK,TRIM2#,3#

main64275-BZ010-C1iNGC100202208

BLACK,TRIM2#,4#

main64275-BZ010-C1iNGC100202208

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-BZ090-C1iNGC100202208

BLACK,TRIM2#,3#

main64330-BZ090-C1iNGC100202208

BLACK,TRIM2#,4#

main64330-BZ090-C1iNGC100202208

BLACK,TRIM2#

main64330-BZ100-C1iNGC102..MA202303

BLACK,TRIM2#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-T0046-C1iNGC100202208

BLACK,TRIM2#,3#

main90467-T0046-C1iNGC100202208

BLACK,TRIM2#,4#

main90467-T0046-C1iNGC100202208

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-BZ010iNGC10#202208

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-BZ010iNGC10#202208

64414ACLIP, LUGGAGE COMPARTMENT DOOR PANEL

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,3#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,4#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,3#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,4#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-BZ010-C1iNGC100202208

BLACK,TRIM2#,3#

main64719-BZ010-C1iNGC100202208

BLACK,TRIM2#,4#

main64719-BZ010-C1iNGC100202208

BLACK,TRIM2#

main64719-BZ020-C1iNGC102..MA202303

BLACK,TRIM2#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-BZ010-C1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L)202208

GRADE PACKAGE-LO(TH),BLACK,TRIM2#

main64721-BZ010-C1iNGC101,102..M..GCC202208

BLACK,TRIM2#,4#

main64721-BZ010-C1iNGC101,102..M..GCC202208

BLACK,TRIM2#

main64721-BZ020-C1iNGC100202208

BLACK,TRIM2#,4#

main64721-BZ020-C1iNGC100202208

BLACK,TRIM2#

main64721-BZ020-C1iNGC101..RHD..M;NGC101..LHD..H;NGC102..H..GCC;NGC101..5F..M..GEN;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#,3#

main64721-BZ070-C1iNGC102..MA202303

BLACK,TRIM2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main64726-0D020iNGC10#¥170202208

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,3#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,4#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,3#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#,4#

main90467-T0045-C0iNGC100202208

BLACK,TRIM2#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-BZ010-C1iNGC101,102..M..GCC202208

BLACK,TRIM2#,4#

main64722-BZ010-C1iNGC101,102..M..GCC202208

BLACK,TRIM2#

main64722-BZ010-C1iNGC101,102..M..GCC202208

GRADE PACKAGE-LO(TH),BLACK,TRIM2#

main64722-BZ020-C1iNGC101..RHD..H;NGC101..5F..PHL;NGC102..LHD..(H,M)..(GEN,PHL);NGC101..LHD..CVT..M..(GEN,PHL)202208

BLACK,TRIM2#,3#

main64722-BZ020-C1iNGC100202208

BLACK,TRIM2#,4#

main64722-BZ020-C1iNGC100202208

BLACK,TRIM2#

main64722-BZ070-C1iNGC102..MA202303

BLACK,TRIM2#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main58492-BZ010iNGC100,102..MA,TH202208

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D020iNGC10#¥170202208

64770COVER ASSY, SPARE WHEEL

main64770-BZ040-C1iNGC102..MA202303

BLACK,TRIM2#

main64770-BZ040-C1iNGC100202208

BLACK,TRIM2#,3#

main64770-BZ050-C1iNGC102..LHD..H..(GEN,PHL)202208

BLACK,TRIM2#,4#

main64770-BZ050-C1iNGC102..LHD..H..(GEN,PHL)202208

BLACK,TRIM2#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

BLACK,TRIM2#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

BLACK,TRIM2#,4#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

SINGAPORE,BLACK,TRIM2#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

SRI LANKA&GRADE PACKAGE-MID(SRI LANKA),BLACK,TRIM2#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

SRI LANKA&GRADE PACKAGE-HI(SRI LANKA),BLACK,TRIM2#

main64770-BZ070-C1iNGC102..RHD..CVT..H..GEN202208

MEXICO,BLACK,TRIM2#

64779ASTOPPER, SPARE WHEEL COVER

main64779-BZ030iNGC10#202208

64779ETRAY, SPARE WHEEL COVER

main64779-BZ021iNGC100,102..MA,TH202208

64779BZ030TRAY, SPARE WHEEL COVER

main64779-BZ030

23 parts on this diagram · 1 diagram in section
