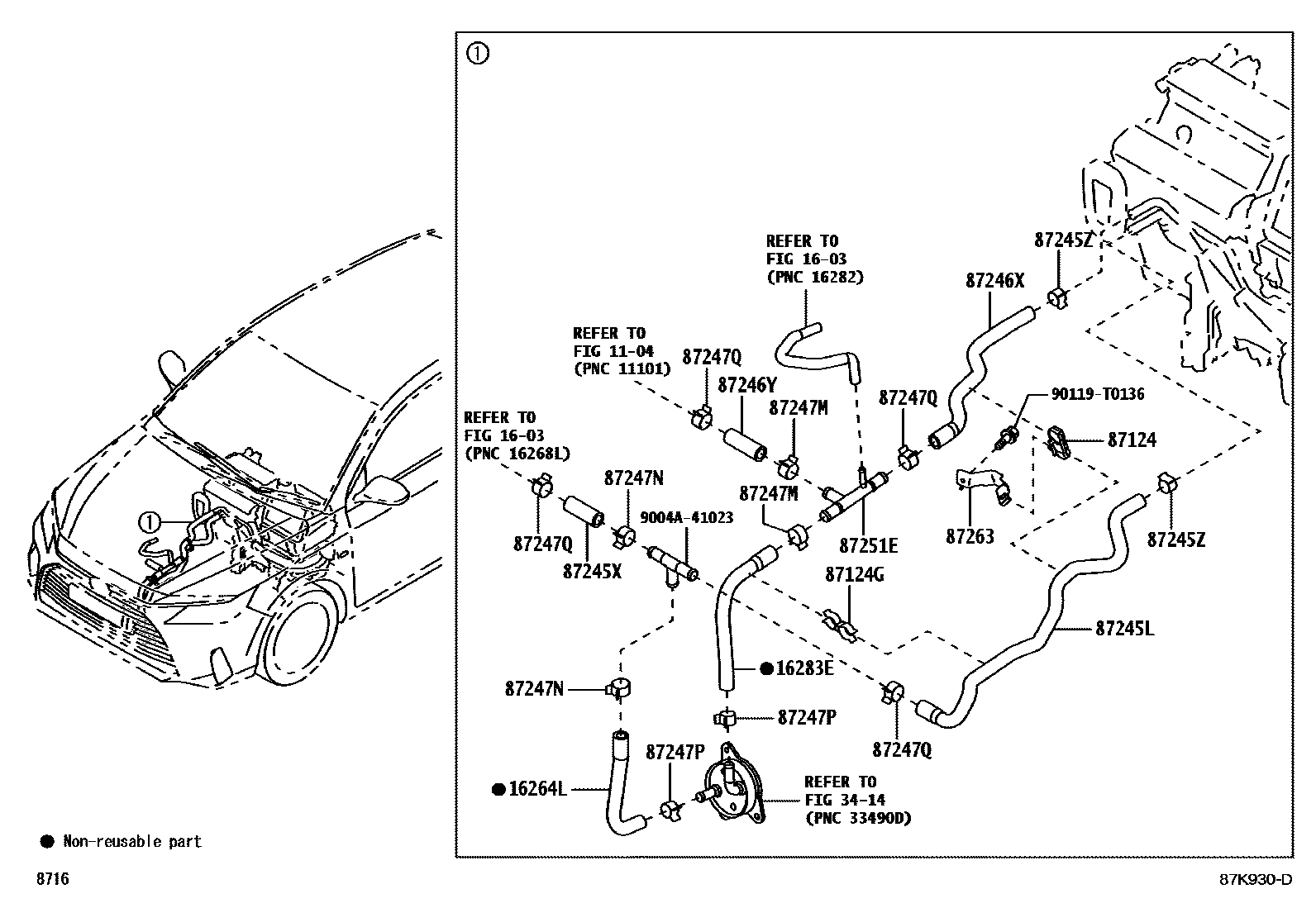

Toyota VIOS/YARIS/YARISATIV — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104

1603

16264LHOSE, WATER BY-PASS, NO.2

main16264-BZ240i1NRVE..NGC101..CVT..(GCC,GEN);2NRVE..NGC102..LHD..CVT..(GCC,GEN)202208

NEPAL

main16264-BZ240i1NRVE..NGC101..CVT..(GCC,GEN);2NRVE..NGC102..LHD..CVT..(GCC,GEN)202208

BANGLADESH

16283EHOSE, WATER BY-PASS, NO.6

main16261-BZ440i1NRVE..NGC101..CVT..(GCC,GEN);2NRVE..NGC102..LHD..CVT..(GCC,GEN)202208

NEPAL

main16261-BZ440i1NRVE..NGC101..CVT..(GCC,GEN);2NRVE..NGC102..LHD..CVT..(GCC,GEN)202208

BANGLADESH

3414

87124CLAMP, HEATER

main87124-B2080iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)¥220202208

NEPAL

main87124-B2080iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)¥220202208

BANGLADESH

87124GCLAMP, HEATER HOSE, NO.2

main87124-BZ150iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

NEPAL

main87124-BZ150iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

BANGLADESH

87245LHOSE, HEATER WATER, L

main87245-BZ380iNGC101..RHD202208

NEPAL

main87245-BZ380iNGC101..RHD202208

BANGLADESH

main87245-BZ390iNGC101,102..LHD..CVT..(GCC,GEN)202208

main87245-BZ410iNGC101,102..LHD..5F..GEN202208

87245XHOSE, HEATER WATER

main87242-BZ060iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=64

main87242-BZ060iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=64,NEPAL

main87242-BZ060iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=64,BANGLADESH

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90466-T0017iNGC101,NYC100..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

NEPAL

main90466-T0017iNGC101,NYC100..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

BANGLADESH

87246XHOSE, HEATER WATER

main87246-BZ320iNGC101..RHD202208

L=284

main87246-BZ320iNGC101..RHD202208

L=284,NEPAL

main87246-BZ320iNGC101..RHD202208

L=284,BANGLADESH

main87246-BZ330iNGC101,102..LHD..CVT..(GCC,GEN)202208

L=309

main87246-BZ350iNGC101,102..LHD..5F..GEN202208

L=366.6

87246YHOSE, HEATER WATER

main87243-BZ050iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=70

main87243-BZ050iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=70,NEPAL

main87243-BZ050iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

L=70,BANGLADESH

87247MCLIP, HOSE

main96136-42501iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)¥200202208

NEPAL

main96136-42501iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)¥200202208

BANGLADESH

87247NCLIP, HOSE

main96136-42501iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)¥200202208

NEPAL

main96136-42501iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)¥200202208

BANGLADESH

87247PCLIP, HOSE

main90466-T0017iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

NEPAL

main90466-T0017iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

BANGLADESH

87247QCLIP, HOSE

main90466-T0020iNYC100..GEN;NGC101,102..LHD..5F..GEN202208

NEPAL

main90466-T0020iNYC100..GEN;NGC101,102..LHD..5F..GEN202208

BANGLADESH

87251EJOINT, WATER, NO.2

main87251-BZ020iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

NEPAL

main87251-BZ020iNGC101..CVT..(GCC,GEN);NGC102..LHD..CVT..(GCC,GEN)202208

BANGLADESH

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-BZ020iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

NEPAL

main87263-BZ020iNGC101..GCC,GEN;NGC102..LHD..(GCC,GEN)202208

BANGLADESH

9004A41023

main9004A-41023

90119T0136

main90119-T0136

20 parts on this diagram · 2 diagrams in section
