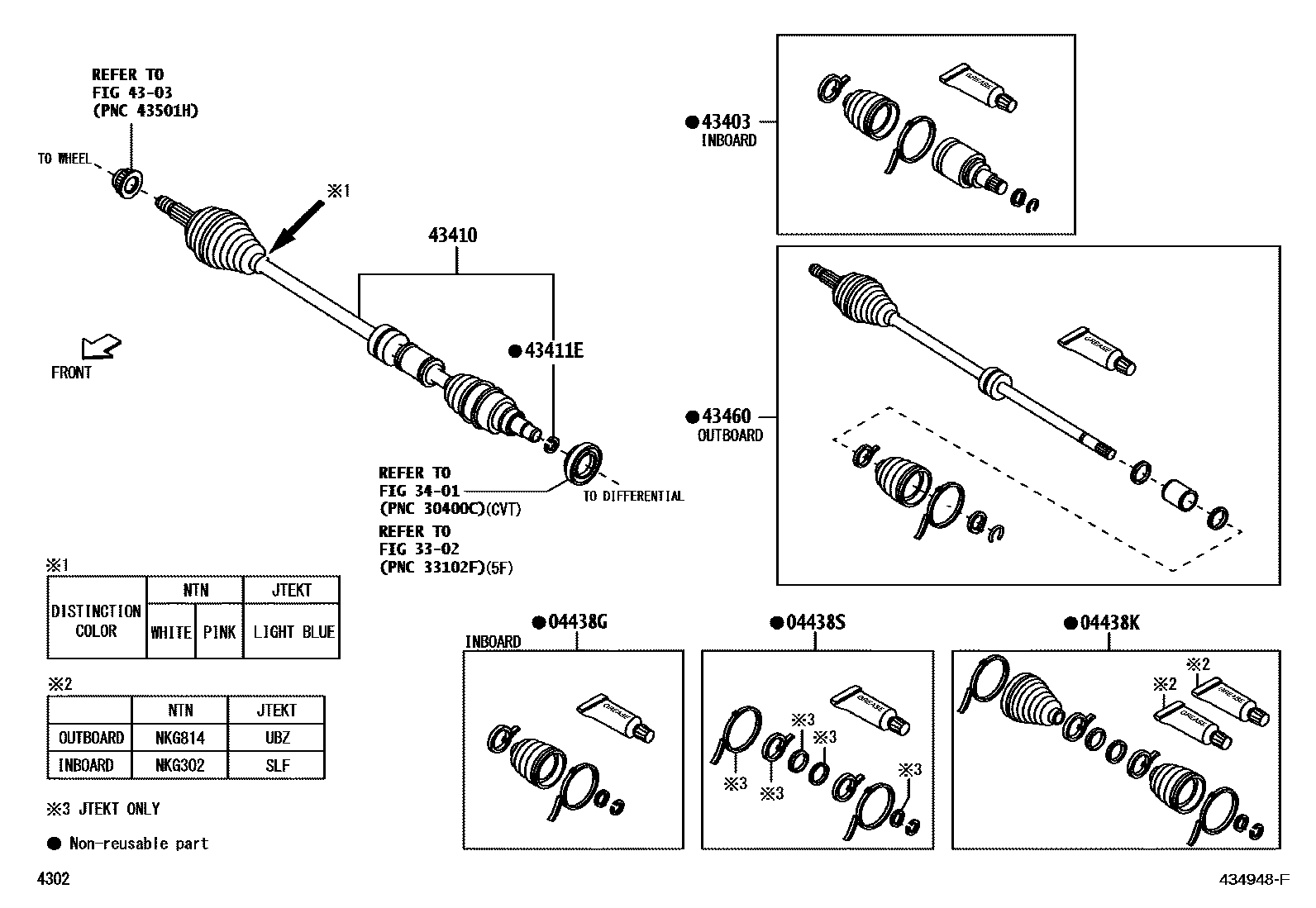

Toyota VIOS/YARIS/YARISATIV — FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2340iNGC100202208

main04437-BZ060iNGC101,102..THP202208-202409

JTEKT

sub04437-BZ061

main04437-BZ070iNGC101,102..THP202409

NTN

main04437-BZ080iNGC102..MA202303-202412

main04438-BZ070iNGC102..MA202412

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B2270iNGC101,102..THP202208-202409

JTEKT

main04425-B2290iNGC100202208

main04425-BZ080iNGC102..MA202303-202411

main04425-BZ180iNGC101,102..THP202409

NTN

main04425-BZ210iNGC102..MA202412

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2350iNGC100202208

main04435-B2360iNGC101,102..THP202208-202409

JTEKT

main04435-BZ090iNGC102..MA202303-202411

main04435-BZ180iNGC101,102..THP202409

NTN

main04435-BZ210iNGC102..MA202412

3302

3401

4303

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9590iNGC101,102..THP202208-202409

JTEKT

sub43408-B9591

main43408-B9620iNGC102..MA202303-202411

main43408-B9630iNGC102..MA202412

main43408-B9660iNGC101,102..THP202409

NTN

main43408-B9780iNGC100202208

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-BZ240iNGC100202208

NTN

main43410-BZ250iNGC101,102..THP202208-202409

JTEKT

sub43410-BZ380

main43410-BZ260iNGC102..MA202412

GKN

main43410-BZ320iNGC102..MA202303-202411

GKN

main43410-BZ380iNGC101,102..THP202409

NTN

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-BZ080iNGC102..MA202303

main43425-BZ120iNGC101,102..THP202208-202409

JTEKT

main90045-20298iNGC100¥300202208

main90045-20298iNGC101,102..THP¥300202409

NTN

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9750iNGC100202208

main43411-B9760iNGC101,102..THP202208-202409

JTEKT

main43411-B9770iNGC102..MA202303-202411

main43411-B9775iNGC102..MA202412

main43411-B9855iNGC101,102..THP202409

NTN

10 parts on this diagram · 4 diagrams in section
