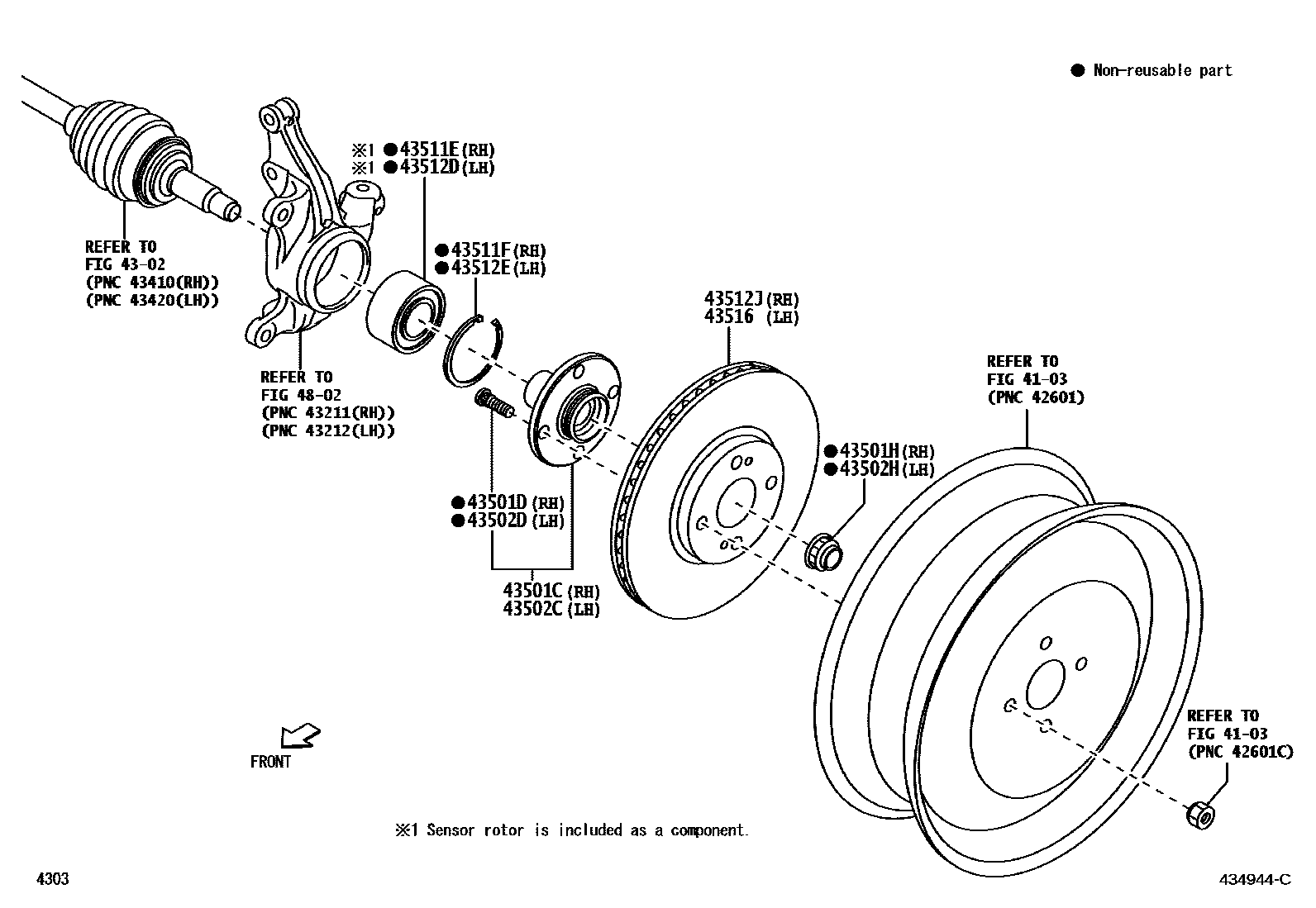

Toyota VIOS/YARIS/YARISATIV — FRONT AXLE HUB
4103
4302
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43511EBEARING (FOR FRONT AXLE HUB RH)
W/SENSOR ROTOR
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43512DBEARING (FOR FRONT AXLE HUB LH)
W/SENSOR ROTOR
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43512JDISC, FRONT RH
43516DISC, FRONT LH
4802
15 parts on this diagram · 1 diagram in section
