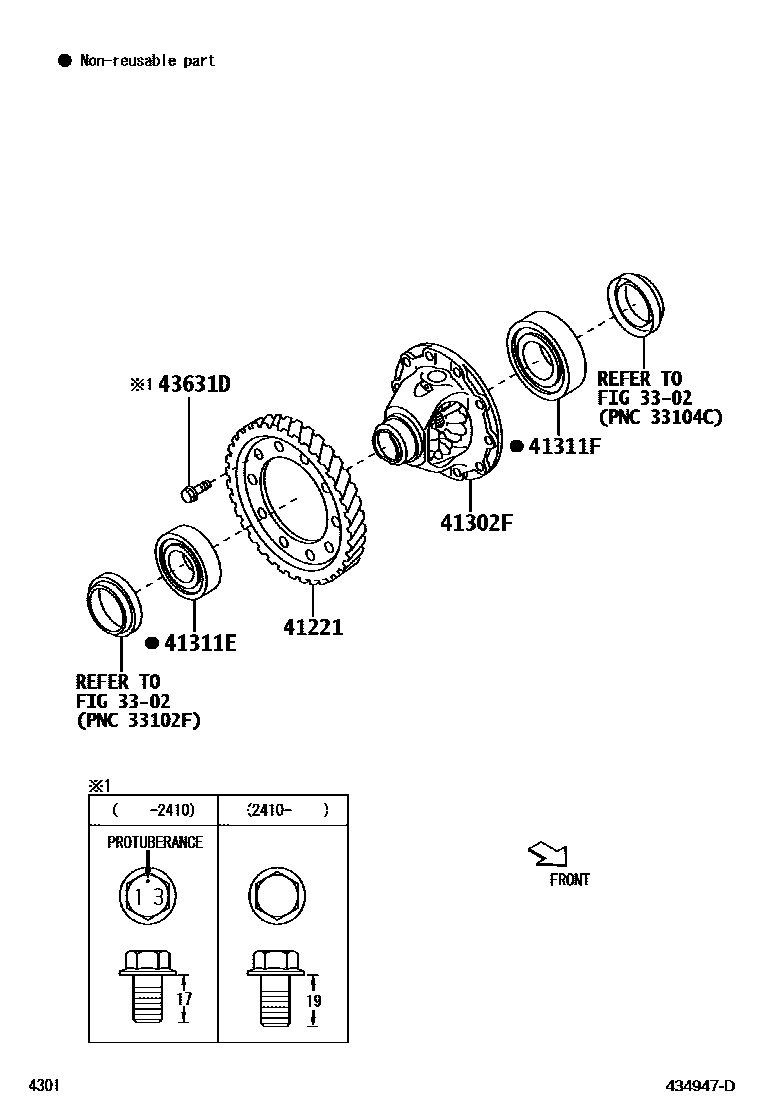

Toyota VIOS/YARIS/YARISATIV — FRONT AXLE HOUSING & DIFFERENTIAL

3302

41221GEAR, FRONT DIFFERENTIAL RING

main41221-BZ300iNGC102..5F202208-202410

sub41221-BZ301

main41221-BZ301iNGC102..5F202410

main41221-BZ320iNGC101..5F202208-202410

sub41221-BZ321

main41221-BZ321iNGC101..5F202410

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-BZ060iNGC101..5F202208

main41301-BZ070iNGC102..5F202208

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main9004A-36123iNGC101,102..5F202208

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main9004A-36124iNGC101,102..5F202208

43631DBOLT, HEXAGON (FOR DIFFERENTIAL CASE)

main9004A-10120iNGC101,102..5F202208-202410

main9004A-10296iNGC101,102..5F202410

6 parts on this diagram · 1 diagram in section
