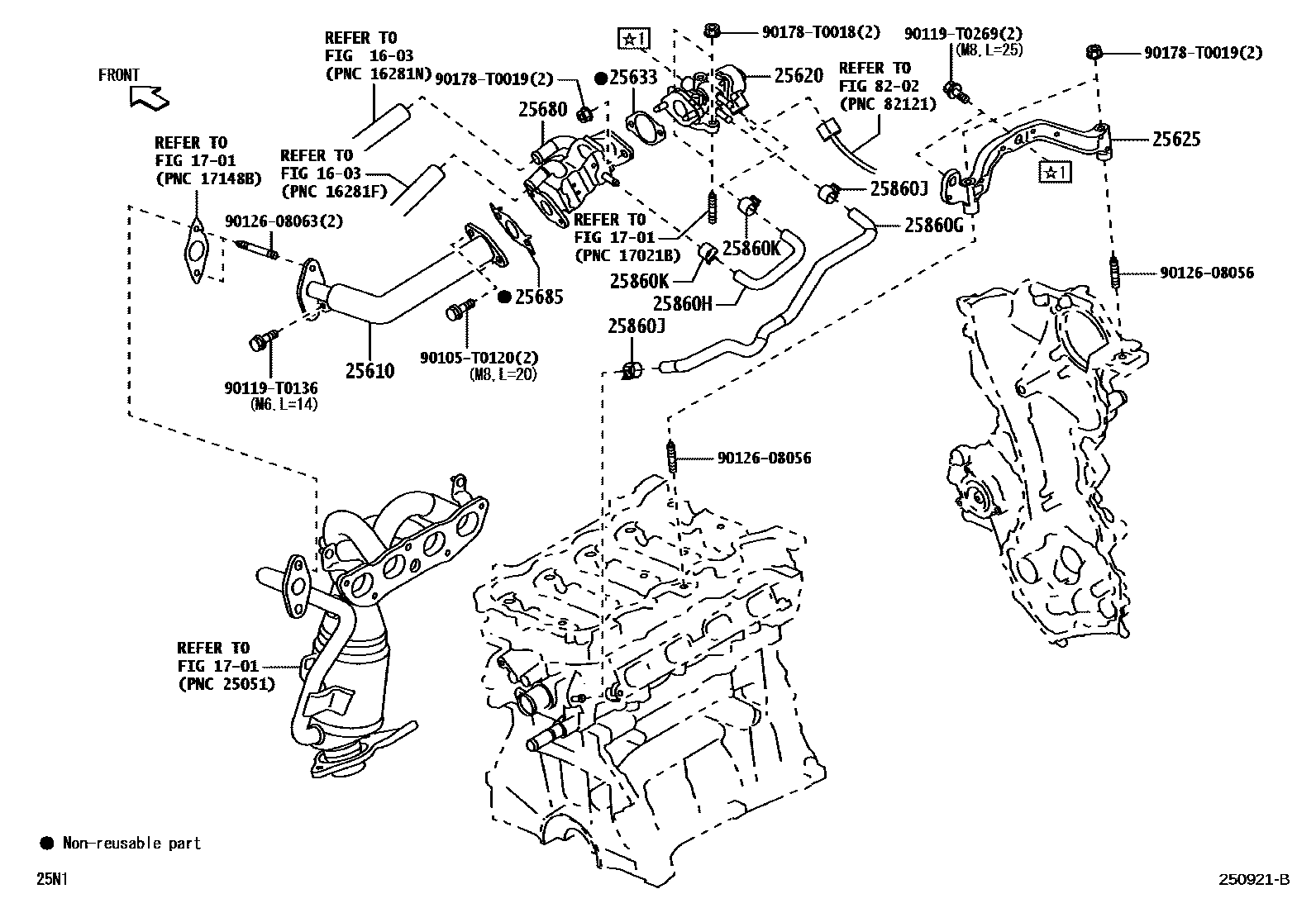

Toyota VIOS/YARIS/YARISATIV — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25610PIPE ASSY, EGR

main25610-0Y040i3NRVE..NGC100202208

25620VALVE ASSY, EGR

main25620-47060i3NRVE..NGC100¥18,400202208

25625BRACKET, EGR VALVE

main25625-0Y040i3NRVE..NGC100202208

25633GASKET, EGR VALVE

main25633-0Y030i3NRVE..NGC100202208

25680COOLER ASSY, EGR

main25680-0Y010i3NRVE..NGC100202208

25685GASKET, EGR COOLER, NO.1

main25685-0Y050i3NRVE..NGC100202208

25860GHOSE, WATER BY-PASS HOSE NO.1(FOR EGR COOLER)

main16264-0Y040i3NRVE..NGC100202208

25860HHOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER)

main16267-0Y230i3NRVE..NGC100202208

25860JHOSE, CLIP NO.1(FOR EGR COOLER)

main90466-T0015i3NRVE..NGC100202208

25860KHOSE, CLIP NO.2(FOR EGR COOLER)

main90466-T0015i3NRVE..NGC100202208

8202

90105T0120

main90105-T0120

90119T0136

main90119-T0136

90119T0269

main90119-T0269

9012608056

main90126-08056¥120

9012608063

main90126-08063¥80

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

20 parts on this diagram · 1 diagram in section
