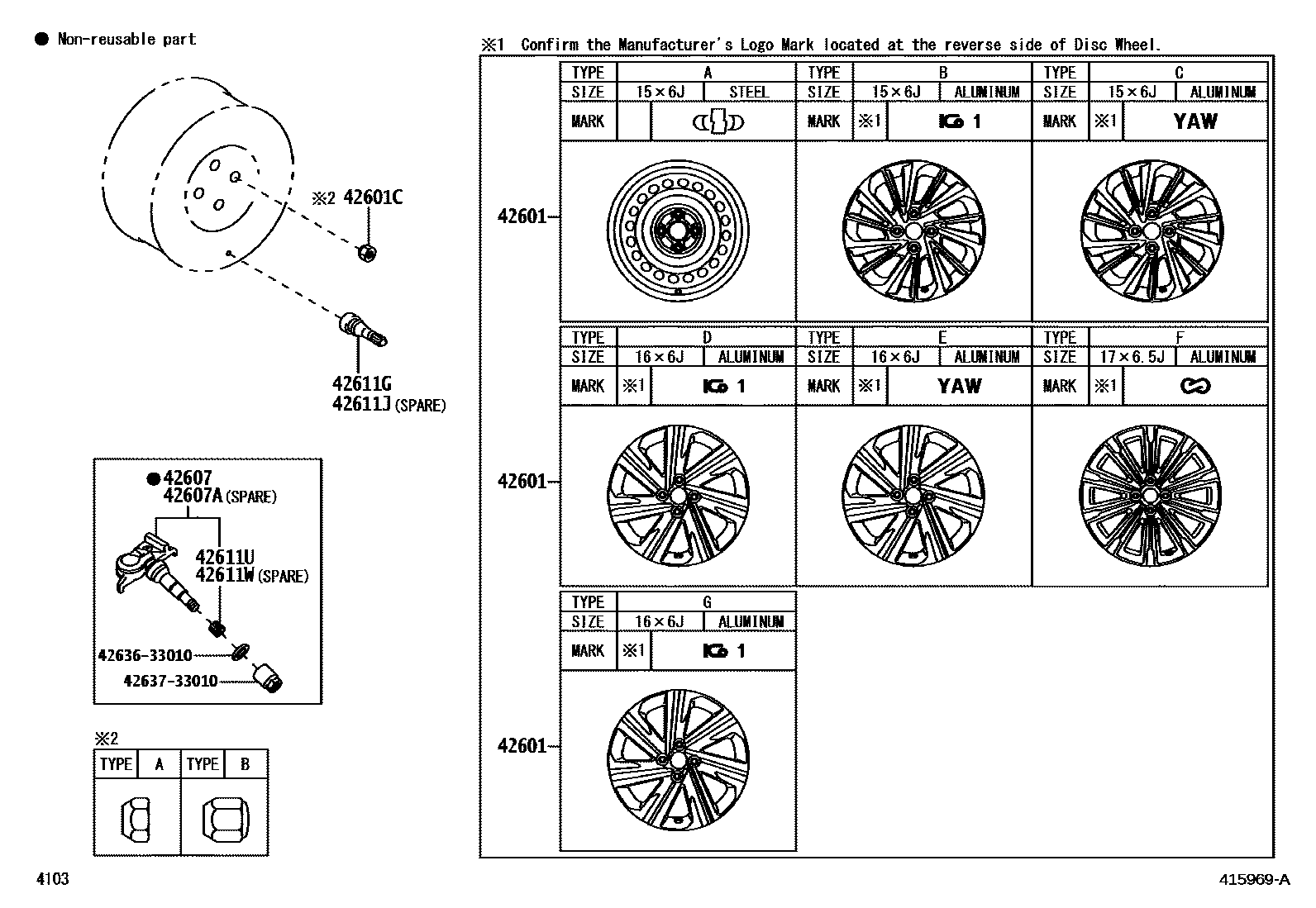

Toyota VIOS/YARIS/YARISATIV — DISC WHEEL & WHEEL CAP

0001 1WHEEL 0002 1WHEEL 0003 1WHEEL(SPARE) 0004 1ORNAMENT, WHEEL CAP 0005 1 0006 1

42601WHEEL, DISC

main42611-BZD40iNGC102..H..MA202303

17X6.5J(AL),TYPE I

main42611-BZD50iNGC102..M..MA202303

16X6J(AL),TYPE H

main42611-BZG20iNGC101,102..L;NGC101,102..M..GCC202208

15X6J(ST),TYPE A BLACK

main42611-BZG20iNGC100202208

15X6J(ST),SRI LANKA&GRADE PACKAGE-MID(SRI LANKA),TYPE A BLACK

main42611-BZG30iNGC100202208

15X6J(AL),SRI LANKA&GRADE PACKAGE-HI(SRI LANKA),TYPE B

main42611-BZG30iNGC100202208

15X6J(AL),MEXICO,TYPE B

main42611-BZG30iNGC102..LHD..M..GEN202208

15X6J(AL),TYPE B

main42611-BZG40iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),TYPE D

main42611-BZG40iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),SINGAPORE,TYPE D

main42611-BZG40iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),MEXICO,TYPE D

main42611-BZG40iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),MEXICO&W/O LATIN NCAP PACKAGE,TYPE D

main42611-BZG40iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA),TYPE D

main42611-BZG50iNGC102..CVT..H..GEN202208

17X6.5J(AL),TYPE F

main42611-BZK00iNGC102..RHD..M..GEN202208

15X6J(AL),SRI LANKA&GRADE PACKAGE-HI(SRI LANKA),TYPE C

main42611-BZK00iNGC102..RHD..M..GEN202208

15X6J(AL),MEXICO,TYPE C

main42611-BZK00iNGC101..M..GEN202208

15X6J(AL),TYPE C

main42611-BZK10iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),MEXICO&W/O LATIN NCAP PACKAGE,TYPE E

main42611-BZK10iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),TYPE E

main42611-BZK10iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),SINGAPORE,TYPE E

main42611-BZK10iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),MEXICO,TYPE E

main42611-BZK10iNGC101..PHL;NGC102..5F..(H,M)202208

16X6J(AL),GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA),TYPE E

42601CNUT, HUB (FOR AXLE)

main90049-11063iNGC101,102..H..GCC;NGC10#..(H,M)..(GEN,MA,PHL,TH)¥160202208

TYPE B

main90049-11063iNGC101,102..H..GCC;NGC10#..(H,M)..(GEN,MA,PHL,TH)¥160202208

GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA),TYPE B

main90942-01007iNGC101,102..L;NGC101,102..M..GCC¥230202208

TYPE A

main90942-01007iNGC101,102..L;NGC101,102..M..GCC¥230202208

GRADE PACKAGE-MID(SRI LANKA),TYPE A

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iNGC102..CVT..L;NGC101,102..GCC¥6,500202208

MEXICO

main42607-12020iNGC102..CVT..L;NGC101,102..GCC¥6,500202208

MEXICO&W/O LATIN NCAP PACKAGE

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-12020iNGC102..CVT..L;NGC101,102..GCC¥6,500202208

MEXICO

main42607-12020iNGC102..CVT..L;NGC101,102..GCC¥6,500202208

MEXICO&W/O LATIN NCAP PACKAGE

42611GVALVE (FOR TUBELESS TIRE)

main90080-94031iNGC102..RHD..M..GEN202208

SINGAPORE

main90080-94031iNGC102..RHD..M..GEN202208

SRI LANKA&GRADE PACKAGE-MID(SRI LANKA)

main90080-94031iNGC102..RHD..M..GEN202208

SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94031iNGC102..5F..L;NGC101..GEN,PHL;NGC102..(H,M)..(GEN,PHL)202208

SRI LANKA&GRADE PACKAGE-MID(SRI LANKA)

main90080-94031iNGC102..5F..L;NGC101..GEN,PHL;NGC102..(H,M)..(GEN,PHL)202208

SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)

42611UCAP, TIRE VALVE

main90942-05039iNGC102..CVT..L;NGC101,102..GCC¥90202208

MEXICO

main90942-05039iNGC102..CVT..L;NGC101,102..GCC¥90202208

MEXICO&W/O LATIN NCAP PACKAGE

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05039iNGC102..CVT..L;NGC101,102..GCC¥90202208

MEXICO

main90942-05039iNGC102..CVT..L;NGC101,102..GCC¥90202208

MEXICO&W/O LATIN NCAP PACKAGE

4263633010WASHER, TIRE VALVE

main42636-33010¥60

4263733010NUT, YIRE TUBE

main42637-33010¥140

10 parts on this diagram · 6 diagrams in section
