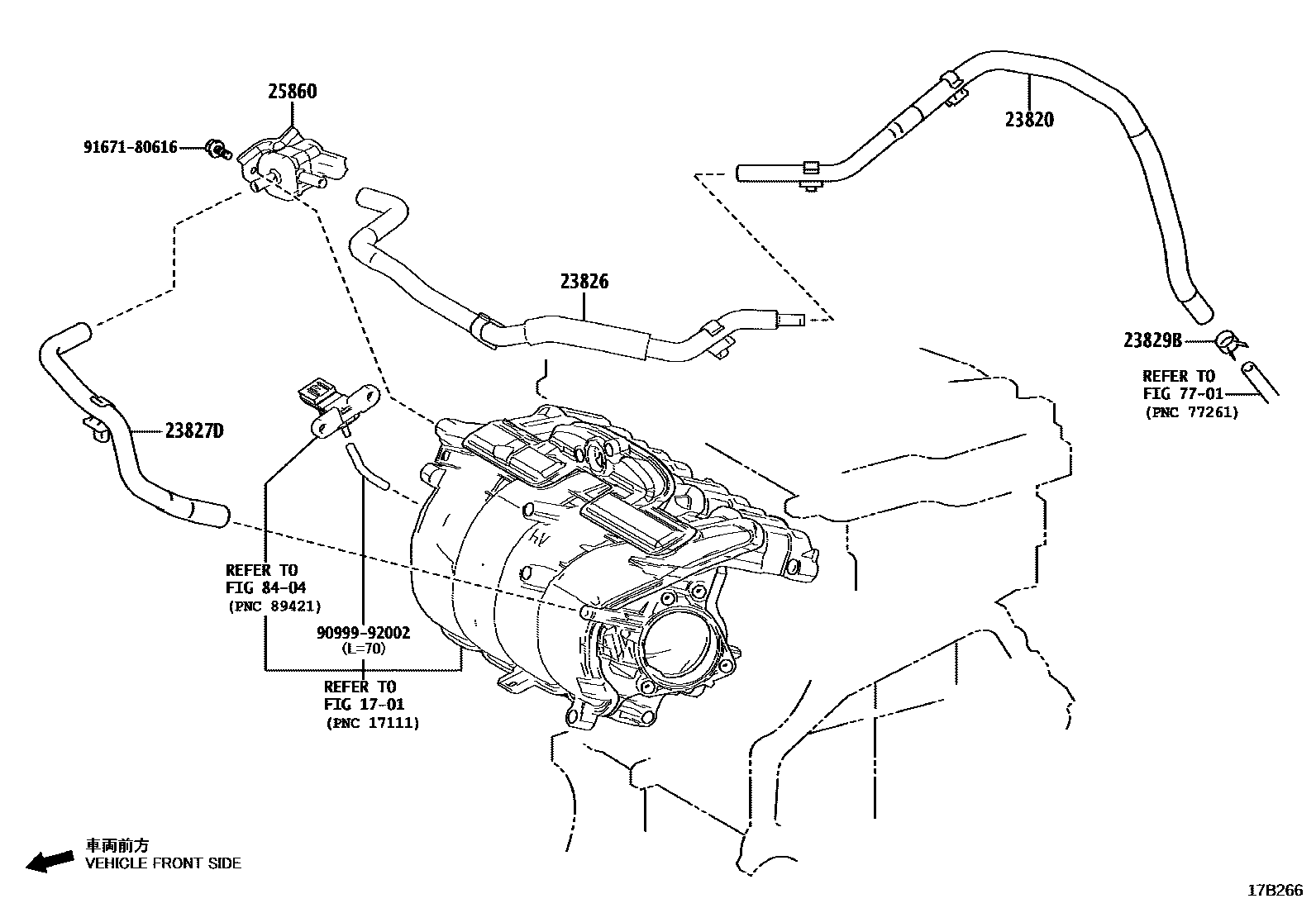

Toyota VENZA — VACUUM PIPING

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25110iA25AFXS..AXUH85¥5,500202007-202112

sub23820-25390¥4,970

main23820-25390iA25AFXS..AXUH85¥4,970202201-202408

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AXUH85¥2,480202007-202408

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AXUH85¥1,590202007-202408

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41801iA25AFXS..AXUH85¥160202007-202408

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AXUH85¥3,480202007-202408

7701

8404

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 1 diagram in section
