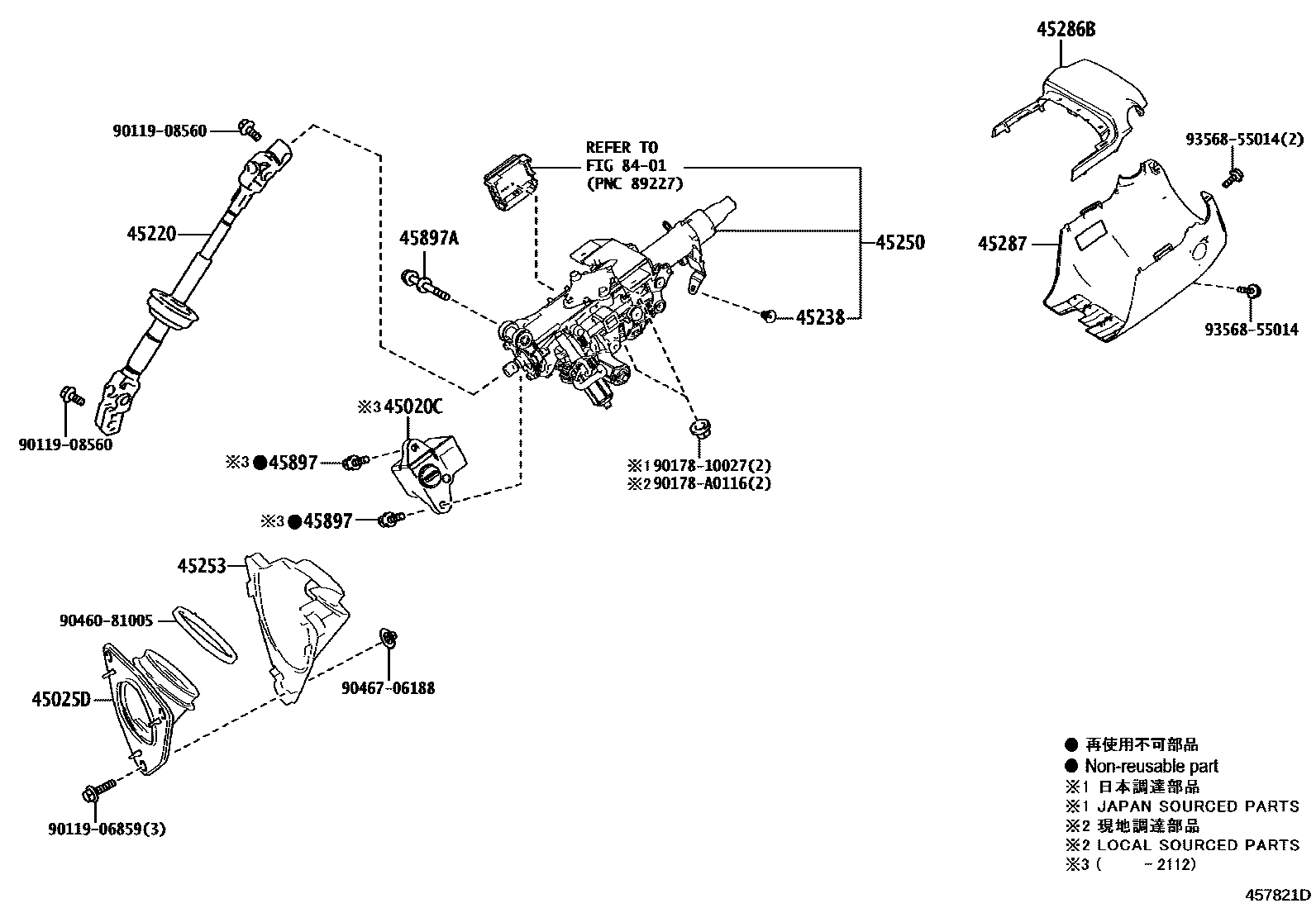

Toyota VENZA — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48120iAXUH85¥14,300202007-202112

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42090iAXUH85¥2,750202007-202408

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42010iAXUH85202007-202408

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXUH85¥70202007-202408

45250COLUMN ASSY, STEERING

main45250-48420iAXUH85¥101,000202007-202408

45253COVER, STEERING COLUMN HOLE

main45253-42030iAXUH85¥720202007-202408

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#

main45286-33290-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-33240-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#

main45024-33240-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iAXUH85¥210202007-202112

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXUH85¥190202007-202408

8401

9011906859

main90119-06859¥130

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

90178A0116

main90178-A0116

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

9356855014

main93568-55014¥70

18 parts on this diagram · 1 diagram in section
