Toyota VENZA — REAR SEAT & SEAT TRACK

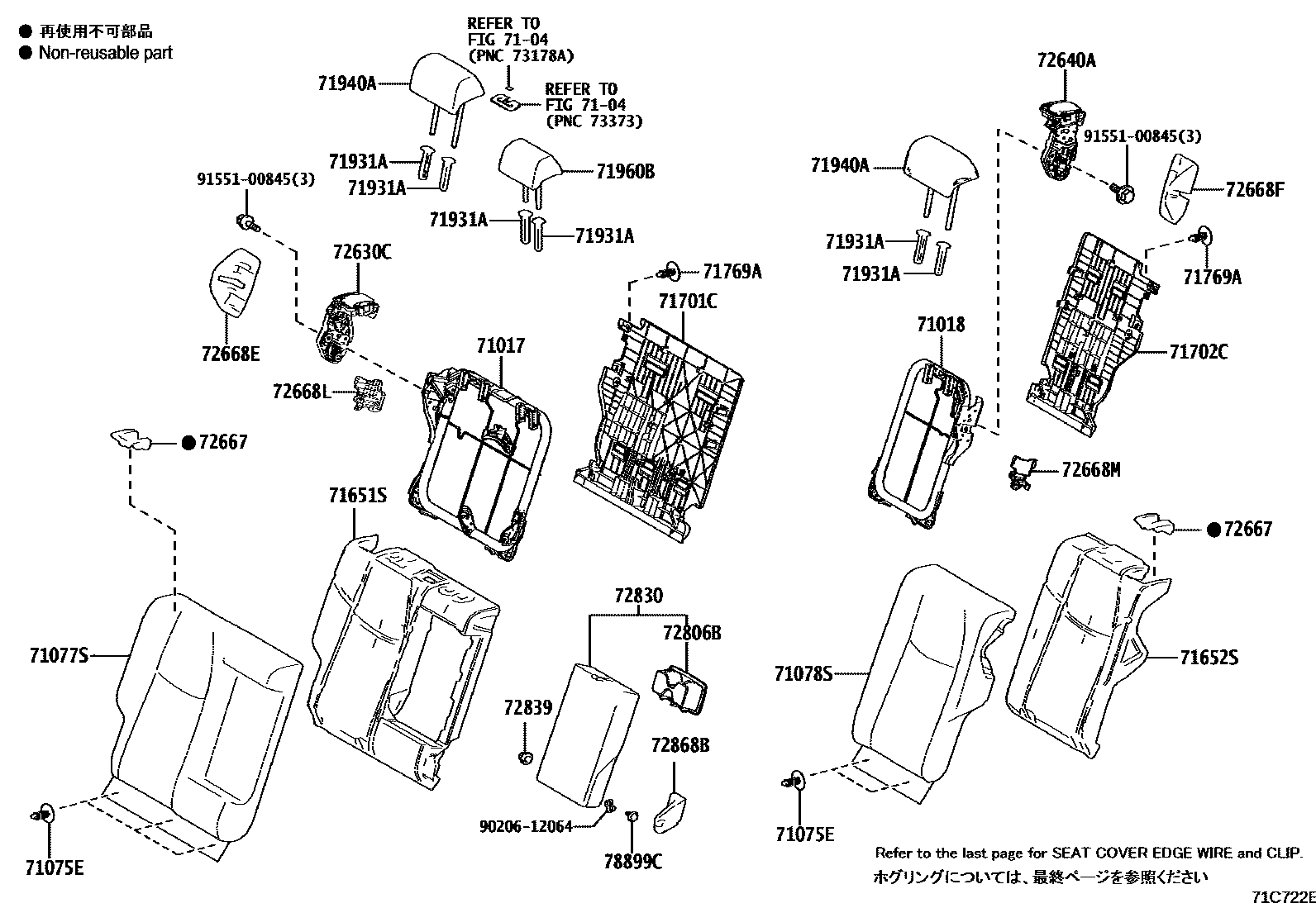

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48270i¥19,900202007-202210
main71017-48320i¥18,100202210-202408
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-48210i¥11,700202007-202210
main71018-48210i¥11,700202210-202408
7104
71075ECLIP(FOR REAR SEAT)
main90467-07080-C0i202007-202210
BLACK
sub90467-07080¥140
main90467-07080-C0i202112-202210
BLACK
sub90467-07080¥140
main90467-07080-C0i202210-202403
BLACK
sub90467-07080¥140
main90467-07080-C0i202403-202408
BLACK
sub90467-07080¥140
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48K40-B2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48K40-B3i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48K40-B3i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48K40-B4i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48K40-C1i202007-202112
BLACK/GRAY,TRIM2#
main71077-48K40-C2i202210-202403
BLACK/GRAY,TRIM2#
main71077-48K40-C2i202112-202210
BLACK/GRAY,TRIM2#
main71077-48K40-C3i202404-202408
BLACK/GRAY,TRIM2#
main71077-48K60-B2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48K60-C2i202007-202112
BLACK/GRAY,TRIM2#
main71077-48K60-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71077-48K70-20i202404-202408
LEATHER PACKAGE,BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-20i202404-202408
BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-21i202404-202408
BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-21i202404-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-B3i202007-202112
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B3i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B4i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B4i202112-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B5i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B5i202210-202403
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B6i202404-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-B6i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
sub71077-48K70
main71077-48K70-C4i202007-202112
BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C4i202007-202112
"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C5i202007-202112
"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-C5i202007-202112
BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-C6i202112-202210
BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C6i202112-202210
"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C7i202112-202210
BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-C7i202112-202210
"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-C8i202210-202403
LEATHER PACKAGE,BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C8i202210-202403
BLACK/GRAY,TRIM2#
sub71077-48K70
main71077-48K70-C9i202210-202403
BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48K70-C9i202210-202403
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
sub71077-48K70
main71077-48T50-B1i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48T50-B1i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48T50-B3i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
main71077-48T50-C1i202210-202403
BLACK/GRAY,TRIM2#
main71077-48T50-C1i202112-202210
BLACK/GRAY,TRIM2#
main71077-48T50-C2i202210-202403
BLACK/CAMEL,TRIM4#
main71077-48T50-C2i202112-202210
BLACK/CAMEL,TRIM4#
main71077-48T50-C4i202404-202408
BLACK/GRAY,TRIM2#
main71077-48T50-C5i202404-202408
BLACK/CAMEL,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-48J50-B2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48J50-B3i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48J50-B3i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48J50-B4i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48J50-C1i202007-202112
BLACK/GRAY,TRIM2#
main71078-48J50-C2i202112-202210
BLACK/GRAY,TRIM2#
main71078-48J50-C2i202210-202403
BLACK/GRAY,TRIM2#
main71078-48J50-C3i202404-202408
BLACK/GRAY,TRIM2#
main71078-48J70-B2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48J70-C2i202007-202112
BLACK/GRAY,TRIM2#
main71078-48J70-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71078-48J80-B2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B2i202007-202112
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B3i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B3i202112-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B4i202210-202403
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B4i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B5i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-B5i202404-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
sub71078-48J80
main71078-48J80-C2i202007-202112
BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C2i202007-202112
"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C3i202007-202112
"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C3i202007-202112
BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C4i202112-202210
BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C4i202112-202210
"LEATHER PACKAGE"*(S),BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C5i202112-202210
"LEATHER PACKAGE"*(S),BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C5i202112-202210
BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C6i202210-202403
BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C6i202210-202403
LEATHER PACKAGE,BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C7i202210-202403
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C7i202210-202403
BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C8i202404-202408
LEATHER PACKAGE,BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C8i202404-202408
BLACK/GRAY,TRIM2#
sub71078-48J80
main71078-48J80-C9i202404-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48J80-C9i202404-202408
BLACK/CAMEL,TRIM4#
sub71078-48J80
main71078-48S60-B0i202210-202403
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48S60-B0i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48S60-B2i202404-202408
MEDIUM GRAY/BEIGE,TRIM1#
main71078-48S60-C0i202112-202210
BLACK/GRAY,TRIM2#
main71078-48S60-C0i202210-202403
BLACK/GRAY,TRIM2#
main71078-48S60-C1i202112-202210
BLACK/CAMEL,TRIM4#
main71078-48S60-C1i202210-202403
BLACK/CAMEL,TRIM4#
main71078-48S60-C3i202404-202408
BLACK/GRAY,TRIM2#
main71078-48S60-C4i202404-202408
BLACK/CAMEL,TRIM4#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48310i¥9,000202007-202210
main71651-48310i¥9,000202210-202408
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-48280i¥7,300202210-202408
main71652-48280i¥7,300202007-202210
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-48010i¥10,700202210-202408
main71701-48010i¥10,700202007-202210
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-48010i¥7,400202210-202408
main71702-48010i¥7,400202007-202210
71769ACLIP, REAR SEATBACK BOARD
main71769-28040i¥80202007-202210
main71769-28040i¥80202210-202408
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202210-202408
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-47050-C5i202007-202210
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-47050-C5i202007-202210
W(LOCK),BLACK,TRIM1#,2#
main71930-47050-C5i202210-202408
W(LOCK),BLACK,TRIM1#,2#
main71931-47030-C4i202210-202408
W/O(LOCK),BLACK,TRIM1#,2#
main71931-47030-C4i202007-202210
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-47030-C4i202007-202210
W/O(LOCK),BLACK,TRIM1#,2#
main71931-47030-C4i202210-202408
W/O(LOCK),BLACK,TRIM1#,2#,4#
71940AHEADREST ASSY, REAR SEAT
main71940-48C60-B1i202210-202408
MEDIUM GRAY,TRIM1#
main71940-48C60-B1i202007-202210
MEDIUM GRAY,TRIM1#
main71940-48C60-C0i202210-202408
BLACK,TRIM2#
main71940-48C60-C0i202007-202210
BLACK,TRIM2#
main71940-48C80-B1i202007-202210
MEDIUM GRAY,TRIM1#
main71940-48C80-B1i202210-202408
MEDIUM GRAY,TRIM1#
main71940-48C80-C0i202007-202210
BLACK,TRIM2#,4#
main71940-48C80-C0i202210-202408
BLACK,TRIM2#,4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48740-B1i202210-202408
MEDIUM GRAY,TRIM1#
main71960-48740-B1i202007-202210
MEDIUM GRAY,TRIM1#
main71960-48740-C0i202007-202210
BLACK,TRIM2#
main71960-48740-C0i202210-202408
BLACK,TRIM2#
main71960-48750-B1i202007-202210
MEDIUM GRAY,TRIM1#
main71960-48750-B1i202210-202408
MEDIUM GRAY,TRIM1#
main71960-48750-C0i202007-202210
BLACK,TRIM2#,4#
main71960-48750-C0i202210-202408
BLACK,TRIM2#,4#
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-48070-C0i202210-202408
BLACK,TRIM1#,2#
main72630-48070-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72630-48070-C0i202007-202210
BLACK,TRIM1#,2#
main72630-48070-C0i202210-202408
BLACK,TRIM1#,2#,4#
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-48020-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72640-48020-C0i202007-202210
BLACK,TRIM1#,2#
main72640-48020-C0i202210-202408
BLACK,TRIM1#,2#,4#
main72640-48020-C0i202210-202408
BLACK,TRIM1#,2#
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-48060-C0i202007-202210
BLACK,TRIM1#,2#
main72667-48060-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72667-48060-C0i202210-202408
BLACK,TRIM1#,2#,4#
main72667-48060-C0i202210-202408
BLACK,TRIM1#,2#
72668EBEZEL, REAR SEATBACK LOCK, LOWER RH
main72668-48030-C0i202007-202210
BLACK,TRIM1#,2#
main72668-48030-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72668-48030-C0i202210-202408
BLACK,TRIM1#,2#,4#
main72668-48030-C0i202210-202408
BLACK,TRIM1#,2#
72668FBEZEL, REAR SEATBACK LOCK, LOWER LH
main72668-48040-C0i202007-202210
BLACK,TRIM1#,2#
main72668-48040-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72668-48040-C0i202210-202408
BLACK,TRIM1#,2#,4#
main72668-48040-C0i202210-202408
BLACK,TRIM1#,2#
72668LBEZEL, REAR SEATBACK LOCK, LOWER RH NO.2
main72668-48050i¥590202007-202210
main72668-48050i¥590202210-202408
72668MBEZEL, REAR SEATBACK LOCK, LOWER LH NO.2
main72668-48060i¥590202007-202210
main72668-48060i¥590202210-202408
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-42020-C0i202210-202408
BLACK,TRIM1#,2#
main72806-42020-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72806-42020-C0i202007-202210
BLACK,TRIM1#,2#
main72806-42020-C0i202210-202408
BLACK,TRIM1#,2#,4#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-48B80-B0i202007-202210
MEDIUM GRAY,TRIM1#
main72830-48B80-B0i202210-202408
MEDIUM GRAY,TRIM1#
main72830-48B80-C0i202007-202210
BLACK,TRIM2#
main72830-48B80-C0i202210-202408
BLACK,TRIM2#
main72830-48B90-B0i202210-202408
MEDIUM GRAY,TRIM1#
main72830-48B90-B0i202007-202210
MEDIUM GRAY,TRIM1#
main72830-48B90-C0i202007-202210
BLACK,TRIM2#,4#
main72830-48B90-C0i202210-202408
BLACK,TRIM2#,4#
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i¥160202210-202408
main72839-22010i¥160202007-202210
72868BCOVER, CENTER ARMREST HINGE
main72868-42040-C0i202210-202408
BLACK,TRIM1#,2#,4#
main72868-42040-C0i202210-202408
BLACK,TRIM1#,2#
main72868-42040-C0i202007-202210
BLACK,TRIM1#,2#,4#
main72868-42040-C0i202007-202210
BLACK,TRIM1#,2#
78899CBOLT, REAR SUB SEAT
main78899-60070i¥100202007-202210
main78899-60070i¥100202210-202408
9020612064
main90206-12064¥100
9155100845
main91551-00845¥100

28 parts on this diagram · 5 diagrams in section

Toyota VENZA REAR SEAT & SEAT TRACK — Parts Diagram | EPC Data
