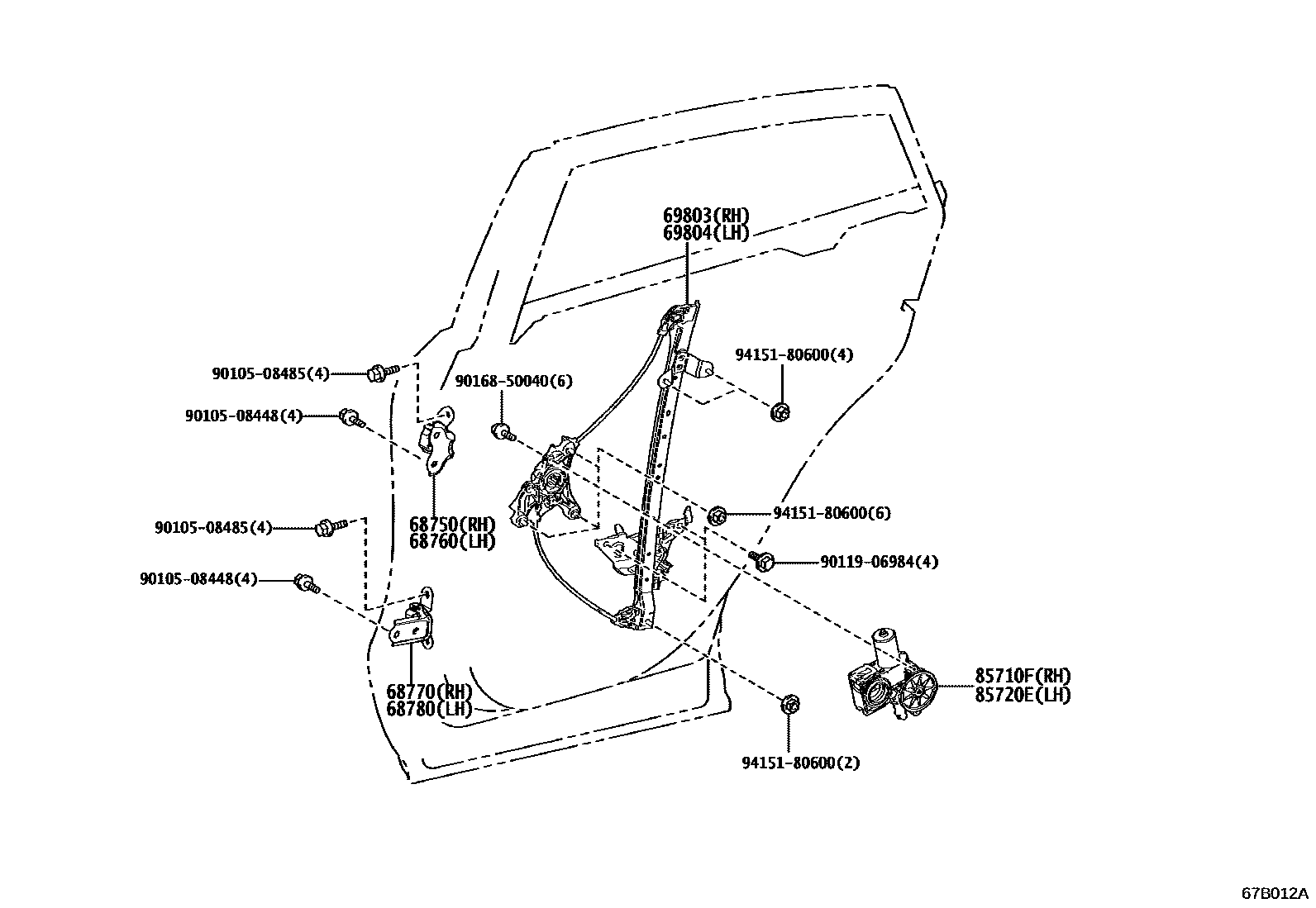

Toyota VENZA — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAXUH85¥1,850202210-202408

main68750-20122iAXUH85¥1,850202007-202210

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAXUH85¥1,850202007-202210

main68760-20122iAXUH85¥1,850202210-202408

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAXUH85¥2,030202007-202210

main68770-33050iAXUH85¥2,030202210-202408

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAXUH85¥2,030202007-202210

main68780-33050iAXUH85¥2,030202210-202408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-48060iAXUH85¥5,100202007-202104

sub69803-48061¥4,560

main69803-48061iAXUH85¥4,560202210-202408

main69803-48061iAXUH85¥4,560202105-202210

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-48060iAXUH85¥5,100202007-202104

sub69804-48061¥4,560

main69804-48061iAXUH85¥4,560202105-202210

main69804-48061iAXUH85¥4,560202210-202408

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iAXUH85¥20,900202201-202210

main85710-12540iAXUH85¥20,900202210-202408

main85710-42150iAXUH85¥23,000202007-202112

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iAXUH85¥20,900202210-202408

main85720-12530iAXUH85¥20,900202201-202210

main85720-42140iAXUH85¥23,000202007-202112

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

13 parts on this diagram · 1 diagram in section
