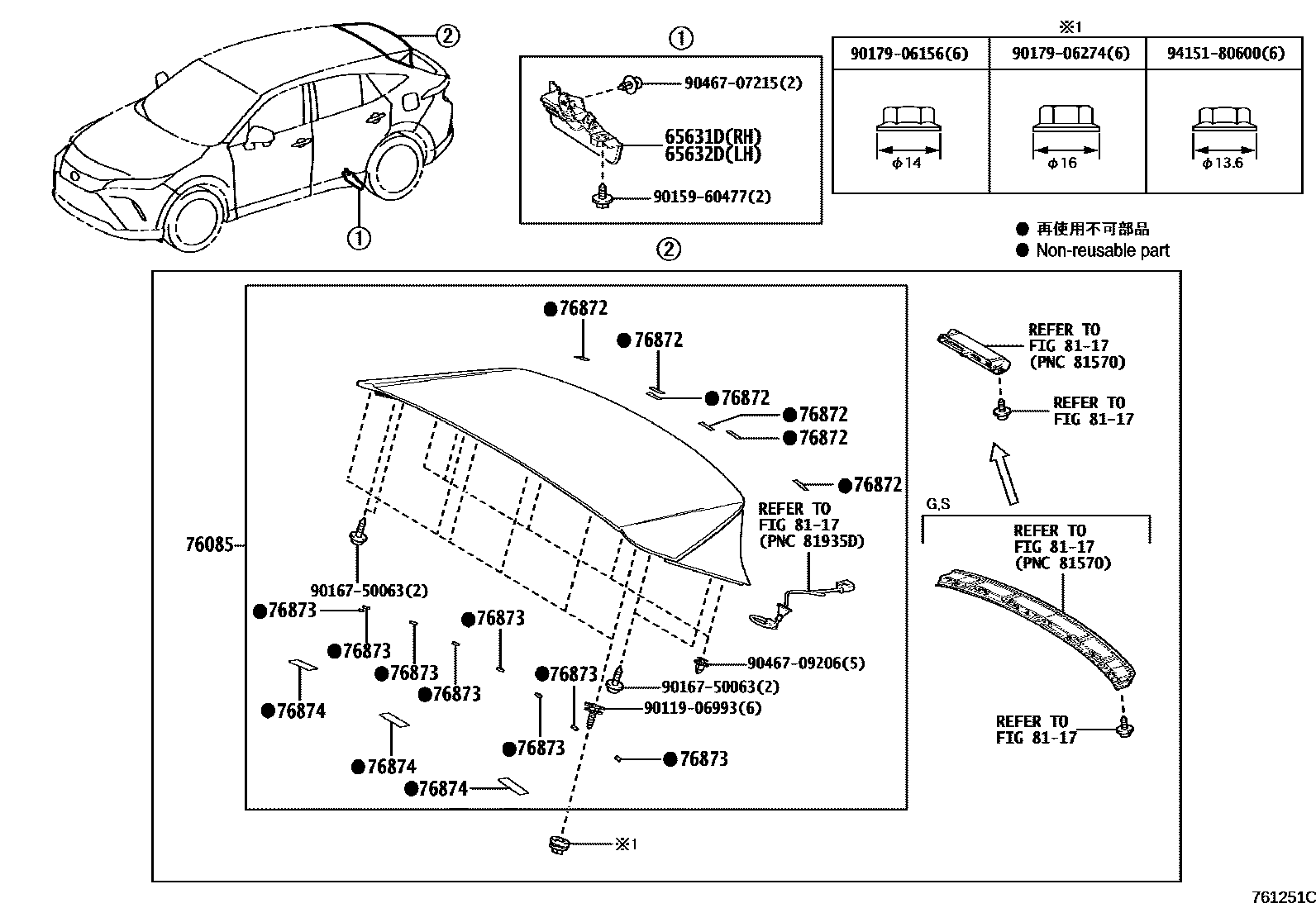

Toyota VENZA — MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-48020iAXUH85¥1,270202007-202408

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-48020iAXUH85¥1,270202007-202408

76085SPOILER SUB-ASSY, REAR

main76085-48910iAXUH85..G,S¥77,700202007-202408

PAINT REQ.

main76085-48911-C0iAXUH85..M202210-202408

BLACK,089 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8

main76085-48911-C0iAXUH85..M202007-202210

BLACK,070 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48050iAXUH85¥430202007-202408

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48060iAXUH85¥280202007-202408

76874PROTECTOR, REAR SPOILER, NO.3

main76874-48040iAXUH85¥430202007-202408

8117

9011906993

main90119-06993¥80

9015960477

main90159-60477¥70

9016750063

main90167-50063¥60

9017906156

main90179-06156¥140

9017906274

main90179-06274¥70

9046707215

main90467-07215¥80

9046709206

main90467-09206¥80

9415180600

main94151-80600¥60

15 parts on this diagram · 1 diagram in section
