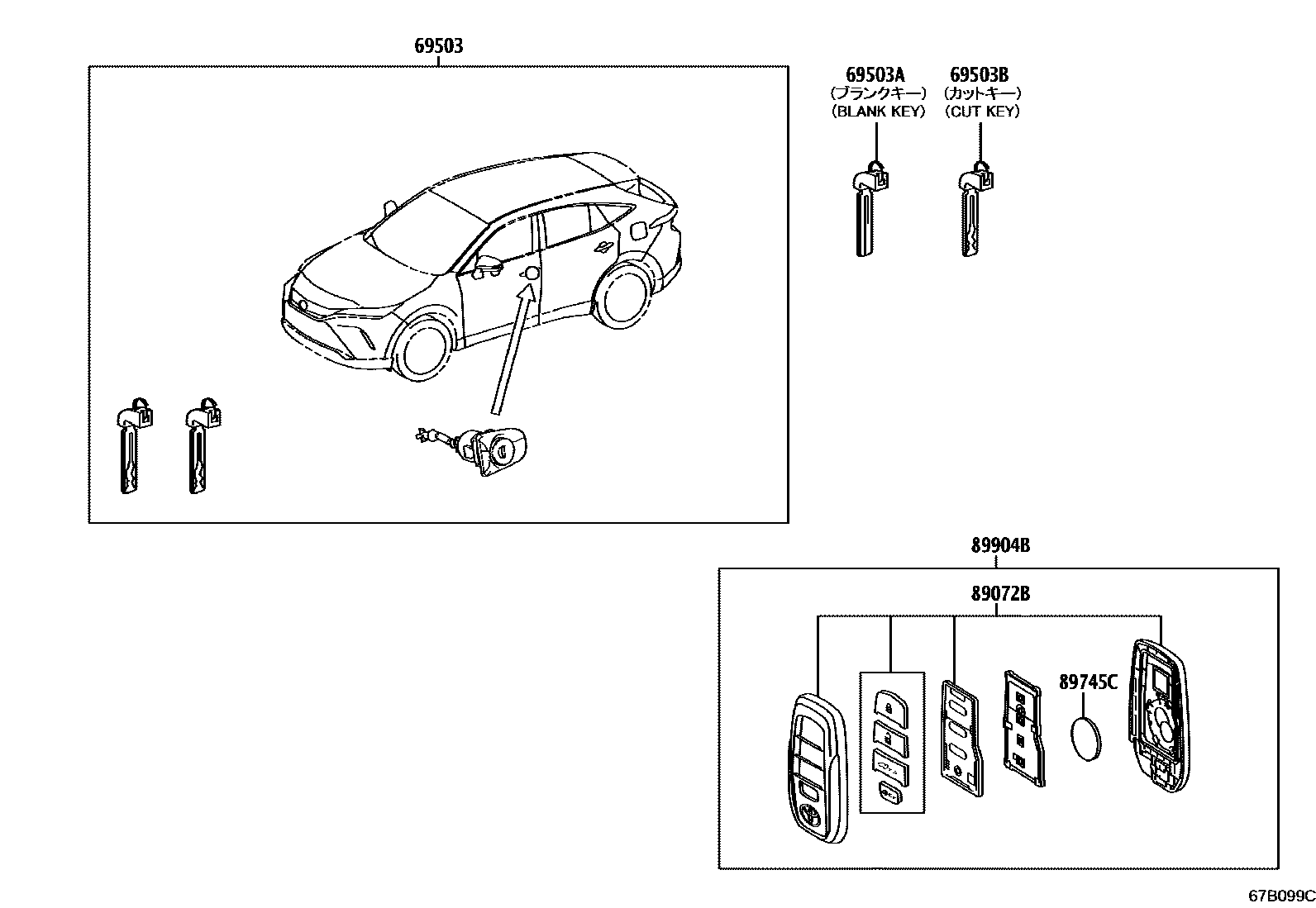

Toyota VENZA — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-48620iAXUH85202007-202408

69503AKEY, BLANK

main69515-K0020iAXUH85¥6,500202007-202408

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iAXUH85¥7,100202007-202408

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-48A30iAXUH85202210-202408

main89072-48F10iAXUH85202007-202210

89745CBATTERY, TRANSMITTER

main89745-K0010iAXUH85¥440202007-202408

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-48050iAXUH85202007-202110

sub8990H-48051

main8990H-48051iAXUH85202111-202210

main8990H-48120iAXUH85202210-202403

sub8990H-48121

main8990H-48121iAXUH85202404-202408

6 parts on this diagram · 1 diagram in section
