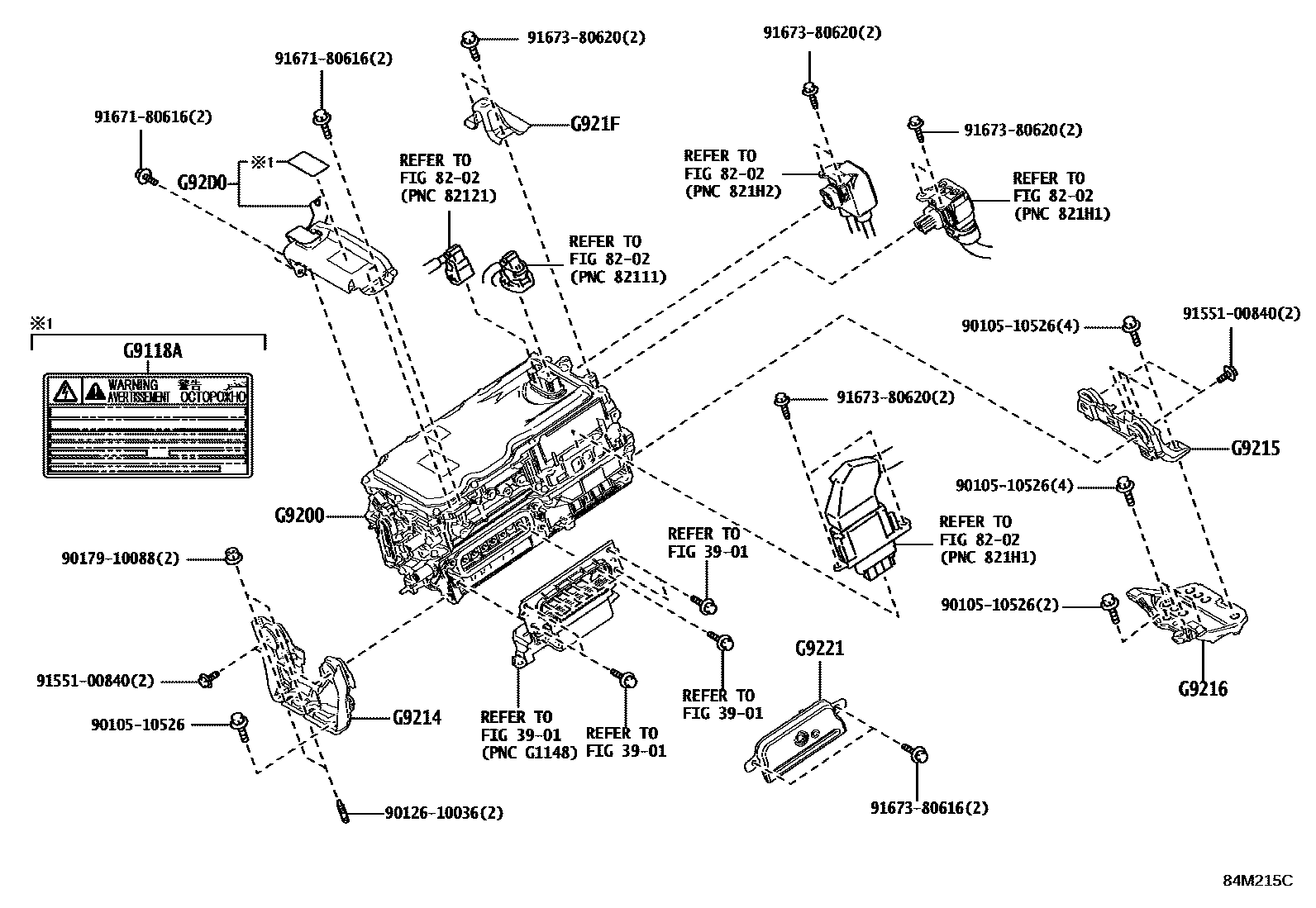

Toyota VENZA — HEV INVERTER

0001 1 0002 1HV CONVERTER KIT

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAXUH85202007-202408

G9200INVERTER ASSY, W/CONVERTER

mainG92A048310iAXUH85202007-202107

subG92A0-48311¥435,000

mainG92A048311iAXUH85202108-202207

subG92A0-48312¥395,000

mainG92A048312iAXUH85202208-202408

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXUH85202007-202408

G9215BRACKET, INVERTER, NO.2

mainG921542010iAXUH85202007-202408

G9216BRACKET, INVERTER, NO.3

mainG921642010iAXUH85202007-202408

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAXUH85202007-202408

G9221COVER, INVERTER

mainG902247050iAXUH85202007-202408

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D042010iAXUH85202007-202408

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

17 parts on this diagram · 2 diagrams in section
