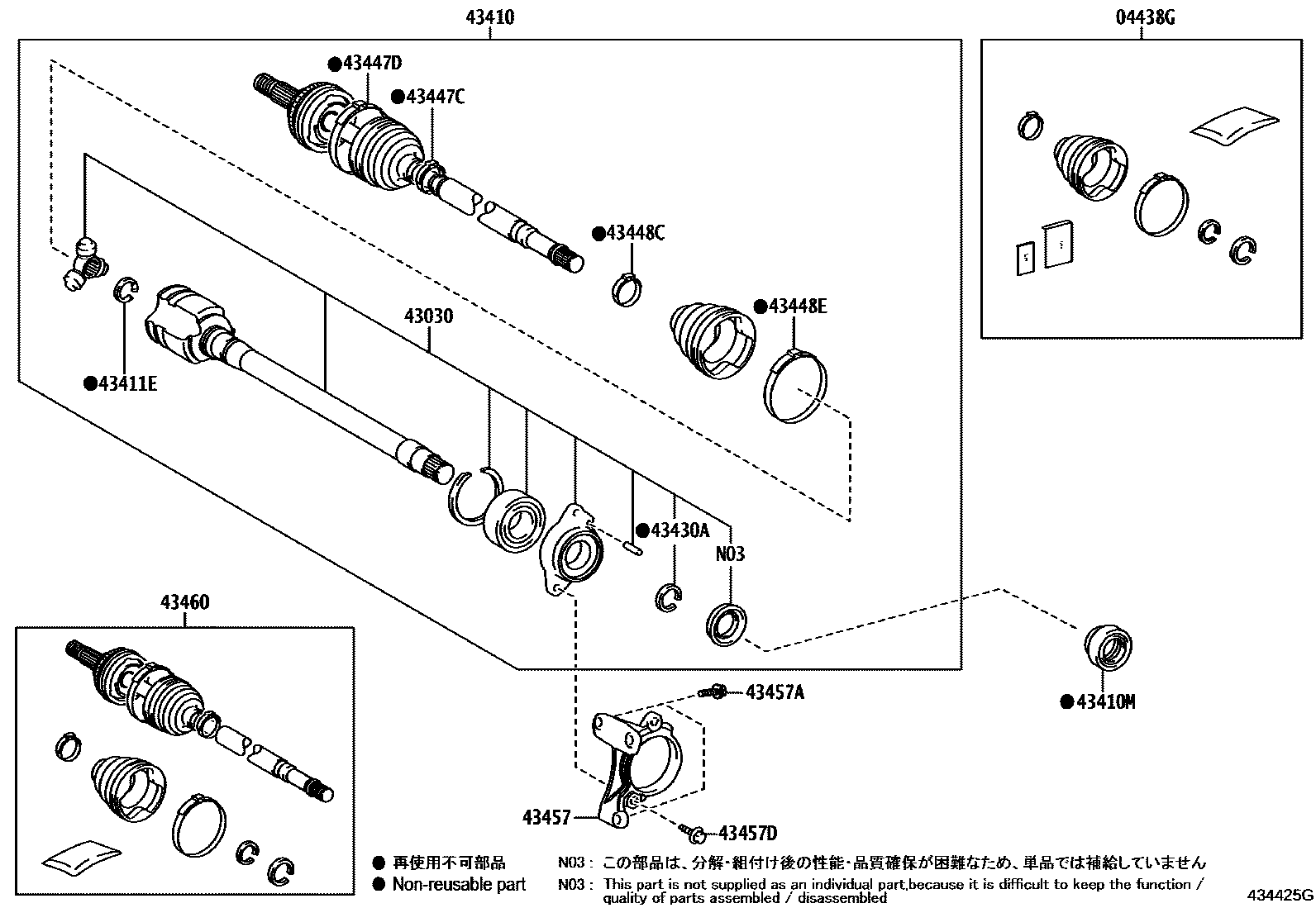

Toyota VENZA — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48170iAXUH85¥4,150202007-202408

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33070iAXUH85¥19,900202007-202408

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-48160iAXUH85¥52,100202007-202408

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40049iAXUH85¥470202007-202408

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXUH85¥40202007-202408

43430ARING, SHAFT SNAP

main90520-38015iAXUH85¥100202007-202408

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXUH85¥220202007-202408

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXUH85¥340202007-202408

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iAXUH85¥400202310-202408

main42345-33120iAXUH85¥260202007-202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXUH85¥1,480202007-202408

43457BRACKET, DRIVE SHAFT BEARING

main43457-33060iAXUH85¥3,400202007-202408

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10381iAXUH85¥100202007-202408

*10-1.25PX32-30

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10361iAXUH85¥110202007-202408

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80481iAXUH85¥31,600202007-202408

14 parts on this diagram · 2 diagrams in section
