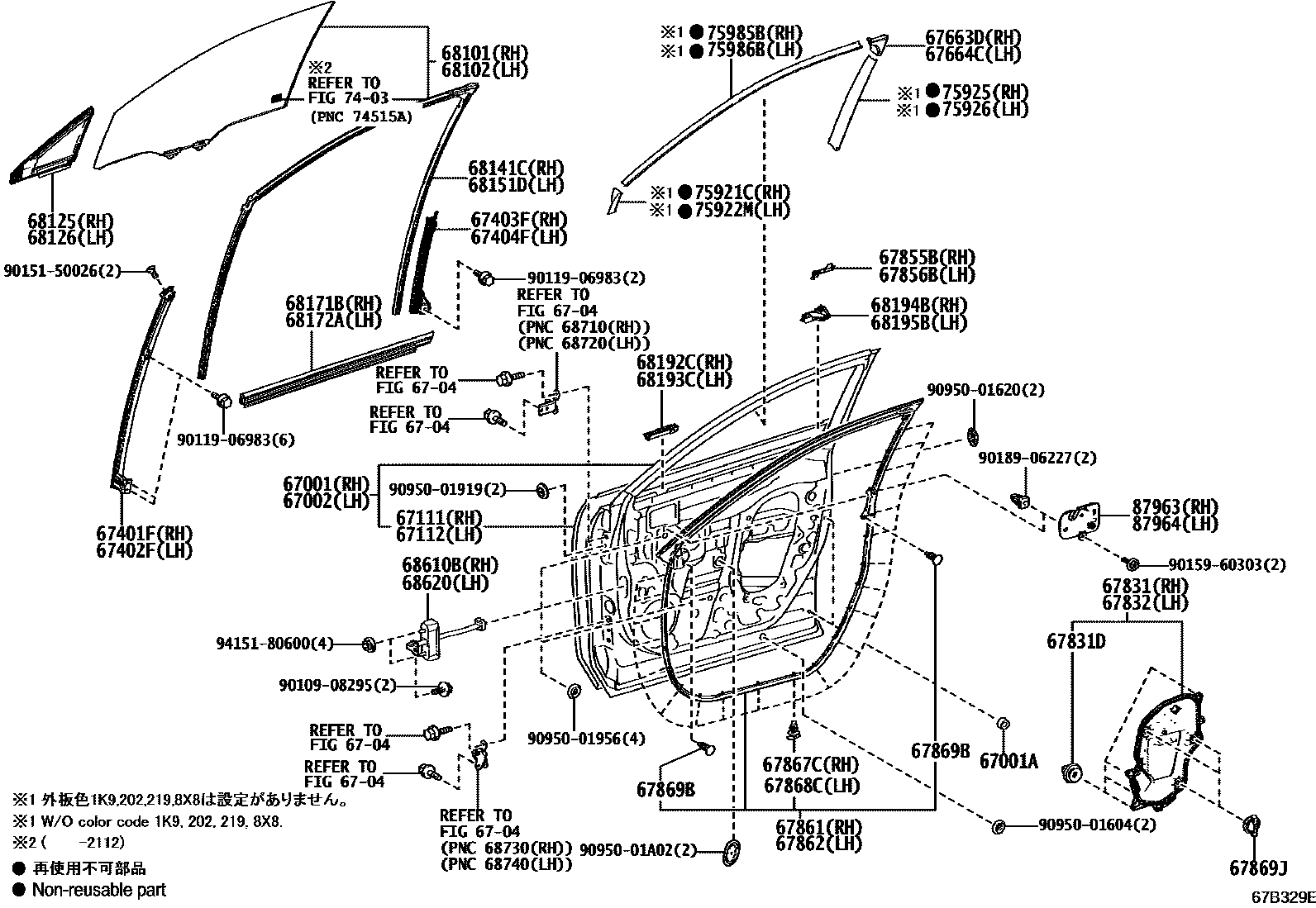

Toyota VENZA — FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
6704
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194BSEAL, FRONT DOOR BELT, REAR RH
68195BSEAL, FRONT DOOR BELT, REAR LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
7403
75921CTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922MTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75925TAPE, BLACK OUT, NO.3 RH
0 OR 1PIECE,REF.ILL.
75926TAPE, BLACK OUT, NO.3 LH
0 OR 1PIECE,REF.ILL.
75985BSTRIPE, FRONT DOOR, NO.3 RH
0 OR 1PIECE,REF.ILL.
75986BSTRIPE, FRONT DOOR, NO.3 LH
0 OR 1PIECE,REF.ILL.
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
9011906983
9015150026
9015960303
9018906227
9095001604
9095001620
9095001919
9095001956
9095001A02
9415180600
57 parts on this diagram · 2 diagrams in section
