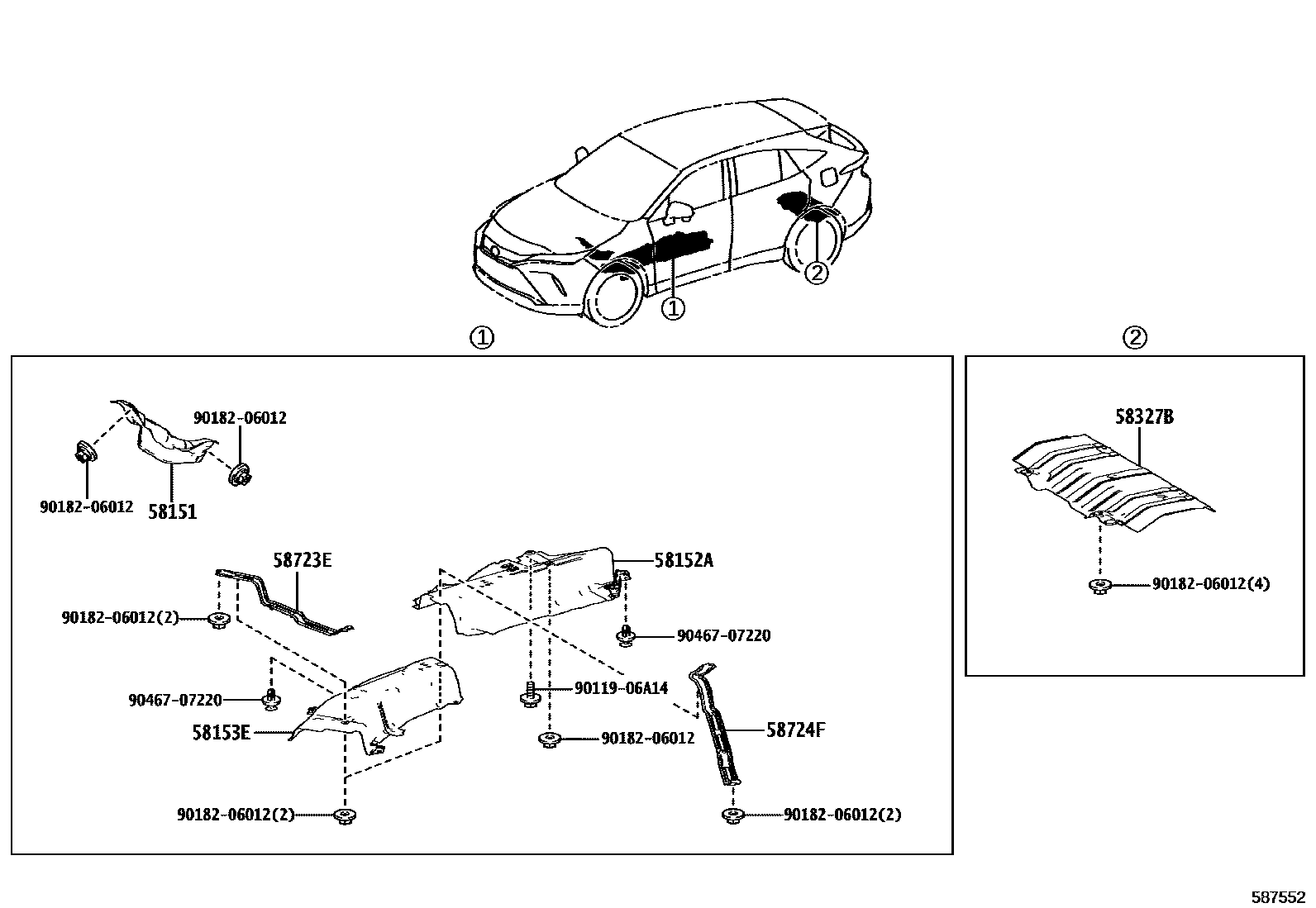

Toyota VENZA — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42060iAXUH85¥2,100202007-202408

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42050iAXUH85¥5,300202007-202408

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-42020iAXUH85¥4,560202007-202408

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42030iAXUH85¥3,810202007-202408

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAXUH85¥2,330202007-202408

58724FCUSHION, ENGINE SERVICE COVER, NO.2

main58724-42040iAXUH85¥2,620202007-202408

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

9 parts on this diagram · 1 diagram in section
