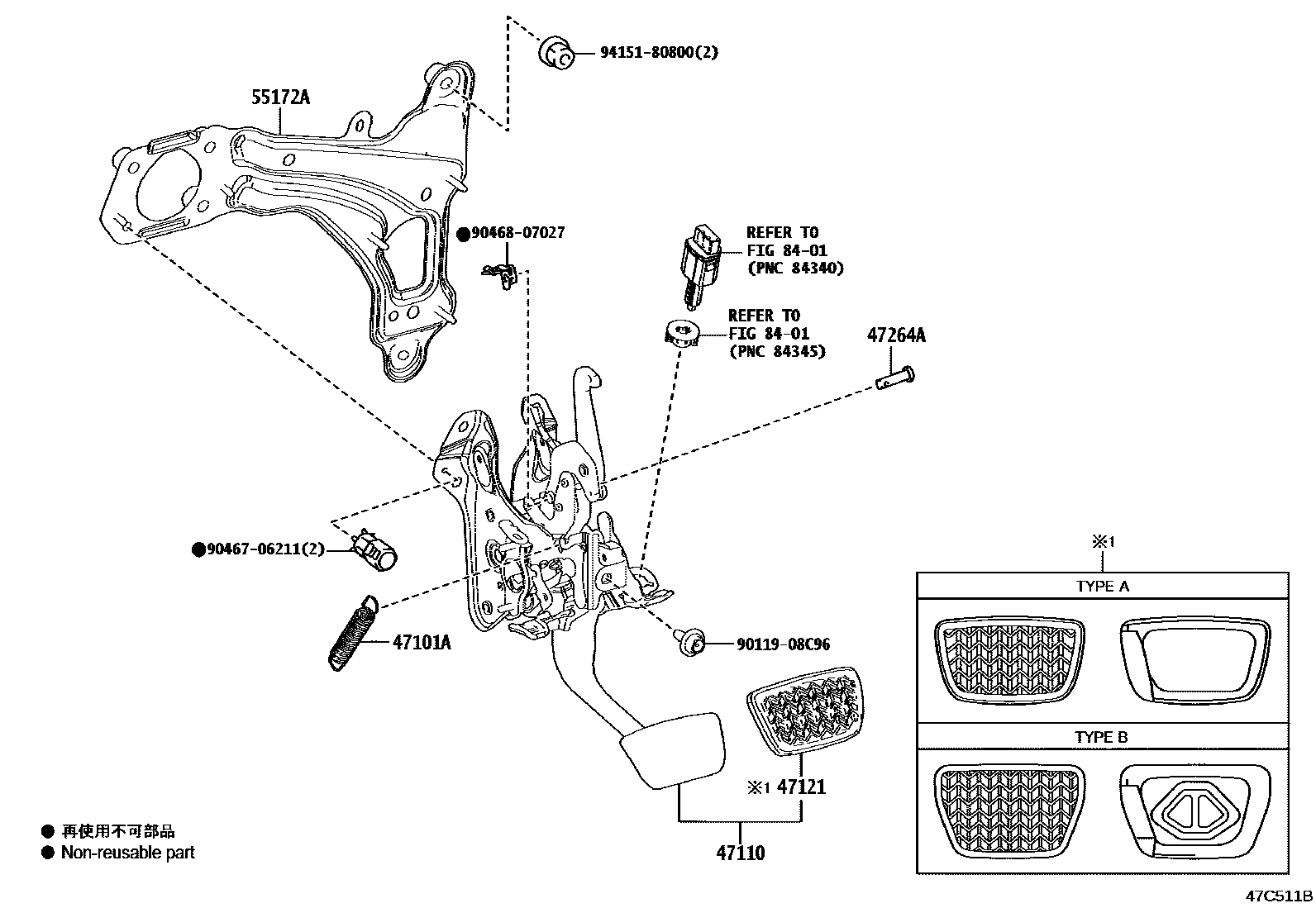

Toyota VENZA — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXUH85¥120202007-202408

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42360iAXUH85202007-202110

sub47110-42430

main47110-42430iAXUH85202110-202408

47121PAD, BRAKE PEDAL

main47121-48010iAXUH85¥520202007-202110

TYPE A:REFER ILLUST.

main47121-62010iAXUH85¥520202110-202112

TYPE B:REFER ILLUST.

main47121-62010iAXUH85¥520202112-202408

47264APIN(FOR PUSH ROD)

main90240-08078iAXUH85¥120202007-202408

55172ABASE, BRAKE PEDAL SUPPORT

main55172-42010iAXUH85202007-202408

8401

9011908C96

main90119-08C96¥80

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

10 parts on this diagram · 1 diagram in section
