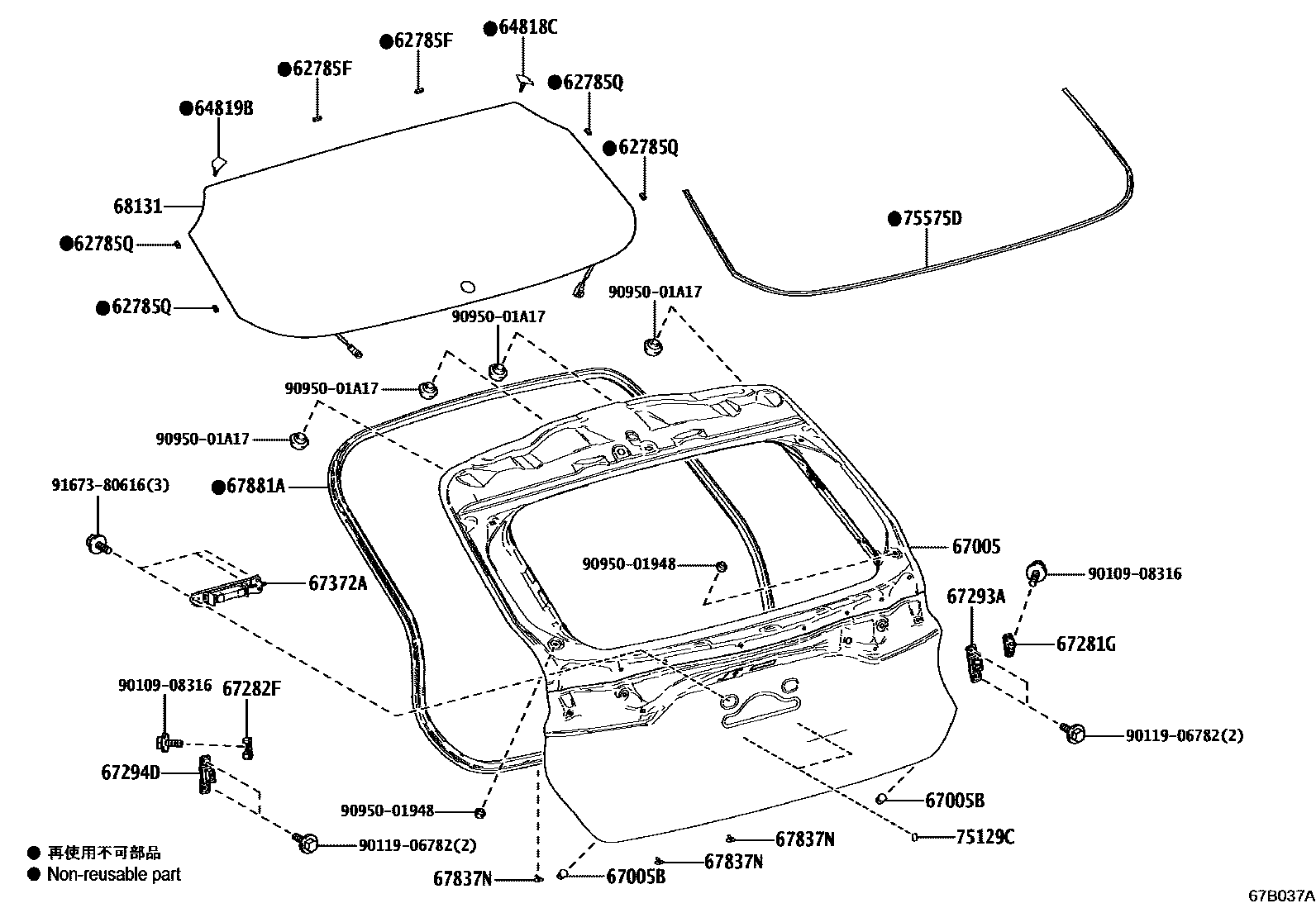

Toyota VENZA — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030iAXUH85¥200202007-202408

62785QSPACER, QUARTER WINDOW GLASS, NO.2

main62786-10010iAXUH85¥190202007-202408

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48090iAXUH85¥230202007-202408

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48080iAXUH85¥230202007-202408

67005PANEL SUB-ASSY, BACK DOOR

main67005-48A50iAXUH85¥51,000202112-202408

main67005-48A90iAXUH85202007-202112

sub67005-48A50¥51,000

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iAXUH85¥100202007-202111

main90541-09153iAXUH85¥100202112-202408

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-48030iAXUH85¥430202007-202408

67282FSTOPPER, BACK DOOR, LWR LH

main67282-48020iAXUH85¥430202007-202408

67293ACUSHION, BACK DOOR STOPPER

main67293-48070iAXUH85¥670202007-202408

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-48020iAXUH85¥670202007-202408

67372AWEIGHT, BACK DOOR

main67372-48080iAXUH85¥2,740202007-202408

67837NSEAL, BACK DOOR DUST PROOF

main67837-52040iAXUH85¥80202007-202408

67881AWEATHERSTRIP, BACK DOOR

main67881-48100iAXUH85¥8,100202007-202408

68131GLASS, BACK DOOR

main68105-48921iAXUH85..G,M¥47,700202007-202408

main68105-48923iAXUH85..G¥46,700202007-202408

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iAXUH85¥190202007-202408

75575DMOULDING, BACK WINDOW, LOWER

main75575-48070iAXUH85¥510202007-202408

9010908316

main90109-08316¥80

9011906782

main90119-06782¥60

9095001948

main90950-01948¥100

9095001A17

main90950-01A17¥100

9167380616

main91673-80616¥60

21 parts on this diagram · 2 diagrams in section
