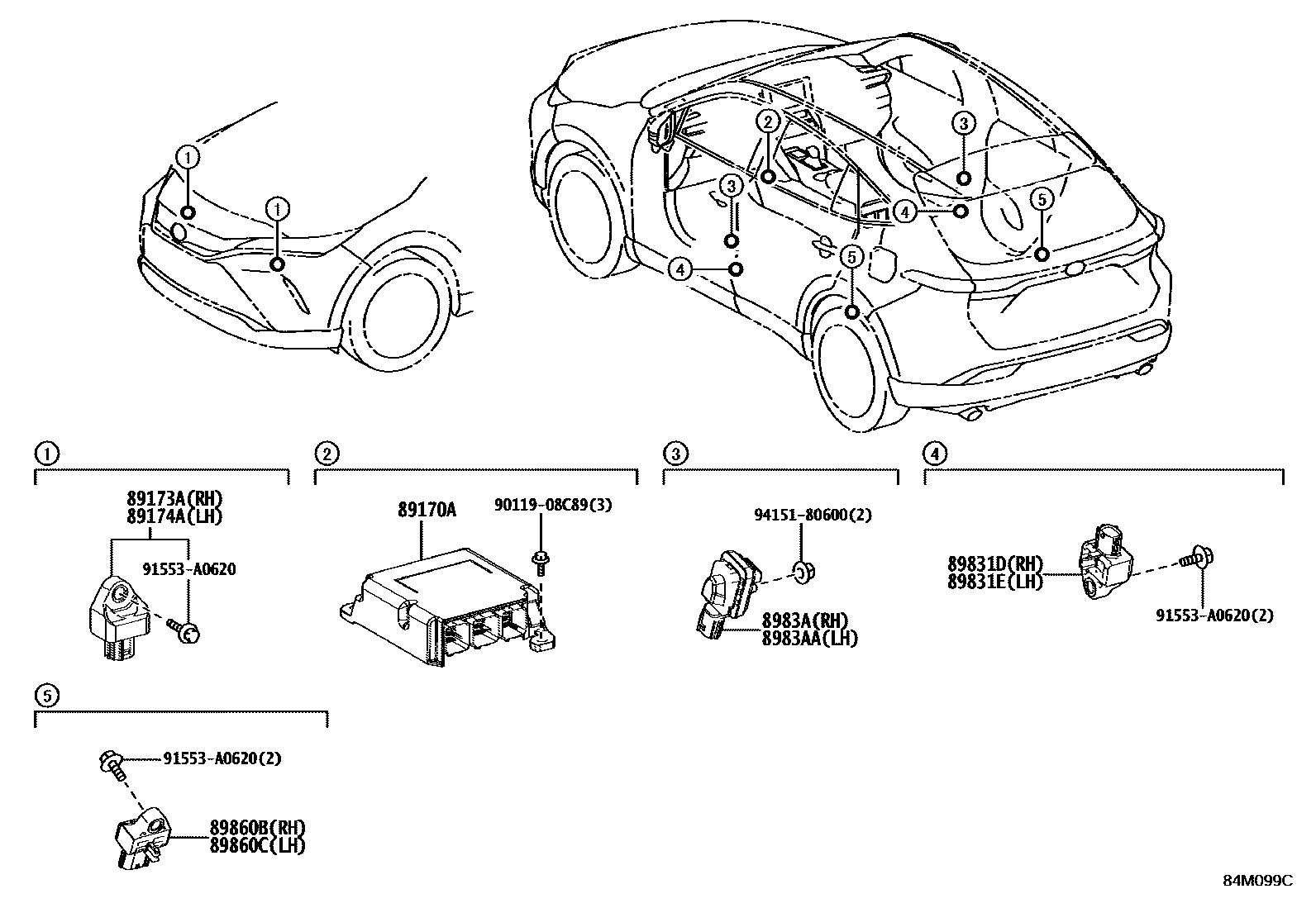

Toyota VENZA — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-48E30iAXUH85202007-202112

*614

main89170-48J20iAXUH85202112-202210

*614

main89170-48J90iAXUH85202210-202408

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-59335iAXUH85¥4,110202007-202408

main89173-59335iAXUH85¥4,110202210-202304

MARK 89173-52190

89174ASENSOR, AIRBAG, FRONT LH

main89173-59335iAXUH85¥4,110202007-202408

main89173-59335iAXUH85¥4,110202210-202304

MARK 89173-52190

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020iAXUH85¥4,110202007-202408

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020iAXUH85¥4,110202007-202408

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iAXUH85¥4,520202007-202101

sub8983A-52011¥4,110

main8983A-52011iAXUH85¥4,110202102-202408

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iAXUH85¥4,520202007-202101

sub8983A-52011¥4,110

main8983A-52011iAXUH85¥4,110202102-202408

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52130iAXUH85¥4,110202007-202210

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52130iAXUH85¥4,110202007-202210

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
