Toyota VENZA — WIRING & CLAMP

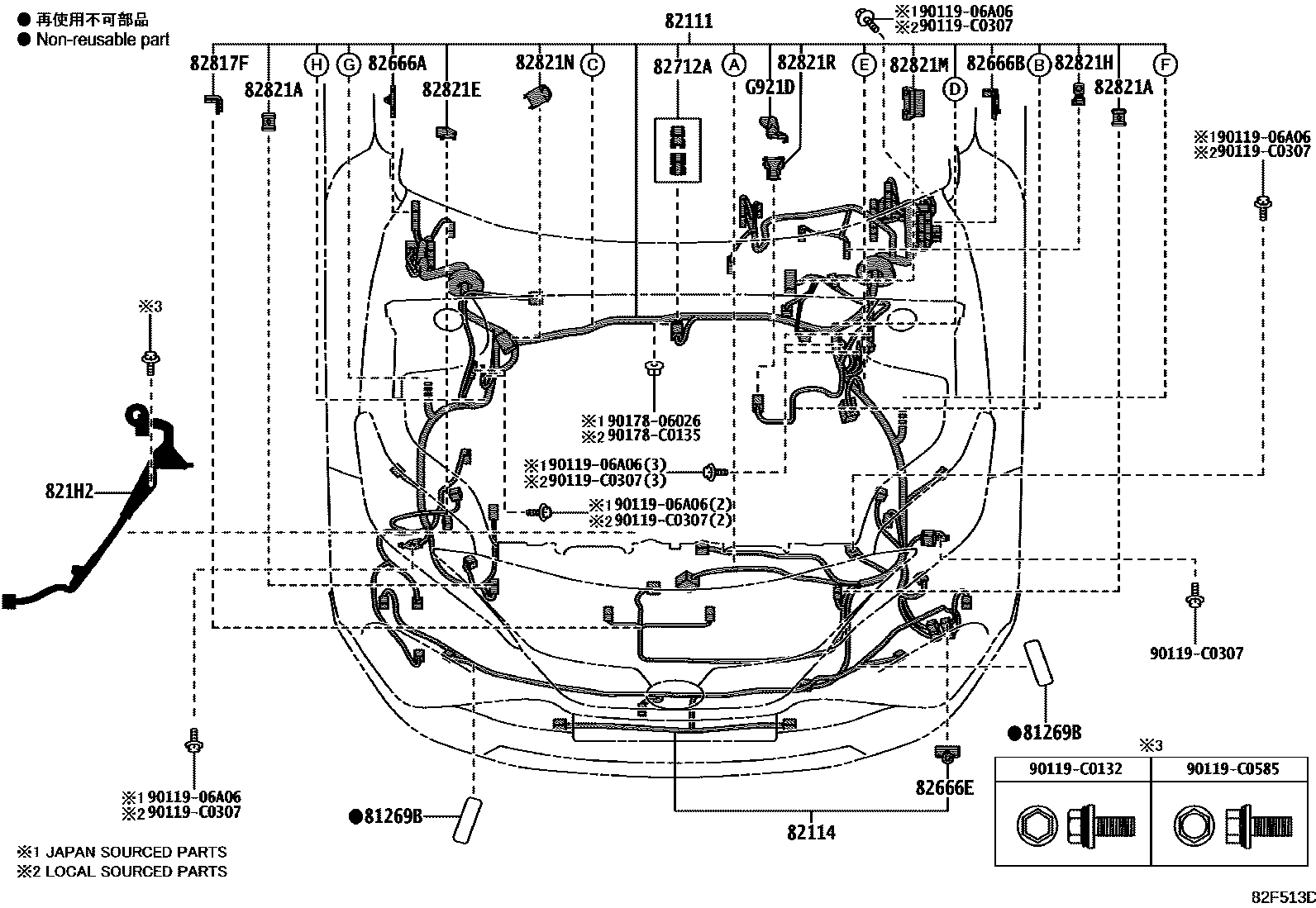

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1INSTRUMENT PANEL 0014 1DOOR 0015 1FLOOR & FRAME & ROOF 0016 1HIGH TENSION CABLE 0017 1HIGH TENSION CABLE 0018 1SEAT 0019 1CLAMP & BRACKET 0020 1CLAMP & BRACKET 0021 1CONNECTOR 1/2 0022 1CONNECTOR 2/2

81269BSEAL, FOG LAMP

main81269-0E010iAXUH8#,MXUA8#202203

82111WIRE, ENGINE ROOM MAIN

main82115-0E150iMXUA80..M202203-202304

main82115-0E151iMXUA80..M202304-202406

main82115-0E152iMXUA80..M202406

main82115-0E160iMXUA80..X202203-202304

main82115-0E161iMXUA80..X202304-202406

main82115-0E162iMXUA80..X202406

main82115-0E170iMXUA85202203-202304

main82115-0E171iMXUA85202304-202406

main82115-0E172iMXUA85202406

main82115-0E180iAXUH80..X202203-202304

main82115-0E181iAXUH80..X202304-202406

main82115-0E182iAXUH80..X202406

main82115-0E190iAXUH85202203-202304

main82115-0E191iAXUH85202304-202406

main82115-0E192iAXUH85202406

main82115-0E290iAXUH80..M202203-202304

main82115-0E291iAXUH80..M202304-202406

main82115-0E292iAXUH80..M202406

82114WIRE, ENGINE ROOM, NO.4

main82114-0E340iAXUH80,MXUA80..X202203

main82114-0E350iAXUH80,MXUA80..M202203

main82114-0E360iAXUH85,MXUA85202203

821H2WIRE, HV AIR CONDITIONER

main821H2-06020iAXUH80202203

main821H2-0R050iAXUH85202203

82666AHOLDER, CONNECTOR NO.2

main82666-60220iAXUH8#,MXUA8#¥180202304

82666BHOLDER, CONNECTOR NO.3

main82666-42710iAXUH8#,MXUA8#¥400202406

82666EHOLDER, CONNECTOR NO.6

main82666-48130iAXUH8#,MXUA8#¥200202304

82712ASUPPORT, WIRING HARNESS

main82712-42060iAXUH8#¥430202203

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42L70iAXUH8#,MXUA8#¥550202203-202406

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-2A790iAXUH8#,MXUA8#¥90202406

82821ACOVER, CONNECTOR

main82821-30650iAXUH8#,MXUA8#¥60202304

82821ECOVER, CONNECTOR

main82821-30690iAXUH8#,MXUA8#¥140202304

82821HCOVER, CONNECTOR

main82821-33620iAXUH8#,MXUA8#¥200202304-202406

main82821-48420iAXUH8#,MXUA8#¥200202406

82821MCOVER, CONNECTOR

main82821-47190iAXUH8#¥250202304

82821NCOVER, CONNECTOR

main82821-48270iAXUH8#,MXUA8#¥570202304

82821RCOVER, CONNECTOR

main82821-47680iAXUH80..M202203

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42010iAXUH85202203

mainG921D47020iAXUH80202203

9011906A06

main90119-06A06¥60

90119C0132

main90119-C0132

90119C0307

main90119-C0307

90119C0585

main90119-C0585

9017806026

main90178-06026¥80

90178C0135

main90178-C0135

23 parts on this diagram · 22 diagrams in section
