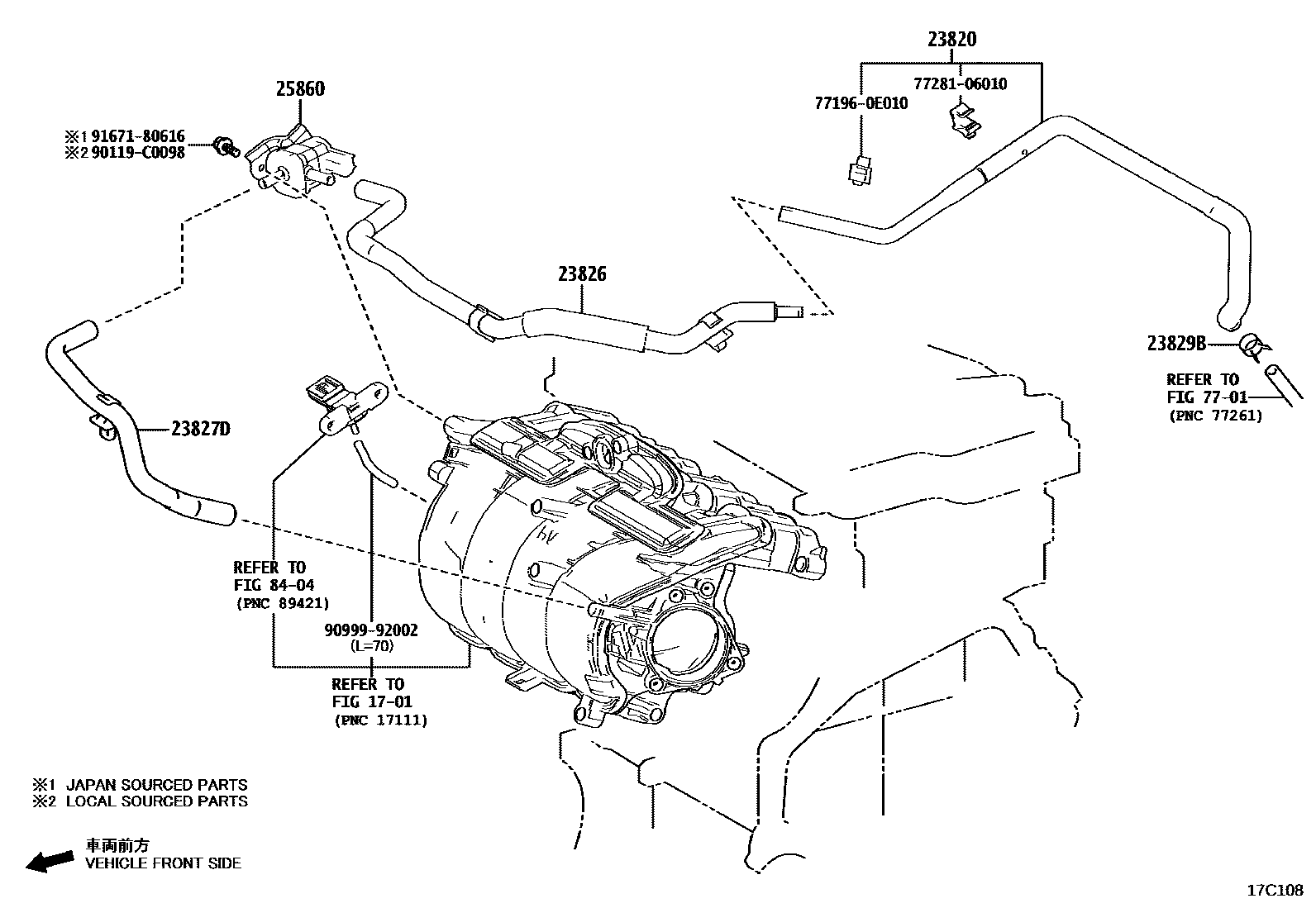

Toyota VENZA — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0500iA25DFXS..AXUH85202203

main23820-F0550iA25DFXS..AXUH80202203

main23820-F2040iM20CFKS..MXUA8#202203

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25DFXS..AXUH8#¥2,480202203

(J)

main23820-F0440iA25DFXS..AXUH8#202203

(L)

main23826-F0240iM20CFKS..MXUA8#202203

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25DFXS..AXUH8#¥1,590202203

(J)

main23820-F0450iA25DFXS..AXUH8#202203

(L)

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0039iA25DFXS..AXUH8#202203

main96133-41501iM20CFKS..MXUA8#¥90202203

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25DFXS..AXUH8#¥3,480202203

(J)

main25860-F0070iA25DFXS..AXUH8#202203

(L)

main25860-F2050iM20CFKS..MXUA8#202203

7701

8404

771960E010CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-0E010

7728106010BRACKET, FUEL MAIN TUBE, NO.1

main77281-06010¥200

90119C0098

main90119-C0098

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

13 parts on this diagram · 5 diagrams in section
