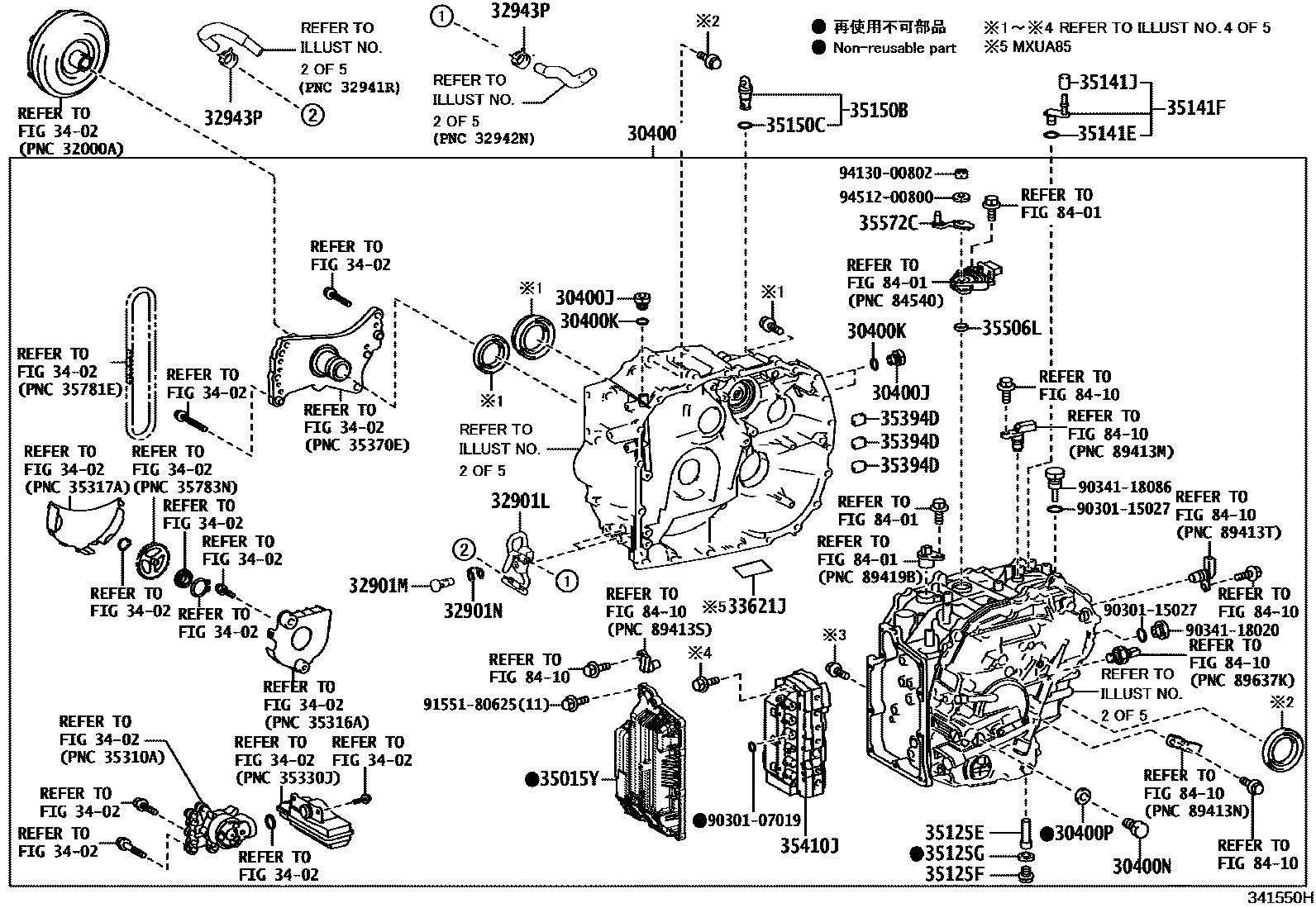

Toyota VENZA — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K120
K120F
K121
K121F
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
32901LELBOW SUB-ASSY, OIL COOLER
32901MBOLT, UNION(FOR OIL COOLER)
32901NGASKET(FOR OIL COOLER UNION)
32943PCLIP, NO.1(FOR OIL COOLER HOSE)
(J)
(L)
33621JLABEL, TRANSAXLE OIL INFORMATION
3402
35015YCOVER SUB-ASSY, TRANSAXLE SIDE
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35394DMAGNET, OIL CLEANER(CVT)
35410JBODY ASSY, TRANSMISSION VALVE
35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
8401
8410
9030107019
9030115027
9034118020
9034118086
9155180625
9413000802
9451200800
33 parts on this diagram · 7 diagrams in section
