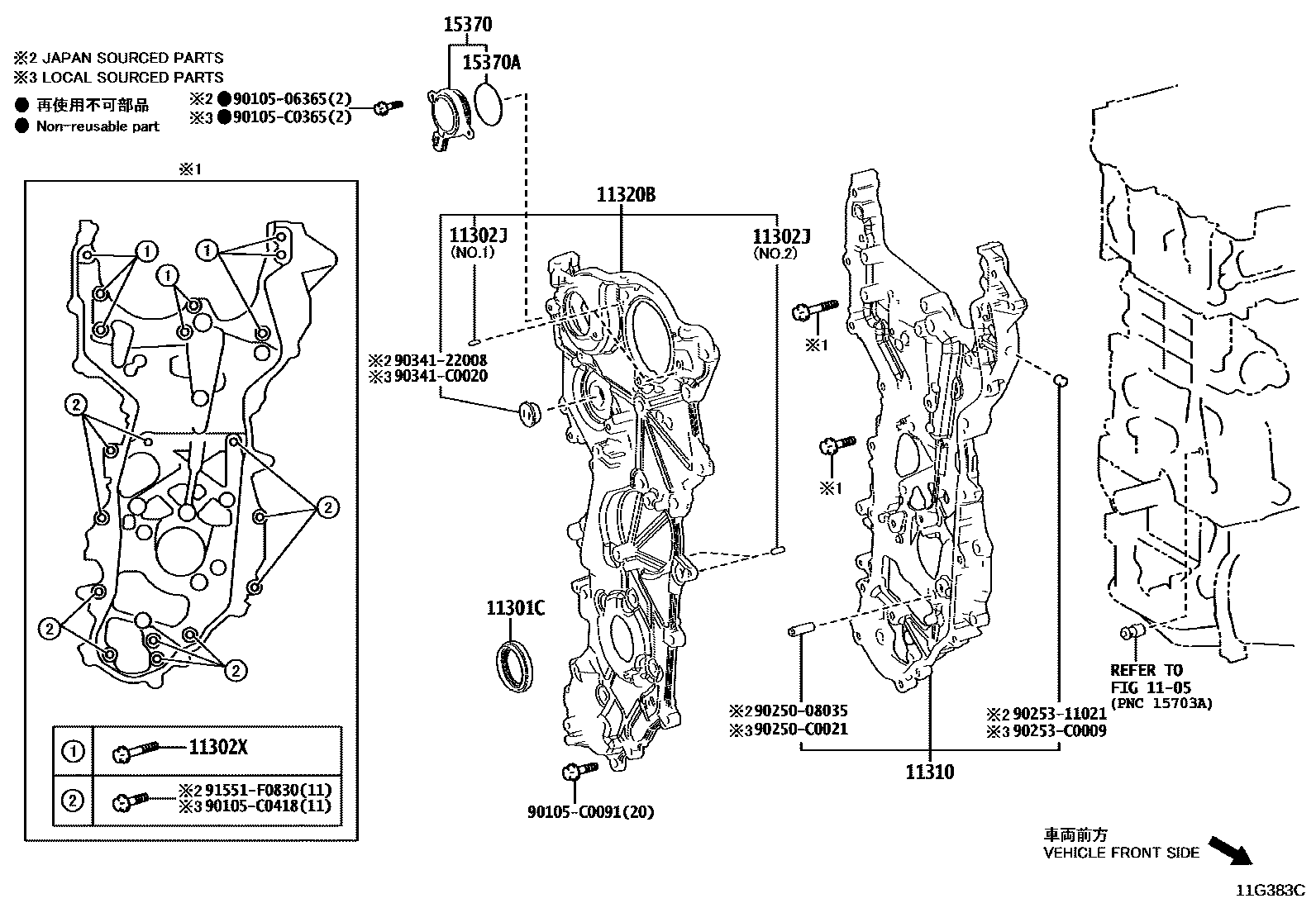

Toyota VENZA — TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
(J),NO.1:REFER ILL.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
(L),NO.1:REFER ILL.
11302XBOLT, FLANGE
(L)
(J)
11310COVER ASSY, TIMING CHAIN
11320BCOVER ASSY, TIMING CHAIN, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
(J)
(L)
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
9010506365
90105C0091
main90105-C0091
90105C0365
main90105-C0365
90105C0418
main90105-C0418
9025008035
90250C0021
main90250-C0021
9025311021
90253C0009
main90253-C0009
9034122008
90341C0020
main90341-C0020
91551F0830
19 parts on this diagram · 2 diagrams in section
