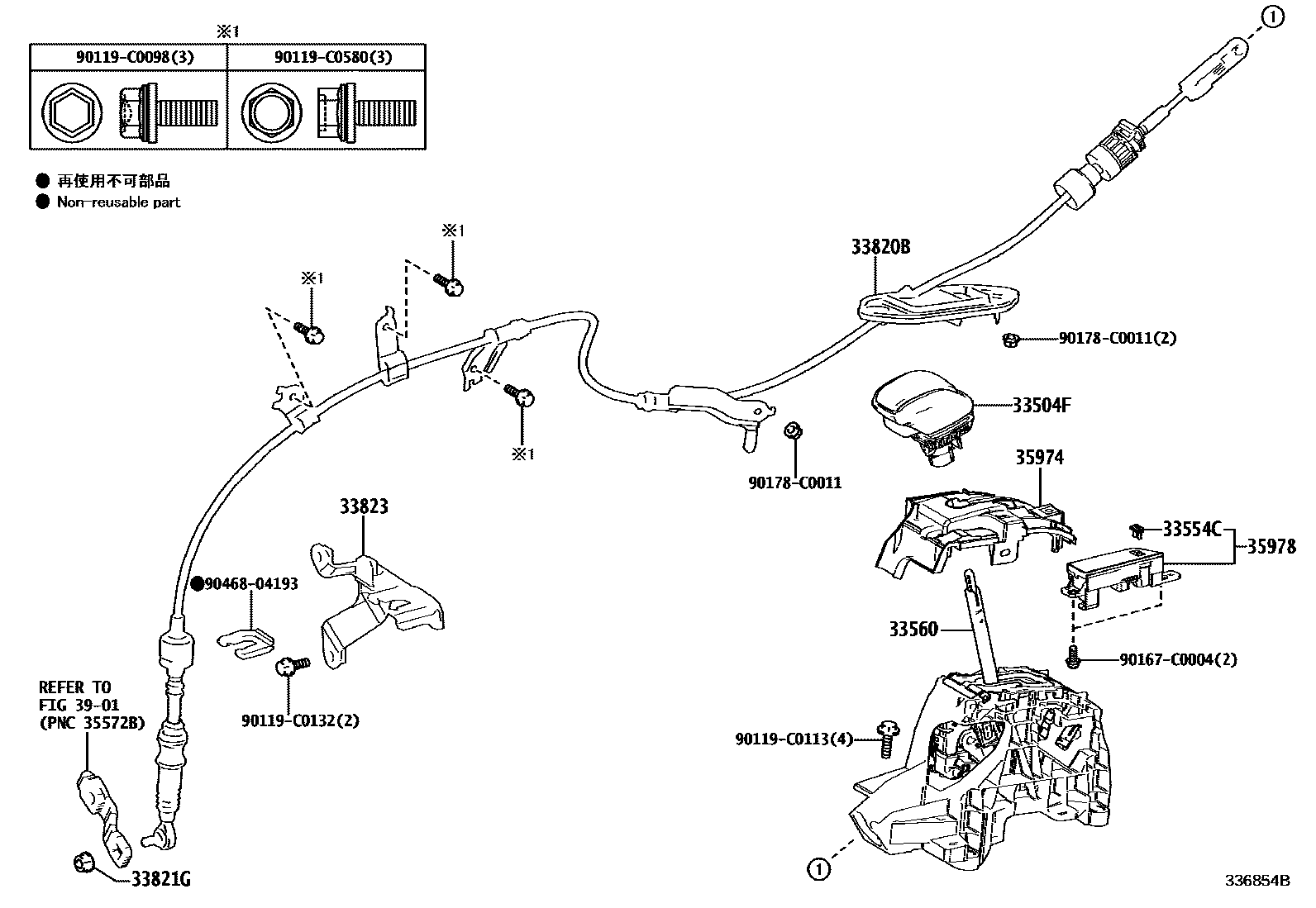

Toyota VENZA — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0R160-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#

main33504-0R160-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-0E150iAXUH8#,MXUA8#202203

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R110iAXUH8#202203

main33560-F4130iMXUA8#202203

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E240iMXUA8#202203

main33820-0E250iAXUH80202203

main33820-0E260iAXUH85202203

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0034iAXUH8#202203

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0R120iAXUH8#202203

main33823-F4050iMXUA8#202203

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0E130iAXUH8#,MXUA8#202203

35978INDICATOR, SHIFT POSITION

main35978-0E160iMXUA8#202203-202303

main35978-0E170iAXUH8#202203

main35978-0E220iMXUA8#202303

3901

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90119C0132

main90119-C0132

90119C0580

main90119-C0580

90167C0004

main90167-C0004

90178C0011

main90178-C0011

9046804193

main90468-04193¥160

16 parts on this diagram · 3 diagrams in section
