Toyota VENZA — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55215DPAD, DASH PANEL INSULATOR, NO.3
58450CCLIP
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
58512JMAT, FLOOR, NO.2
58521FHOOK, FLOOR CARPET
NATURAL
BLACK
58565BCLIP
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
58571DMAT, REAR FLOOR, FRONT RH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER

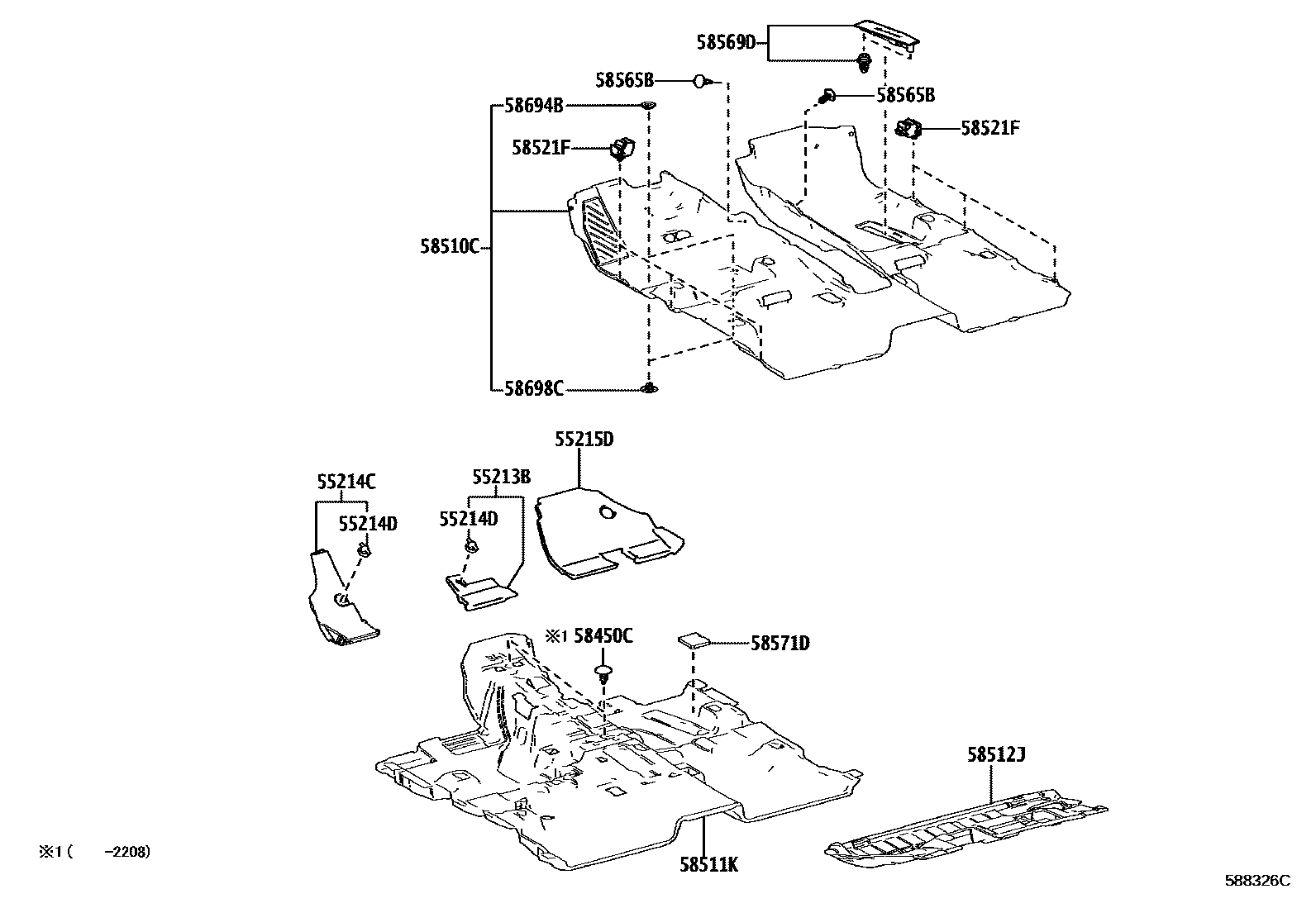

14 parts on this diagram · 3 diagrams in section
