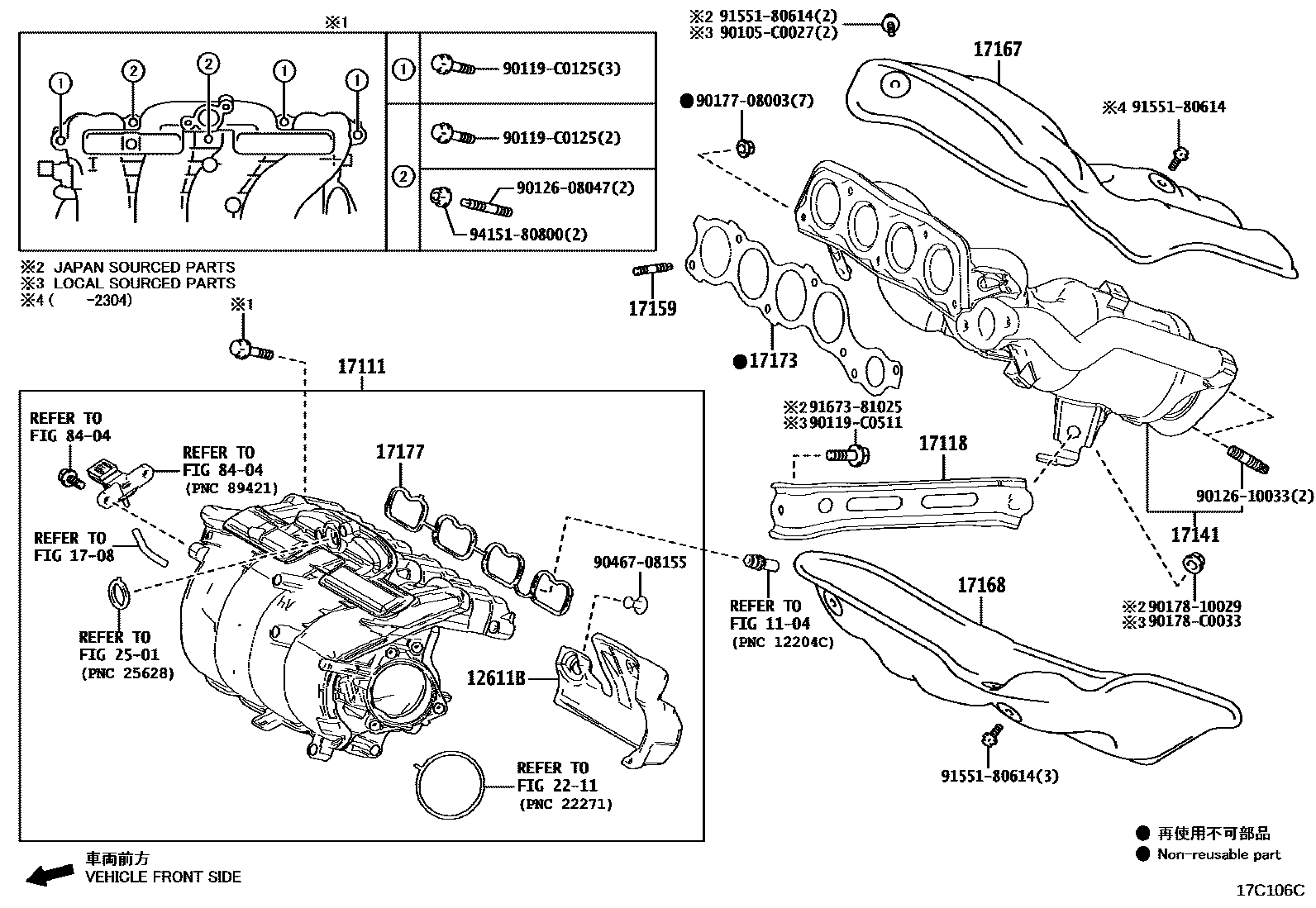

Toyota VENZA — MANIFOLD
1104
12611BCOVER, ENGINE, NO.1
1708
17118STAY, MANIFOLD
(J)
(L)
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
8404
90105C0027
main90105-C0027
90119C0125
main90119-C0125
90119C0511
main90119-C0511
9012608047
9012610033
9017708003
9017810029
90178C0033
main90178-C0033
9046708155
9155180614
9167381025
9415180800
26 parts on this diagram · 3 diagrams in section
