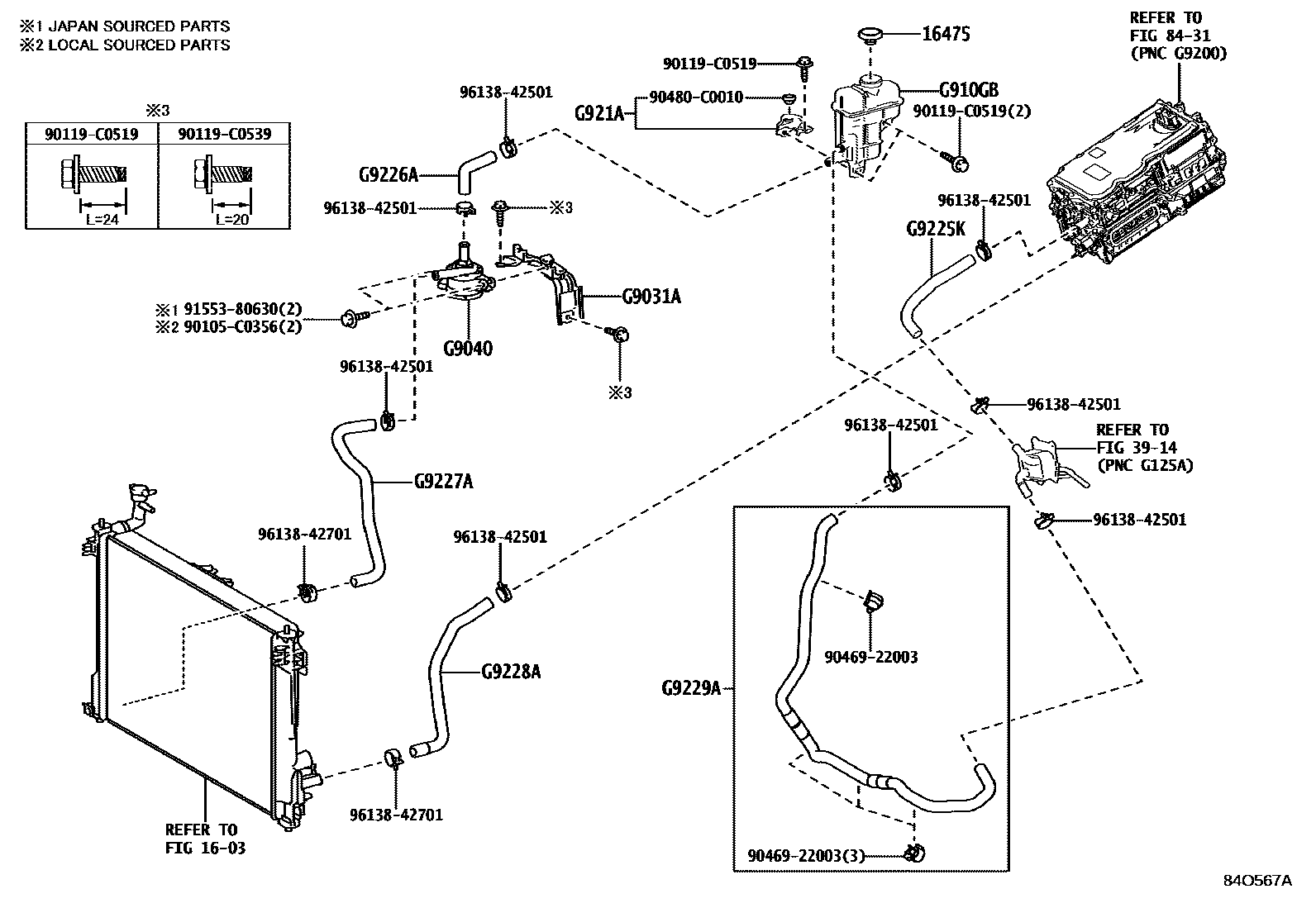

Toyota VENZA — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iA25DFXS..AXUH8#202203

LOCAL SOURCED PARTS

main16475-28140iA25DFXS..AXUH8#¥1,200202203

JAPAN SOURCED PARTS

3914

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E050iAXUH8#202203

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXUH8#202203

(L)

mainG904048050iAXUH8#202203-202406

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R031iAXUH8#202203

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R030iAXUH8#202203

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R030iAXUH8#202203

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R050iAXUH8#202203

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E040iAXUH8#202203

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E050iAXUH8#202203

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E050iAXUH8#202203

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90119C0539

main90119-C0539

9046922003

main90469-22003¥110

90480C0010

main90480-C0010

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

21 parts on this diagram · 1 diagram in section
