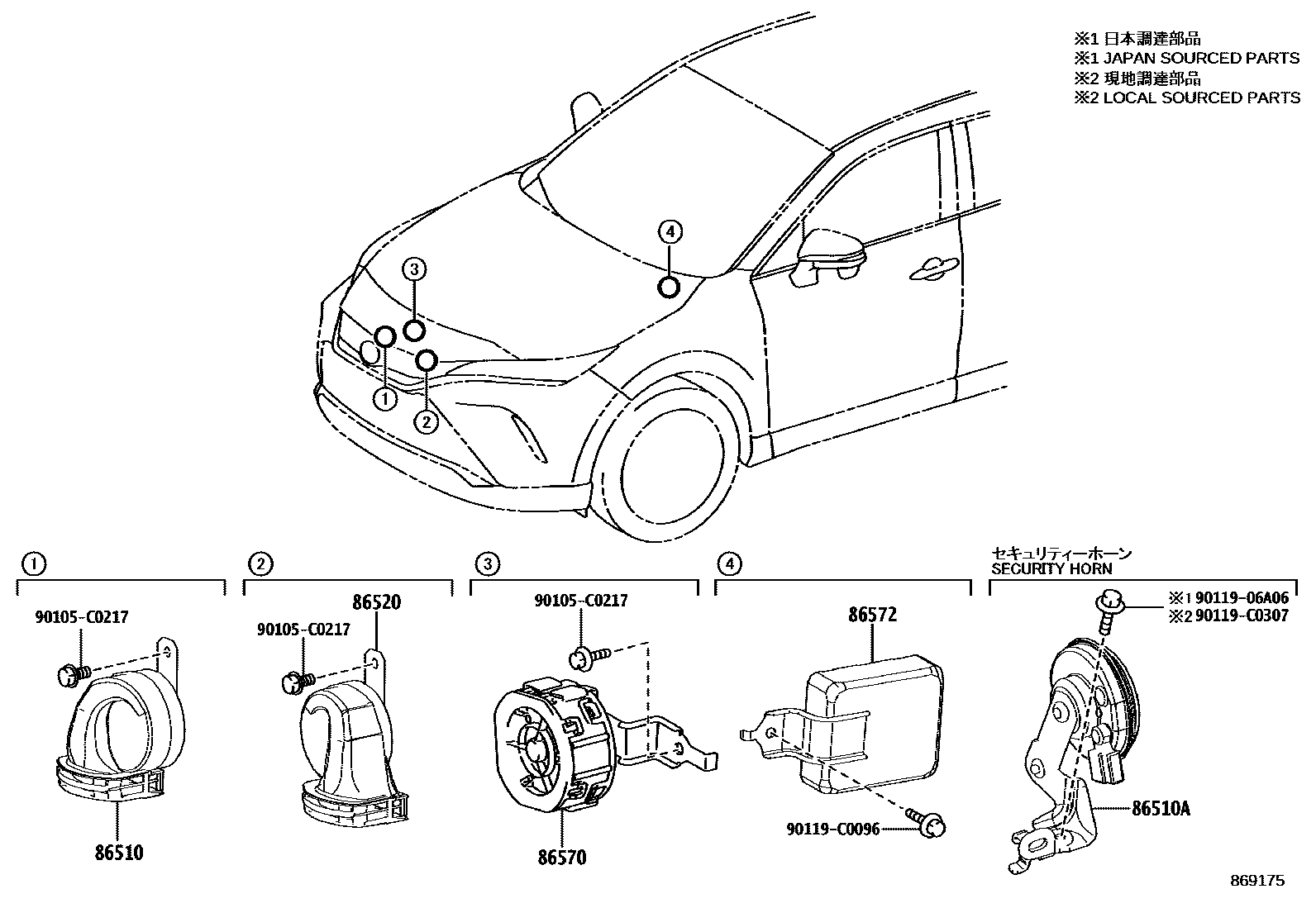

Toyota VENZA — HORN

86510HORN ASSY, HIGH PITCHED

main86510-78020iAXUH8#,MXUA8#202203

86510AHORN ASSY, SECURITY

main86560-06090iAXUH8#,MXUA8#202203

86520HORN ASSY, LOW PITCHED

main86520-78020iAXUH8#,MXUA8#202203

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-0R010iAXUH8#202203

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-0E040iAXUH8#202203-202303

sub86572-0E060

main86572-0E060iAXUH8#202304-202406

main86572-0E080iAXUH8#202406

90105C0217

main90105-C0217

9011906A06

main90119-06A06¥60

90119C0096

main90119-C0096

90119C0307

main90119-C0307

9 parts on this diagram · 1 diagram in section
