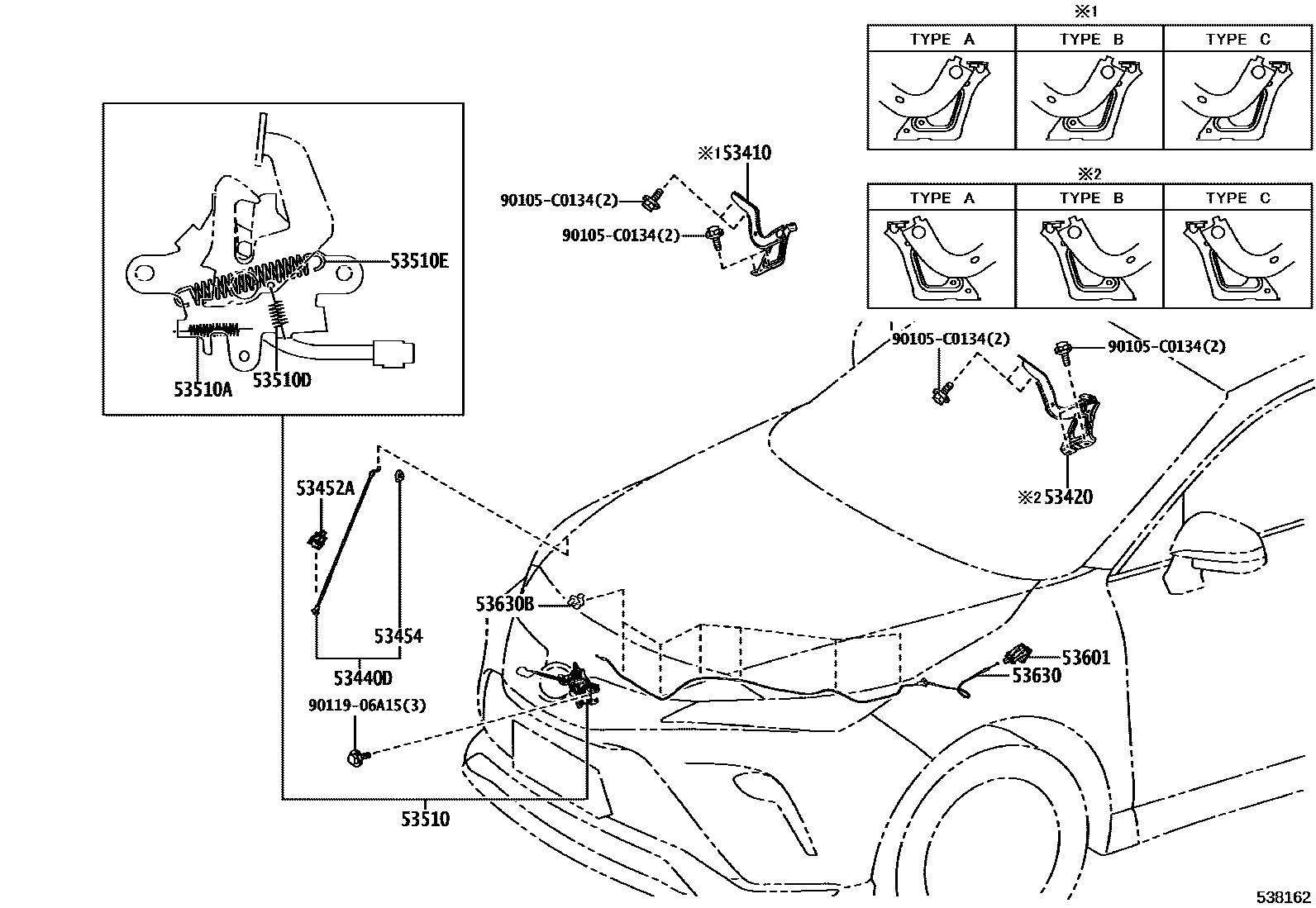

Toyota VENZA — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
53420HINGE ASSY, HOOD, LH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
53440DSUPPORT ASSY, HOOD
53452AHOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
90105C0134
main90105-C0134
9011906A15
14 parts on this diagram · 1 diagram in section
