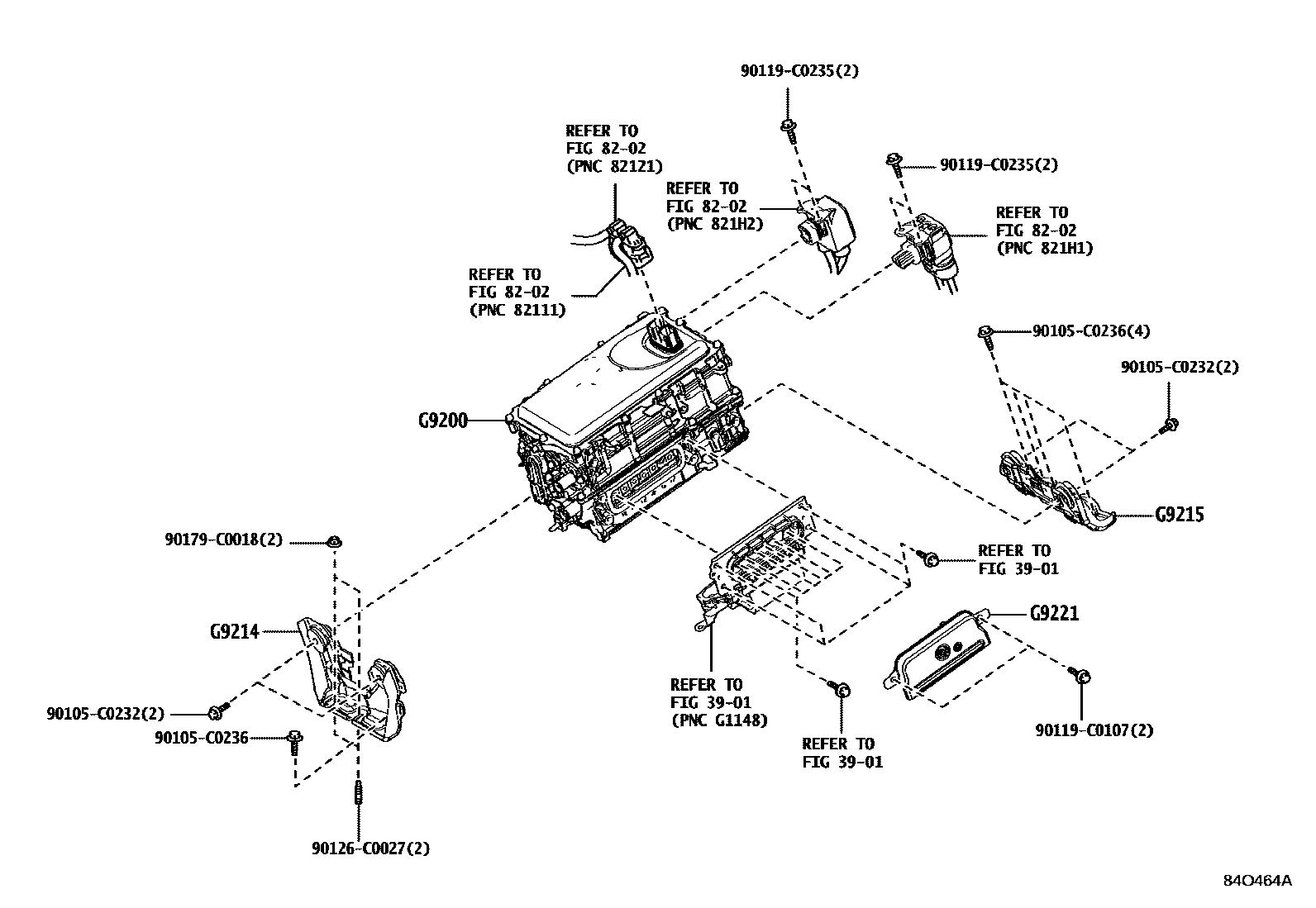

Toyota VENZA — HEV INVERTER

0001 1 0002 1CONVERTER KIT 0003 1 0004 1CONVERTER KIT

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A00E090iAXUH85202203-202207

subG92A0-0E091

mainG92A00E091iAXUH85202208-202310

subG92A0-0E092

mainG92A00E092iAXUH85202311

mainG92A042160iAXUH80202311

mainG92A048341iAXUH80202203-202207

subG92A0-48342¥309,000

mainG92A048342iAXUH80202208-202310

G9214BRACKET, INVERTER, NO.1

mainG921406040iAXUH8#202203

LOCAL SOURCED PARTS

mainG921433040iAXUH8#202203

JAPAN SOURCED PARTS

G9215BRACKET, INVERTER, NO.2

mainG921506050iAXUH80202203

LOCAL SOURCED PARTS

mainG92150E010iAXUH85202203

LOCAL SOURCED PARTS

mainG921533040iAXUH80202203

JAPAN SOURCED PARTS

mainG921542010iAXUH85202203

JAPAN SOURCED PARTS

G9221COVER, INVERTER

mainG902247050iAXUH8#202203

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0107

main90119-C0107

90119C0235

main90119-C0235

90126C0027

main90126-C0027

90179C0018

main90179-C0018

12 parts on this diagram · 4 diagrams in section
