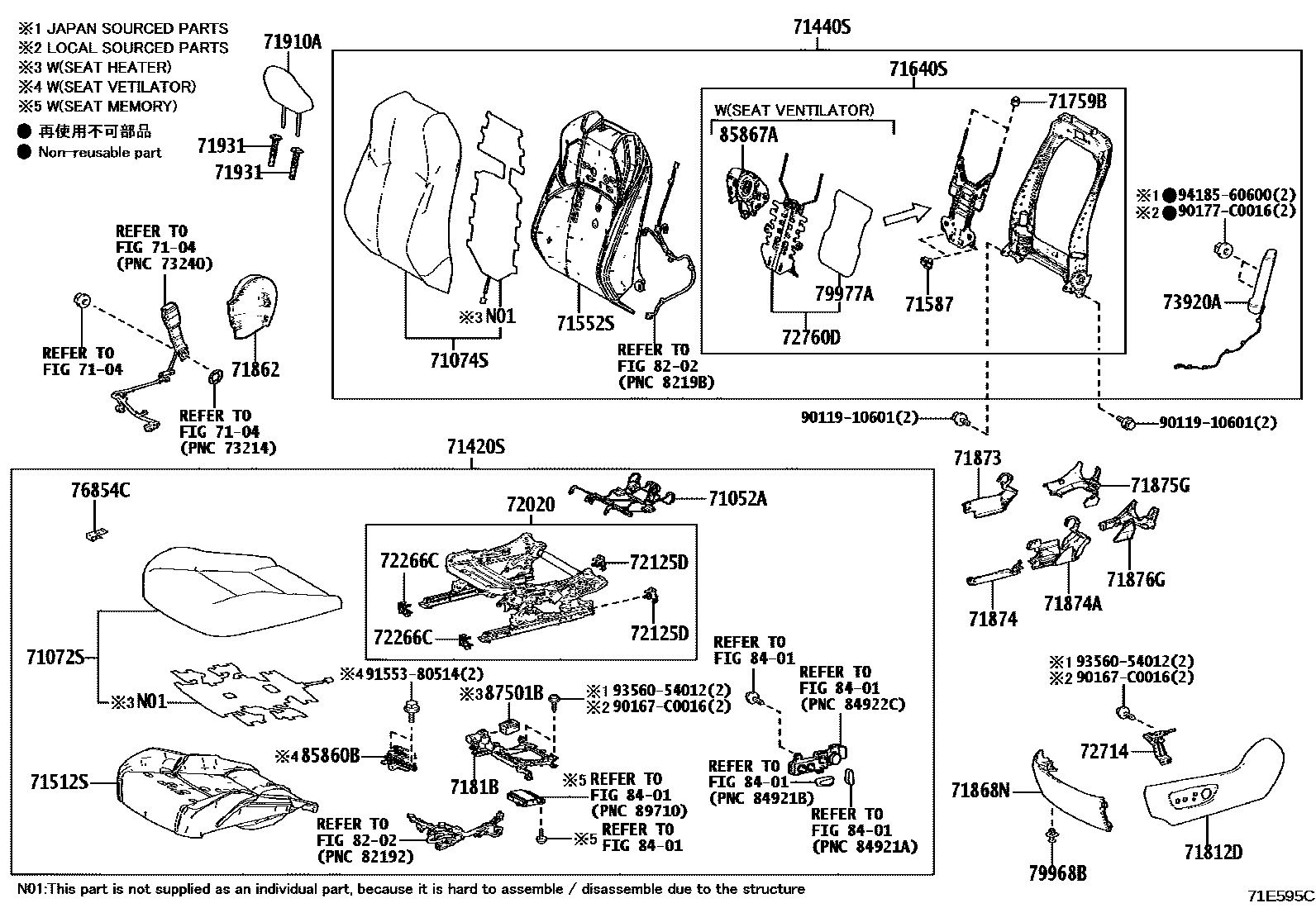

Toyota VENZA — FRONT SEAT & SEAT TRACK

0001 1LH SEAT(POWER SEAT) 0002 1RH SEAT(POWER SEAT) 0003 1RH SEAT(MANUAL SEAT) 0004 1FITTING PARTS

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iAXUH8#,MXUA8#202203

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0E790-B3iAXUH8#,MXUA8#..M,S202203-202206

MD.GRAY,TRIM1#

sub71072-0E791

main71072-0E790-C2iAXUH8#,MXUA8#..M,S202203-202206

BLACK,TRIM2#

sub71072-0E791

main71072-0E790-E0iAXUH8#,MXUA8#..M,S202203-202206

OCHER,TRIM4#

sub71072-0E791

main71072-0E791-B3iAXUH8#,MXUA8#..M,S202207

MD.GRAY,TRIM1#

main71072-0E791-C2iAXUH8#,MXUA8#..M,S202207

BLACK,TRIM2#

main71072-0E791-E0iAXUH8#,MXUA8#..M,S202207

OCHER,TRIM4#

main71072-0E810-C2iAXUH80,MXUA80..X202203

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0E730-B2iAXUH8#,MXUA8#..M,S202203

MD.GRAY,TRIM1#

main71074-0E730-C2iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM2#

main71074-0E730-E0iAXUH8#,MXUA8#..M,S202203

OCHER,TRIM4#

main71074-0E750-C2iAXUH80,MXUA80..X202203

BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0E550-B0iAXUH85,MXUA85202203-202405

MD.GRAY,TRIM1#

sub71420-0E690

main71420-0E550-C0iAXUH85,MXUA85202203-202405

BLACK,TRIM2#

sub71420-0E690

main71420-0E550-E0iAXUH85,MXUA85202203-202405

OCHER,TRIM4#

sub71420-0E690

main71420-0E660-B0iAXUH80,MXUA80..M202203

MD.GRAY,TRIM1#

main71420-0E660-C0iAXUH80,MXUA80..M202203

BLACK,TRIM2#

main71420-0E660-E0iAXUH80,MXUA80..M202203

0CHRE,TRIM4#

main71420-0E690-B0iAXUH85,MXUA85202406

MD.GRAY,TRIM1#

main71420-0E690-C0iAXUH85,MXUA85202406

BLACK,TRIM2#

main71420-0E690-E0iAXUH85,MXUA85202406

OCHER,TRIM4#

main71420-0E700-C2iAXUH80,MXUA80..X202203

BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0E640-B0iAXUH85,MXUA85202203

MD.GRAY,TRIM1#

main71440-0E640-C0iAXUH85,MXUA85202203

BLACK,TRIM2#

main71440-0E640-E0iAXUH85,MXUA85202203

OCHER,TRIM4#

main71440-0E650-B0iAXUH80,MXUA80..M202203

MD.GRAY,TRIM1#

main71440-0E650-C0iAXUH80,MXUA80..M202203

BLACK,TRIM2#

main71440-0E650-E0iAXUH80,MXUA80..M202203

OCHRE,TRIM4#

main71440-0E800-C2iAXUH80,MXUA80..X202203

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0E340iAXUH80,MXUA80..X202203

main71512-0E350iAXUH8#,MXUA8#..M,S202203

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0E280iAXUH80,MXUA80..X202203

main71552-0E290iAXUH8#,MXUA8#..M,S202203

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-06010iAXUH8#,MXUA8#202203

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-08090iAXUH80,MXUA80..X202203

main71640-0E210iAXUH85,MXUA85202203

main71640-0E280iAXUH80,MXUA80..M202203

71759BHOOK, FRONT SEATBACK

main71759-06030iAXUH8#,MXUA8#202203

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-08050-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71812-0R190-C0iAXUH8#,MXUA8#..M,S202203

BLACK,TRIM1#,2#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-0R040iAXUH8#,MXUA8#202203

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06340-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71862-06340-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-0R070-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71868-0R070-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0R090iAXUH8#,MXUA8#202203

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0R100iAXUH8#,MXUA8#202203

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0R080iAXUH8#,MXUA8#202203

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-0R070-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71876-0R070-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-0R090-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71875-0R090-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0R060-C0iAXUH80,MXUA80..X202203

BLACK,TRIM2#

main71876-0R060-C0iAXUH80,MXUA80..X202203

BLACK,TRIM1#,2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-0E520-C0iMXUA80..X202203

BLACK,TRIM2#

main71910-0E630-C0iAXUH80..X202203

BLACK,TRIM2#

main71910-0E640-B1iMXUA8#..M,S202203

MD.GRAY,TRIM1#

main71910-0E640-C0iMXUA8#..M,S202203

BLACK,TRIM2#

main71910-0E640-E1iMXUA8#..M,S202203

OCHER,TRIM4#

main71910-0E650-B1iAXUH8#..M,S202203

MD.GRAY,TRIM1#

main71910-0E650-C0iAXUH8#..M,S202203

BLACK,TRIM2#

main71910-0E650-E1iAXUH8#..M,S202203

OCHER,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-C0iAXUH80,MXUA80..X202203

W(LOCK),BLACK,TRIM2#

main71930-06070-C0iAXUH80,MXUA80..X202203

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-06060-C0iAXUH80,MXUA80..X202203

W/O(LOCK),BLACK,TRIM2#

main71931-06060-C0iAXUH80,MXUA80..X202203

W/O(LOCK),BLACK,TRIM1#,2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0E270iAXUH85,MXUA85202203

main72020-0R180iAXUH80,MXUA80202203

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-06050iAXUH8#,MXUA8#202203

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-06020iAXUH8#,MXUA8#202203

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-0R020iAXUH8#,MXUA8#202203

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-0R010iAXUH8#,MXUA8#..M,S202203

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R090iAXUH8#,MXUA8#202203

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iAXUH8#,MXUA8#¥40202409

79968BCLIP

main90467-07215iAXUH80,MXUA80..X¥80202203

79977AFELT, SEATBACK

main79977-06080iAXUH8#,MXUA8#..M,S202203

8202

8401

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-0R020iAXUH8#,MXUA8#..M,S202203

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-42010iAXUH8#,MXUA8#..M,S¥8,900202203

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-0R040iAXUH8#,MXUA8#..M,S202203

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-06020iAXUH8#,MXUA8#..M,S202203

9011910601

main90119-10601¥90

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9155380514

main91553-80514¥60

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

44 parts on this diagram · 4 diagrams in section
