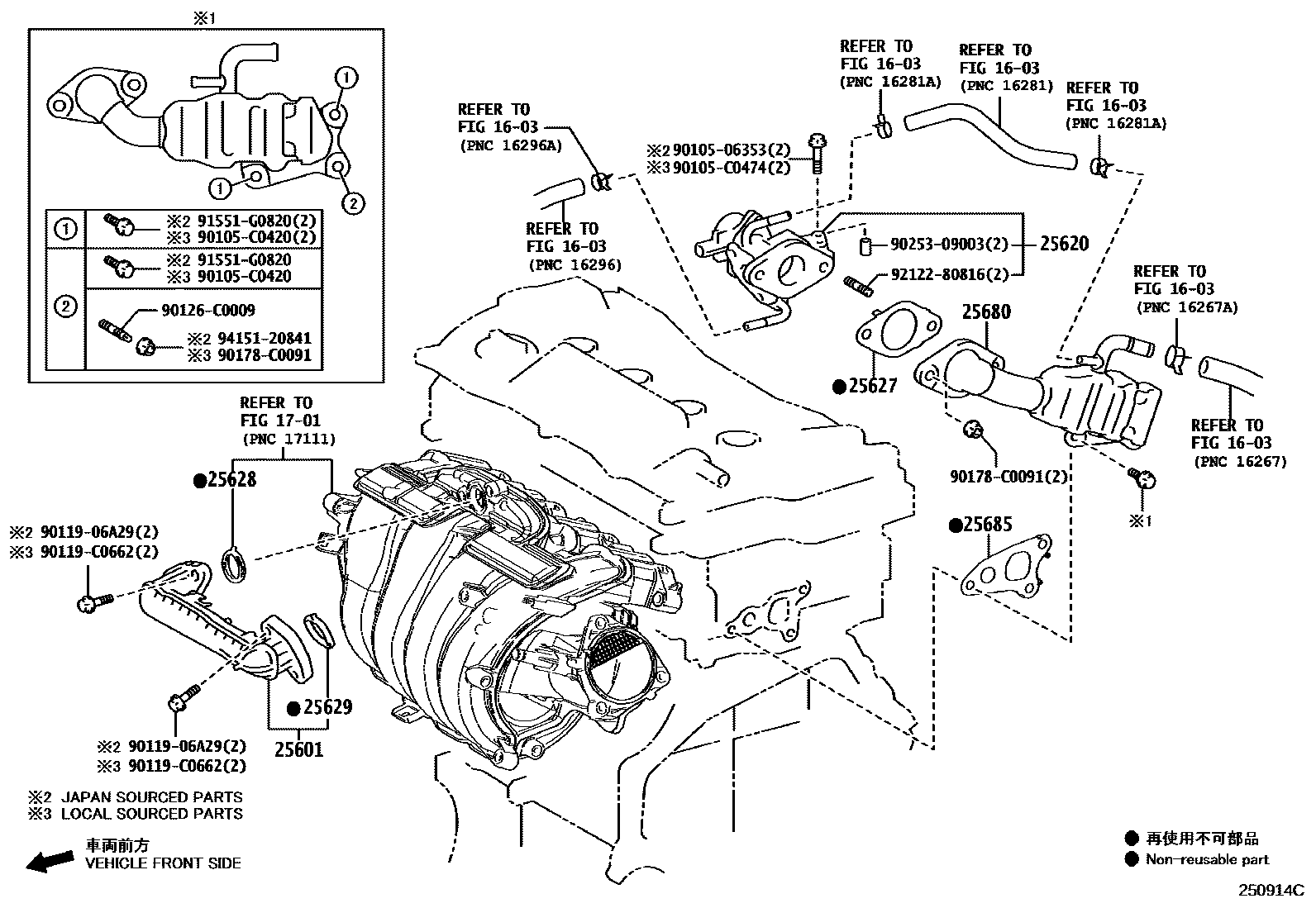

Toyota VENZA — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F0030iA25DFXS..AXUH8#202203

main25601-F2030iM20CFKS..MXUA8#202203

25620VALVE ASSY, EGR

main25620-F2060iM20CFKS..MXUA8#202203

25627GASKET, EGR VALVE

main25627-F2020iM20CFKS..MXUA8#202203

25628GASKET, EGR INLET

main25628-25010iM20CFKS..MXUA8#¥340202203

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20CFKS..MXUA8#¥340202203

25680COOLER ASSY, EGR

main25680-F0050iA25DFXS..AXUH8#202203

main25680-F2020iM20CFKS..MXUA8#202203

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25DFXS..AXUH8#¥270202203

(J)

main25685-F2010iM20CFKS..MXUA8#202203

(L)

9010506353

main90105-06353¥60

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29¥60

90119C0662

main90119-C0662

90126C0009

main90126-C0009

90178C0091

main90178-C0091

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

20 parts on this diagram · 2 diagrams in section
