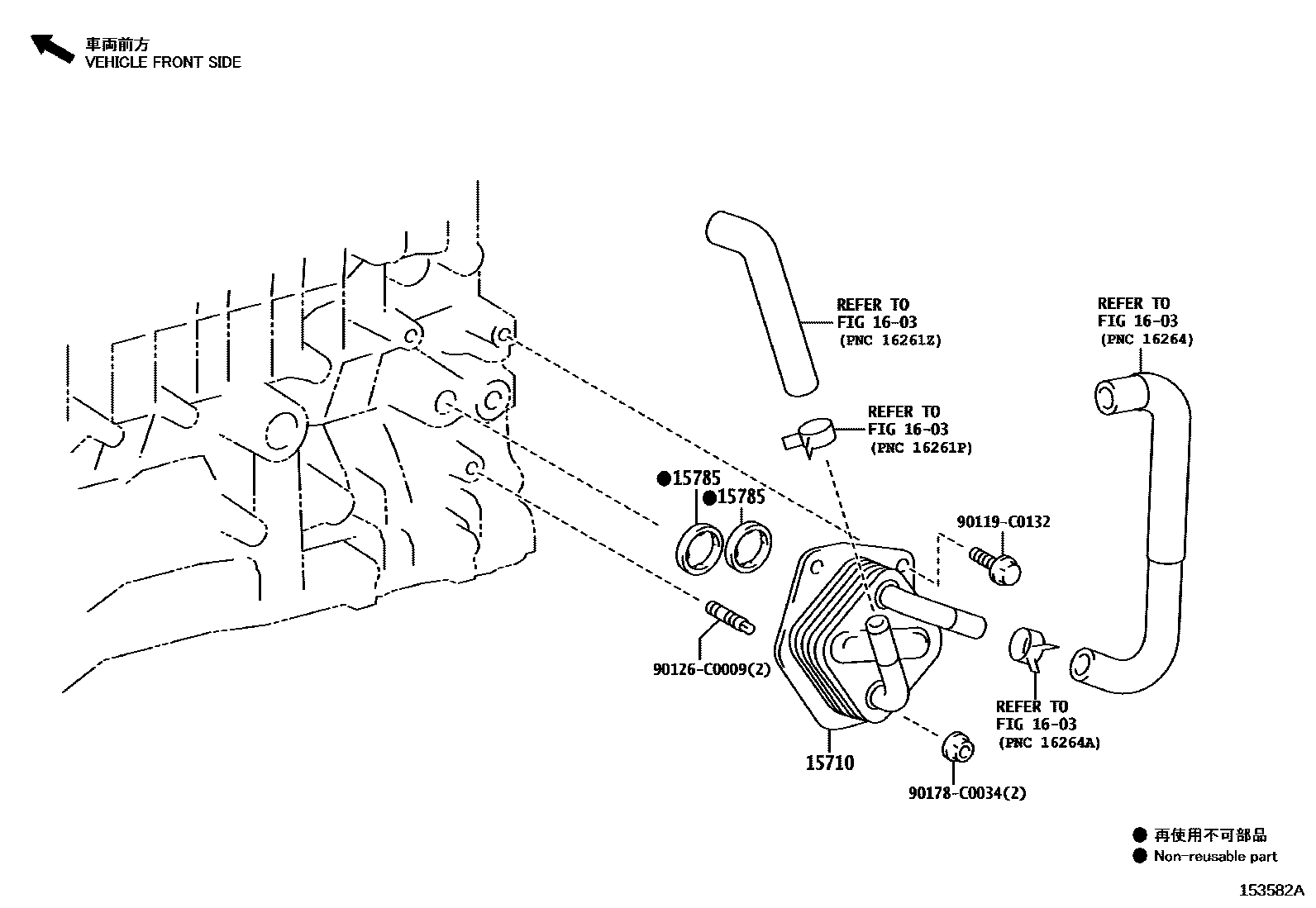

Toyota VENZA — ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-24010iM20CFKS..MXUA8#¥26,900202203

(J)

main15710-F2010iM20CFKS..MXUA8#202203

(L)

15785GASKET, OIL COOLER

main15785-F2010iM20CFKS..MXUA8#202203

1603

90119C0132

main90119-C0132

90126C0009

main90126-C0009

90178C0034

main90178-C0034

6 parts on this diagram · 1 diagram in section
