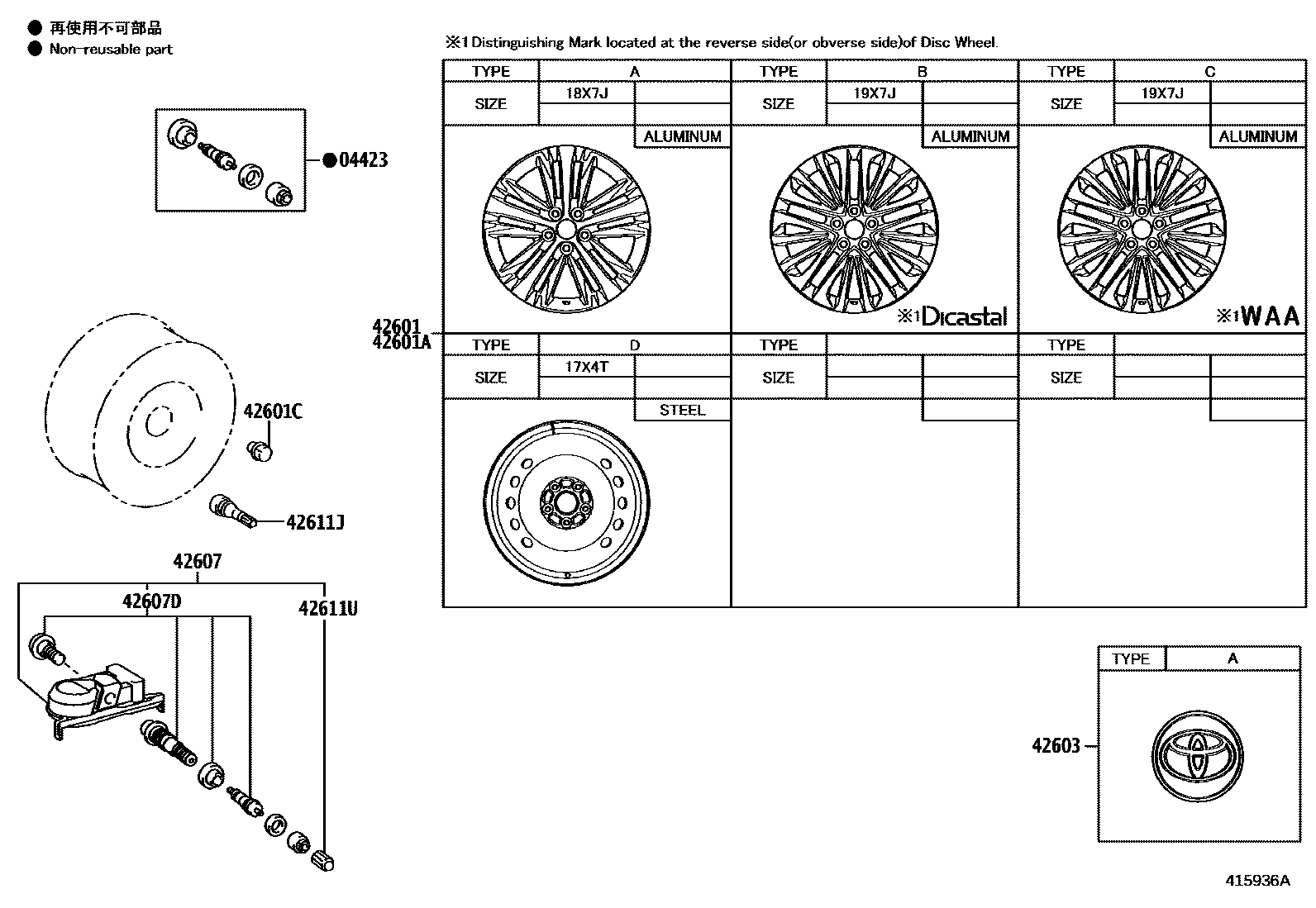

Toyota VENZA — DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iAXUH8#,MXUA8#202203

42601WHEEL, DISC

main42611-0E760iAXUH80,MXUA80..X202203

18X7J, #,TYPE A:REFER ILLUST.

main42611-0E770iAXUH8#,MXUA8#..M,S202203

19X7J, #,TYPE B:REFER ILLUST.

main42611-0E780iAXUH8#,MXUA8#..M,S202203

19X7J, #,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0R030iAXUH8#,MXUA8#202203

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iAXUH8#,MXUA8#202203

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iAXUH8#,MXUA8#202203

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iAXUH8#,MXUA8#202203

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iAXUH8#,MXUA8#202203

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXUH8#,MXUA8#¥390202203

(J)

main90942-C5005iAXUH8#,MXUA8#202203

(L)

42611UCAP, TIRE VALVE

main90942-C5001iAXUH8#,MXUA8#202203

9 parts on this diagram · 2 diagrams in section
