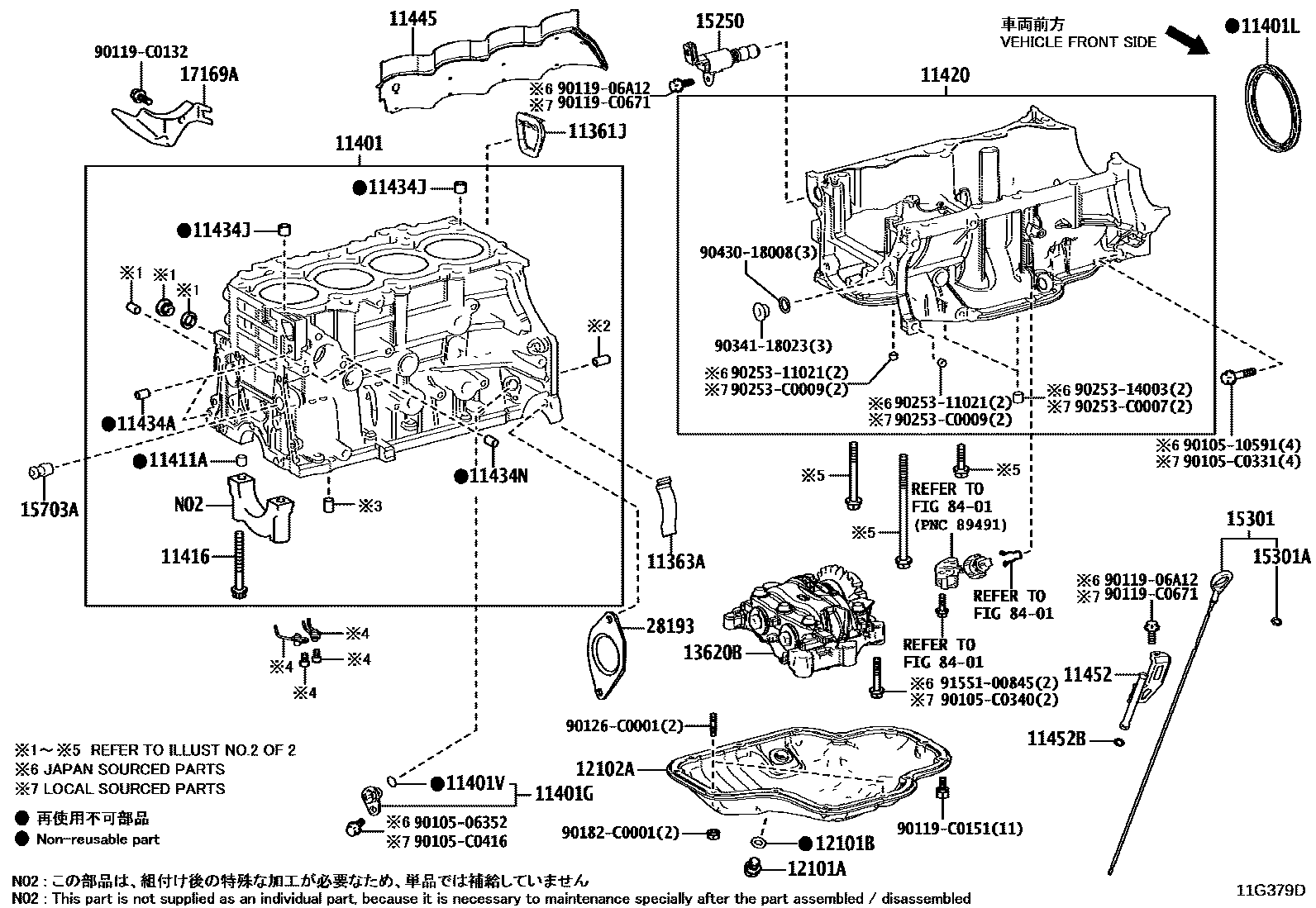

Toyota VENZA — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
(J)
(J)
(L)
(L)
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
13620BBALANCER ASSY, ENGINE
15250VALVE ASSY, OIL PRESSURE CONTROL
(J)
(L)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
(L)
(J)
15703AVALVE SUB-ASSY, OIL NOZZLE
(J)
(L)
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
28193INSULATOR, STARTER HOLE
8401
9010506352
9010510591
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
90126C0001
main90126-C0001
90182C0001
main90182-C0001
9025311021
9025314003
90253C0007
main90253-C0007
90253C0009
main90253-C0009
9034118023
9043018008
9155100845
45 parts on this diagram · 4 diagrams in section
