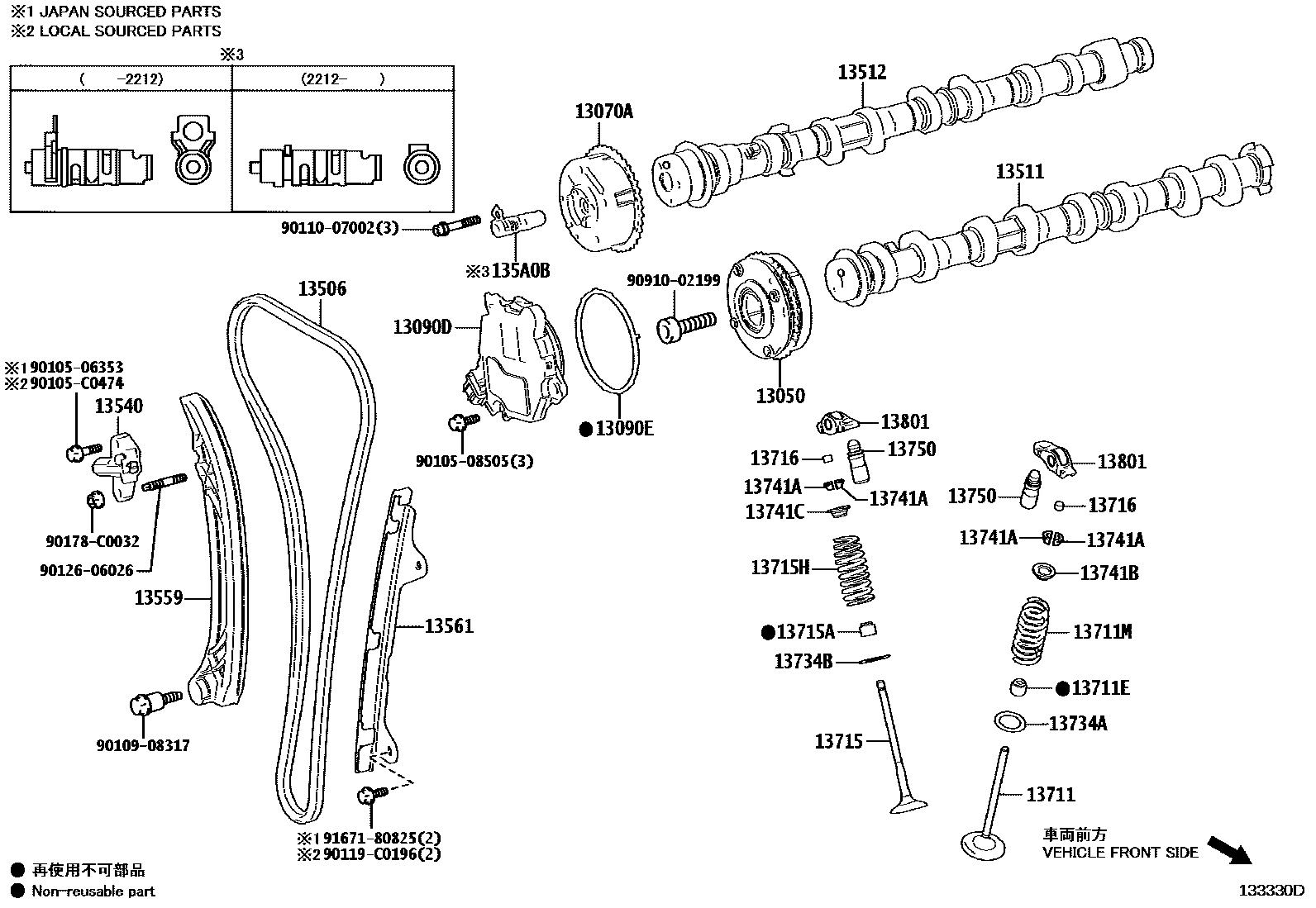

Toyota VENZA — CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
(J)
(L)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
REFER TO PNC 135A0B
REFER TO PNC 135A0B
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
(J)
(L)
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13511CAMSHAFT
sub13501-F0100
13512CAMSHAFT, NO.2
sub13502-F0100
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
135A0BVALVE ASSY, CAMSHAFT TIMING
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010506353
9010508505
90105C0474
main90105-C0474
9010908317
9011007002
90119C0196
main90119-C0196
9012606026
90178C0032
main90178-C0032
9091002199
9167180825
35 parts on this diagram · 2 diagrams in section
