Toyota VENZA — ANTENNA

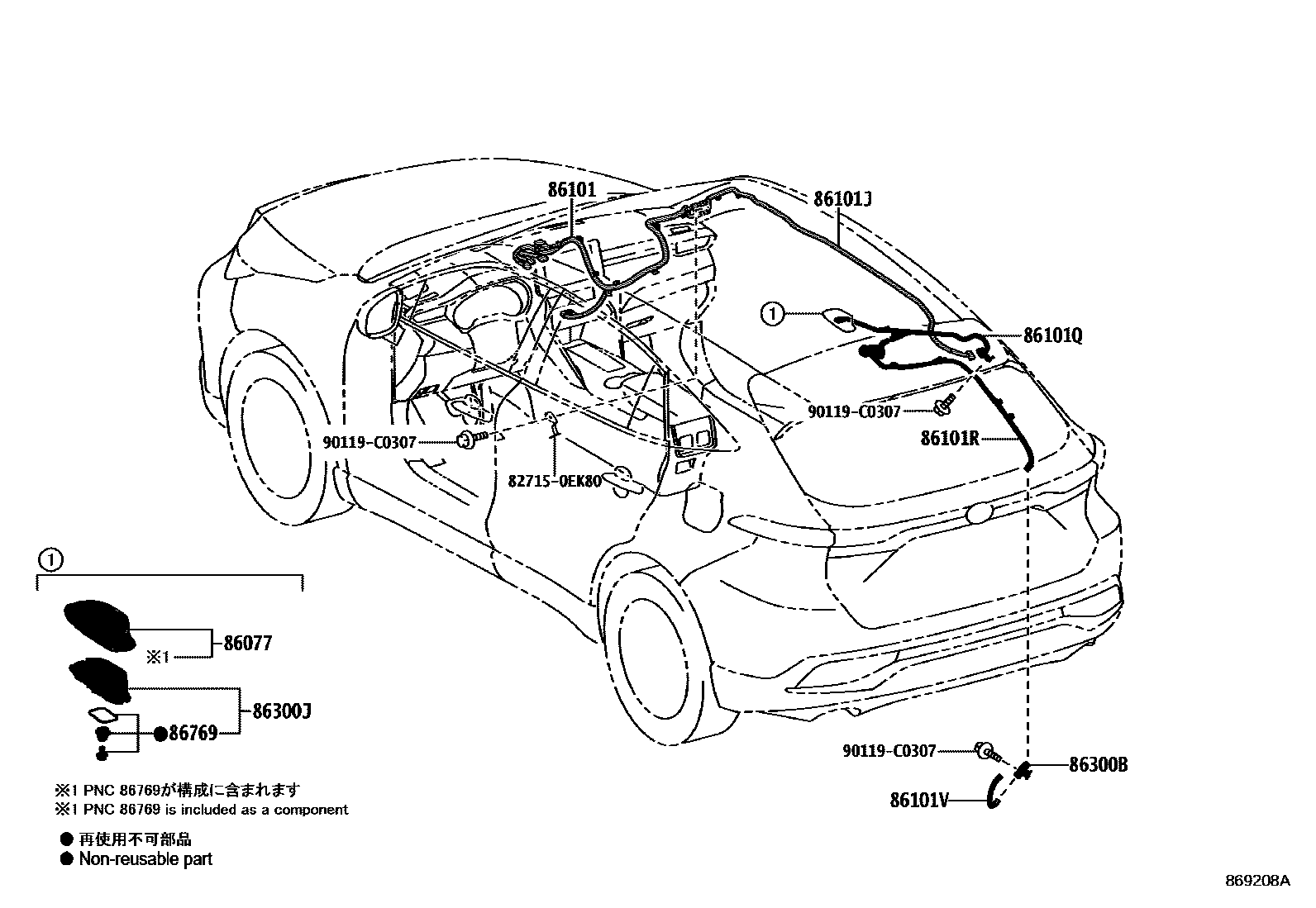

Parts diagram

86077COVER KIT, ANTENNA

main86077-47020-A3i202203-202312

PLATINUM WHITE PEARL MC.,089

sub86077-47020¥2,710

main86077-47020-B4i202203-202312

METAL STREAM ME,1K0

sub86077-47020¥2,710

main86077-47020-C1i202203-202312

BLACK MC.,209

sub86077-47020¥2,710

main86077-47020-D8i202203-202312

EMOTIONAL RED 2,3U5

sub86077-47020¥2,710

main86077-47020-E0i202203-202312

STEEL BLONDE,4X1

sub86077-47020¥2,710

main86766-F9060-A0i202312

PLATINUM WHITE PEARL MC.,089

main86766-F9060-B0i202312

METAL STREAM ME,1K0

main86766-F9060-C0i202312

BLACK MC.,209

main86766-F9060-D1i202312

EMOTIONAL RED 2,3U5

main86766-F9060-E0i202312

STEEL BLONDE ME.,4X1

86101CORD SUB-ASSY, ANTENNA

main86101-0EK00i202304-202406

main86101-0EP20i202203-202406

main86101-0ES50i202203-202304

main8610B-0E450i202406

main8610B-0E460i202406

CORE PACKAGE

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0EN80i202203-202406

main86101-0EN90i202203-202406

main8610B-0E430i202406

main8610B-0E440i202406

CORE PACKAGE

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0EP10i202203-202304

main86101-0ER20i202406

main86101-0ES30i202203-202304

main86101-0EX80i202304-202406

main86101-0EX90i202304-202406

main8610B-0E420i202406

CORE PACKAGE

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-0EP30i202203-202406

86101VCORD SUB-ASSY, ANTENNA, NO.6

main86101-0EP00i202203-202406

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0E130i202203-202406

86300JANTENNA ASSY, ROOF

main86760-0E090i202203-202304

main86760-0E130i202304

86769HOUSING, ROOF ANTENNA

main86769-0E030i202203-202304

main86769-0R020i202304

827150EK80BRACKET,WIRING HARNESS CLAMP

main82715-0EK80

90119C0307

main90119-C0307

11 parts on this diagram · 1 diagram in section
