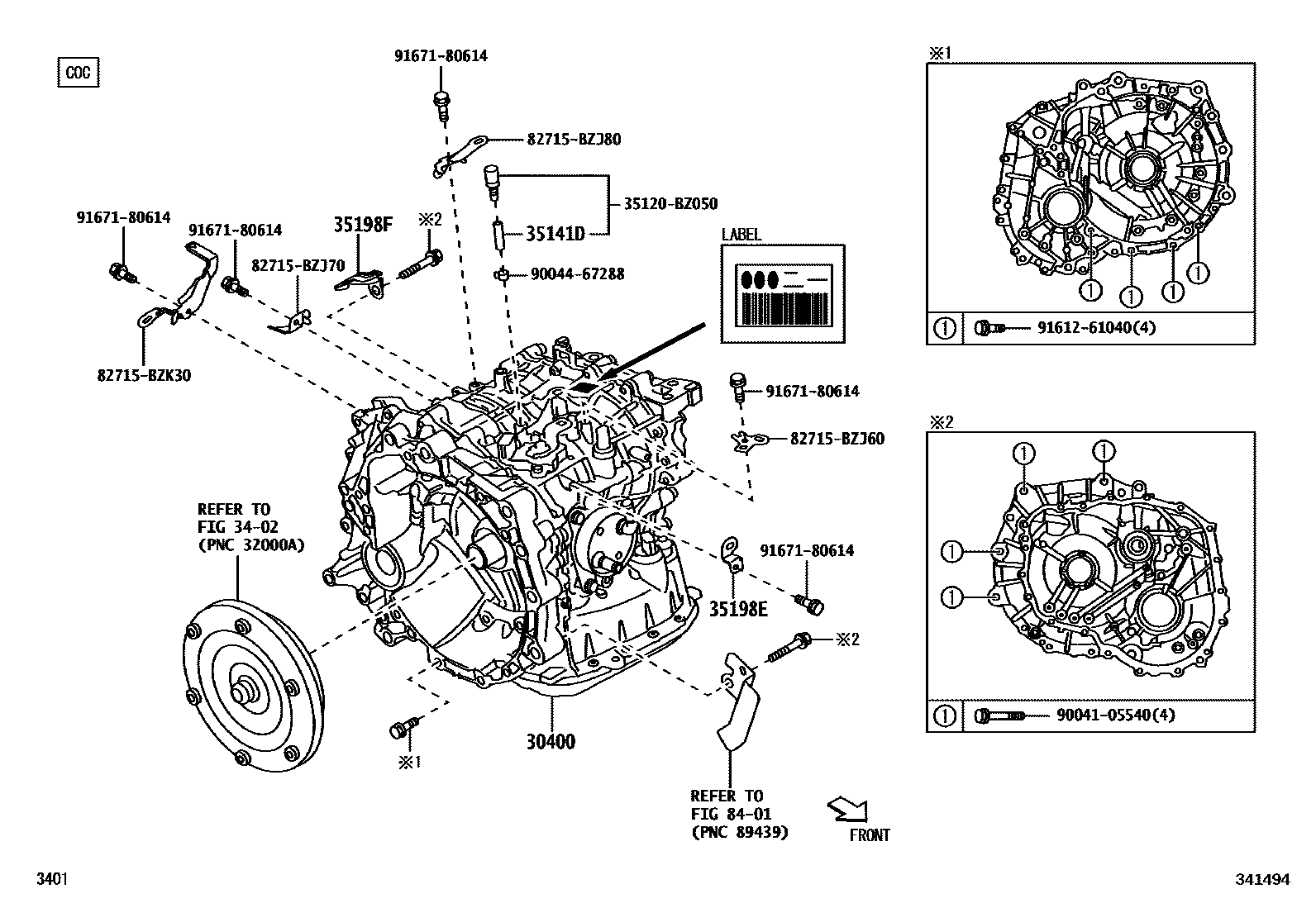

Toyota VELOZ — TRANSAXLE ASSY(CVT)

0001 1TRANSAXLE ASSY 0002 1INNER PARTS 0003 1VALVE BODY ASSY

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2C20iW151¥228,000202206

UNIT.NO=A2NK

main30400-BZ010iW151202206

UNIT.NO=301

3402

35141DHOSE(FOR BREATHER PLUG)

main35121-BZ060iW151202206

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-BZJ90iW151202206

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iW151¥600202206

8401

35120BZ050BREATHER ASSY, TRANSMISSION

main35120-BZ050

82715BZJ60BRACKET,WIRING HARNESS CLAMP

main82715-BZJ60

82715BZJ70BRACKET,WIRING HARNESS CLAMP

main82715-BZJ70

82715BZJ80BRACKET,WIRING HARNESS CLAMP

main82715-BZJ80

82715BZK30BRACKET,WIRING HARNESS CLAMP

main82715-BZK30

9004105540

main90041-05540¥290

9004467288

main90044-67288¥120

9161261040

main91612-61040¥130

9167180614

main91671-80614¥60

15 parts on this diagram · 3 diagrams in section
