Toyota VELOZ — SIDE WINDOW

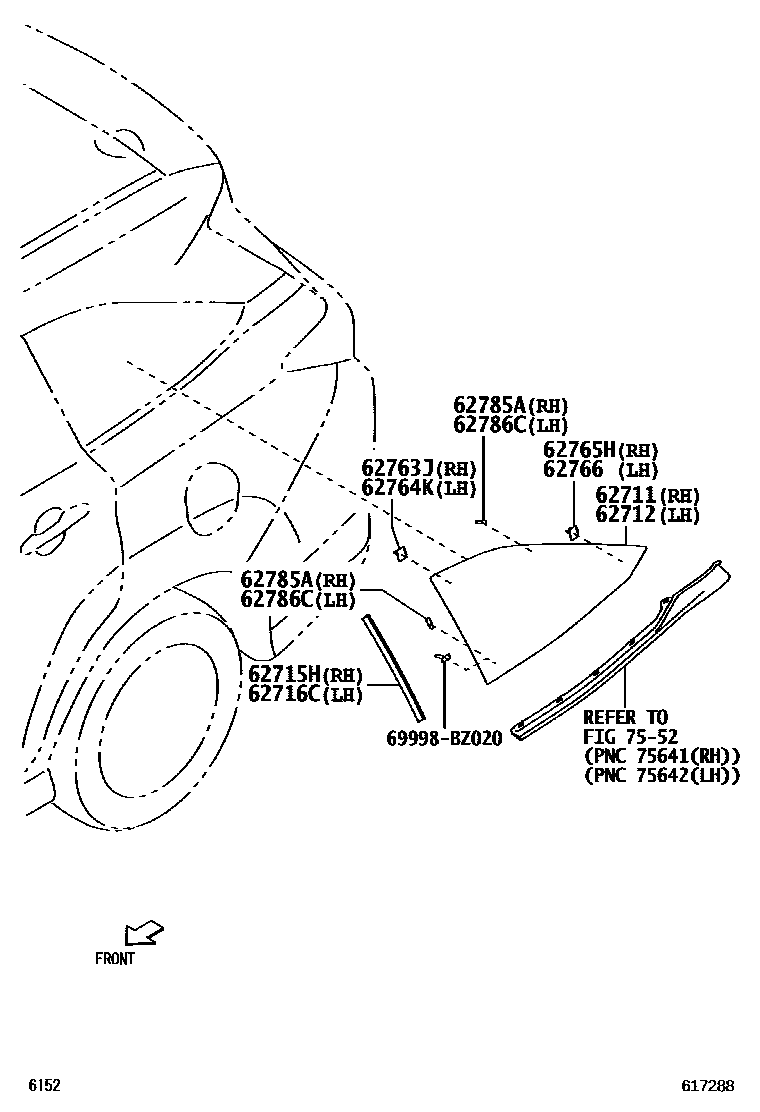

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62711-BZ460i202206

62712GLASS, QUARTER WINDOW, LH

main62712-BZ460i202206

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-BZ040i202206

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62715-BZ040i202206

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-BZ060i202206

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-BZ060i202206

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-BZ040i202206

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-BZ040i202206

62785ASPACER, QUARTER WINDOW GLASS

main64818-BZ070i202206

62786CSPACER, QUARTER WINDOW GLASS, LH

main64818-BZ070i202206

7552

69998BZ020PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-BZ020

12 parts on this diagram · 1 diagram in section
