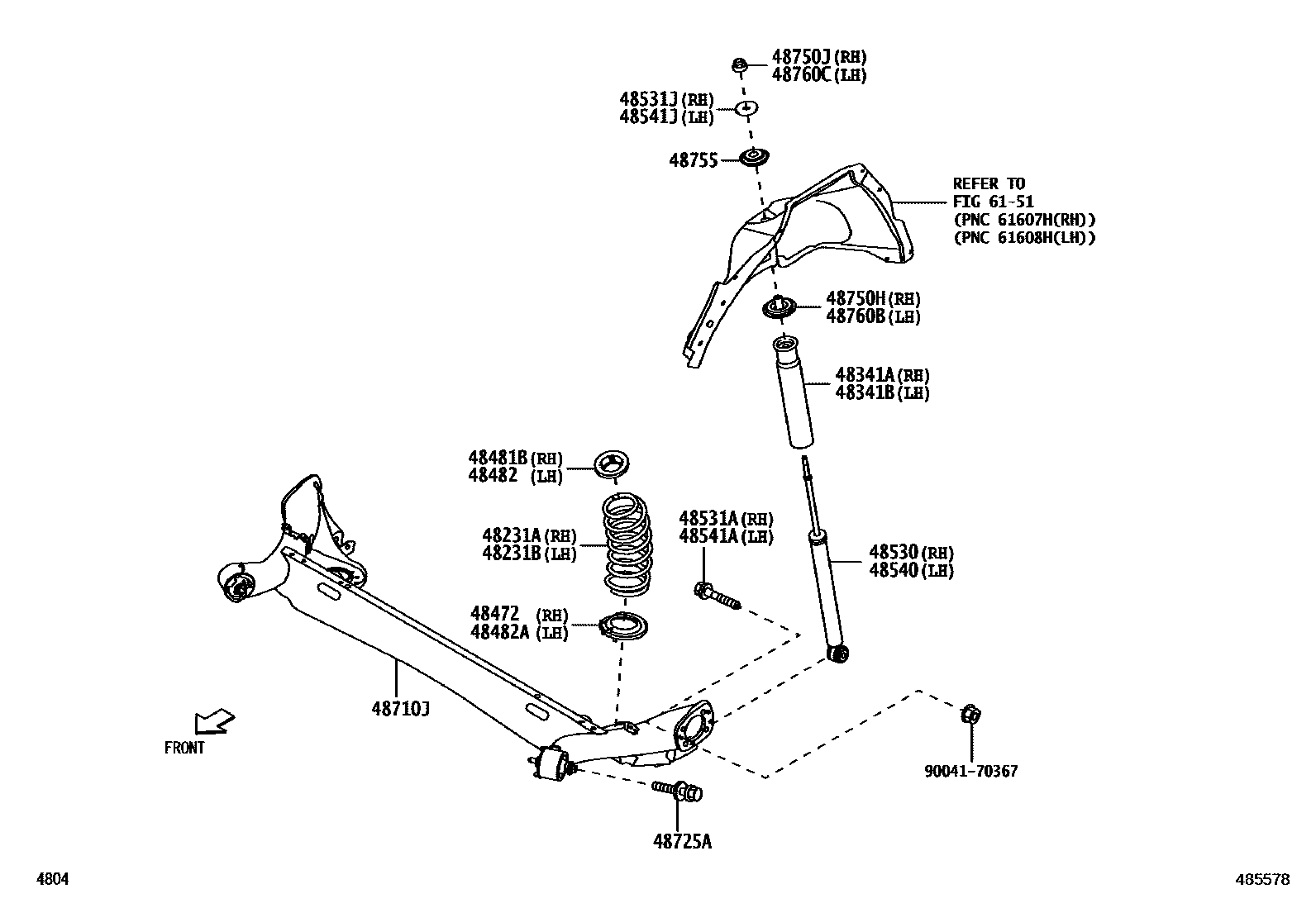

Toyota VELOZ — REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-BZA00iW151202206

48231BSPRING, COIL, REAR LH

main48231-BZA00iW151202206

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-BZ200iW151202206

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-BZ200iW151202206

48472SEAT, REAR SPRING, LOWER

main48482-BZ160iW151202206

RH

48481BSEAT, REAR SPRING, UPPER RH

main48481-BZ120iW151202206

48482SEAT, REAR SPRING, UPPER LH

main48481-BZ120iW151202206

48482ASEAT, REAR SPRING, LOWER

main48482-BZ160iW151202206

LH

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-BZB30iW151202206

MARK 48531-BZB30

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-01716iW151¥320202206

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main9004A-20077iW151202206

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-BZB30iW151202206

MARK 48531-BZB30

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-01716iW151¥320202206

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main9004A-20077iW151202206

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-BZ460iW151202206

48725ABOLT(FOR LOWER CONTROL ARM)

main9004A-11379iW151202206

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-BZ050iW151202206

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94188-01001iW151¥110202206

48755SUPPORT, REAR SUSPENSION

main48755-BZ050iW151202206

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-BZ050iW151202206

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94188-01001iW151¥110202206

6151

9004170367

main90041-70367¥100

23 parts on this diagram · 1 diagram in section
