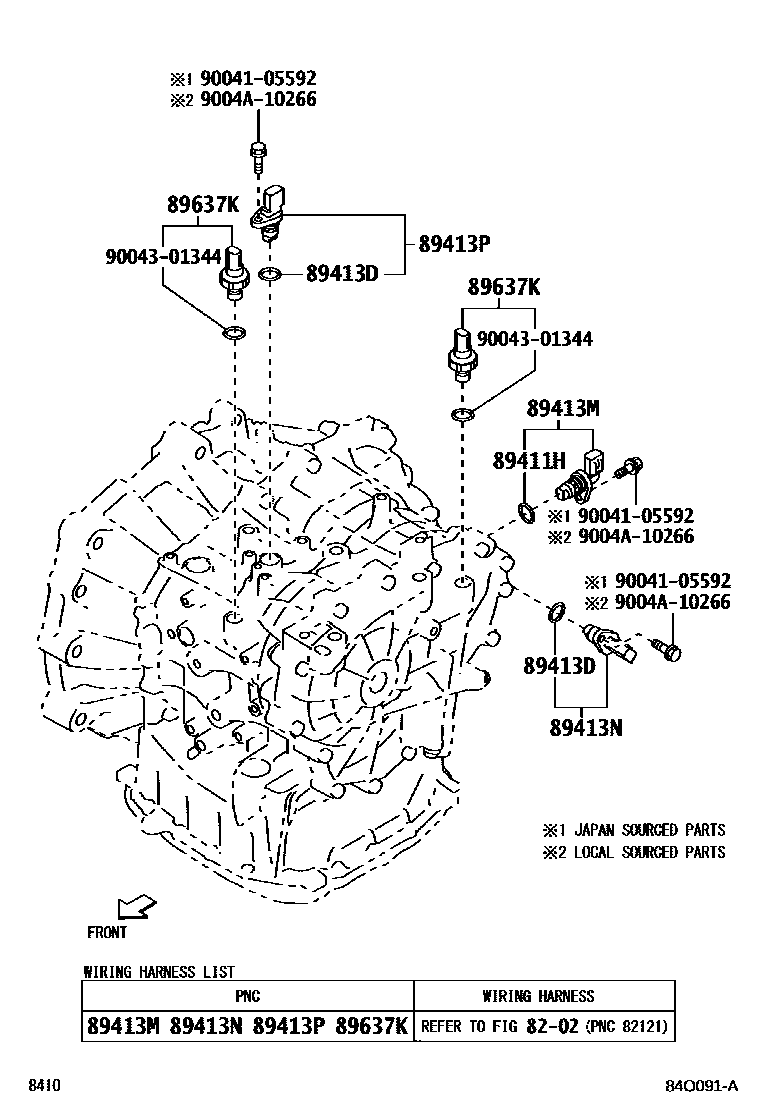

Toyota VELOZ — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8202

89411HRING, O

main90043-01278iW151¥190202206

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iW151¥190202206

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-B2030iW151¥3,650202206

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-B2020iW151¥3,650202206

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2020iW151¥3,650202206

89637KSENSOR, OIL PRESSURE

main89637-B2030iW151¥4,000202206

9004105592

main90041-05592¥110

9004301344

main90043-01344¥130

9004A10266

main9004A-10266

10 parts on this diagram · 1 diagram in section
