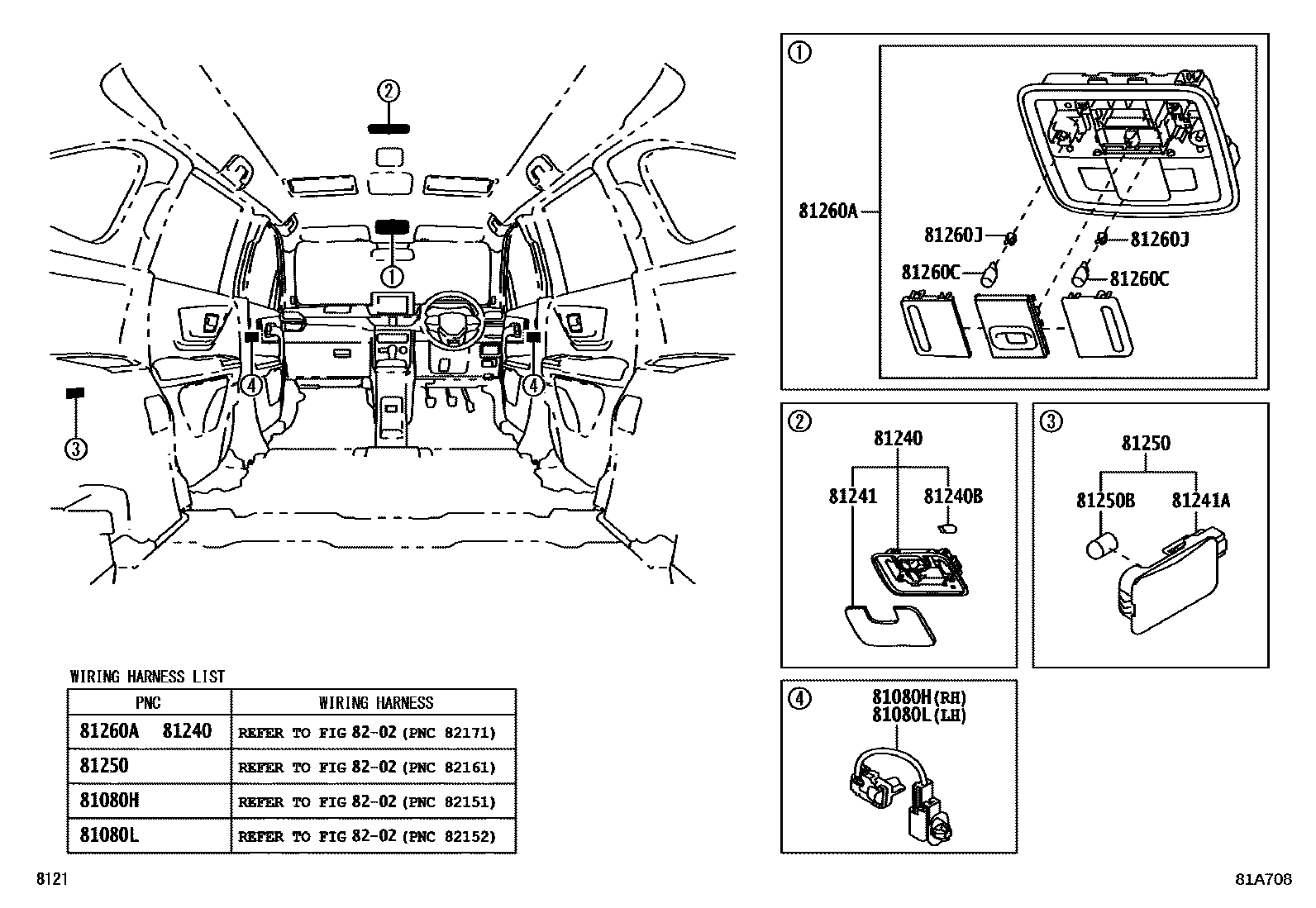

Toyota VELOZ — INTERIOR LAMP

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81081-BZ010iW151202206-202502

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81081-BZ010iW151202206-202502

81240LAMP ASSY, ROOM, NO.1

main81240-BZ150-B0iW151202206

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main84999-BZ130iW151202206

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-BZ050iW151202206

81241ALENS, ROOM LAMP, NO.2

main81241-BZ080iW151202206

81250LAMP ASSY, ROOM, NO.2

main81240-BZ120iW151202206

81250BBULB, ROOM LAMP, NO.2

main84999-BZ140iW151202206

12V 5W

81260ALAMP ASSY, MAP

main81260-BZ050-B0iW151202206

LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-11013iW151¥110202206

12V 5W T10

sub99132-12050¥110

81260JSOCKET, BULB(FOR MAP LAMP)

main83101-87705iW151¥130202206

8202

12 parts on this diagram · 1 diagram in section
