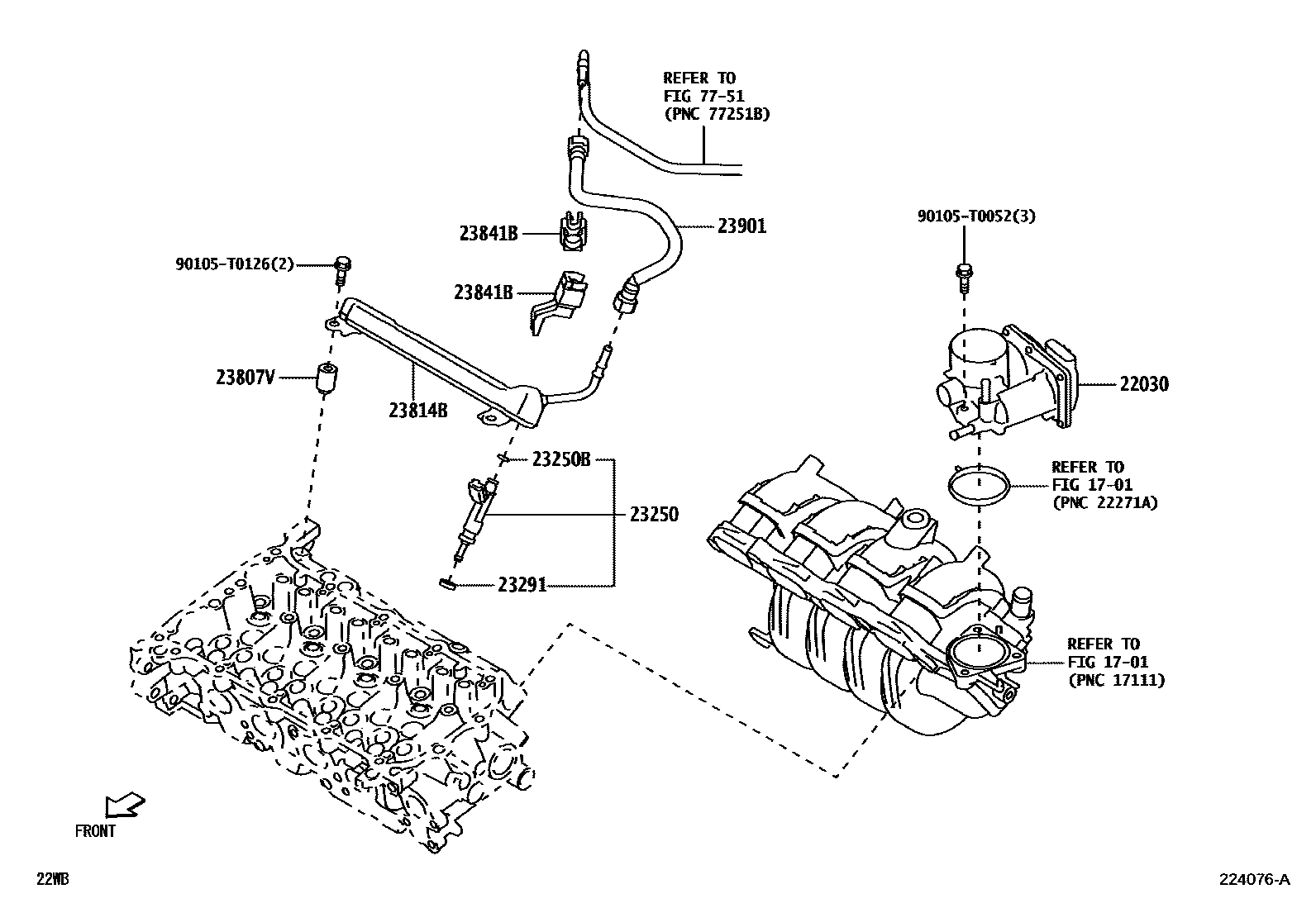

Toyota VELOZ — FUEL INJECTION SYSTEM

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y140i2NRVE..W151202206

23250INJECTOR ASSY, FUEL

main23209-09340i2NRVE..W151202206

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i2NRVE..W151¥140202206

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRVE..W151¥230202206

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i2NRVE..W151202206

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NRVE..W151202206

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i2NRVE..W151202206

23901TUBE SUB-ASSY, FUEL

main23901-BZ160i2NRVE..W151202206-202406

main23901-BZ170i2NRVE..W151202407

7751

90105T0052

main90105-T0052

90105T0126

main90105-T0126

12 parts on this diagram · 1 diagram in section
