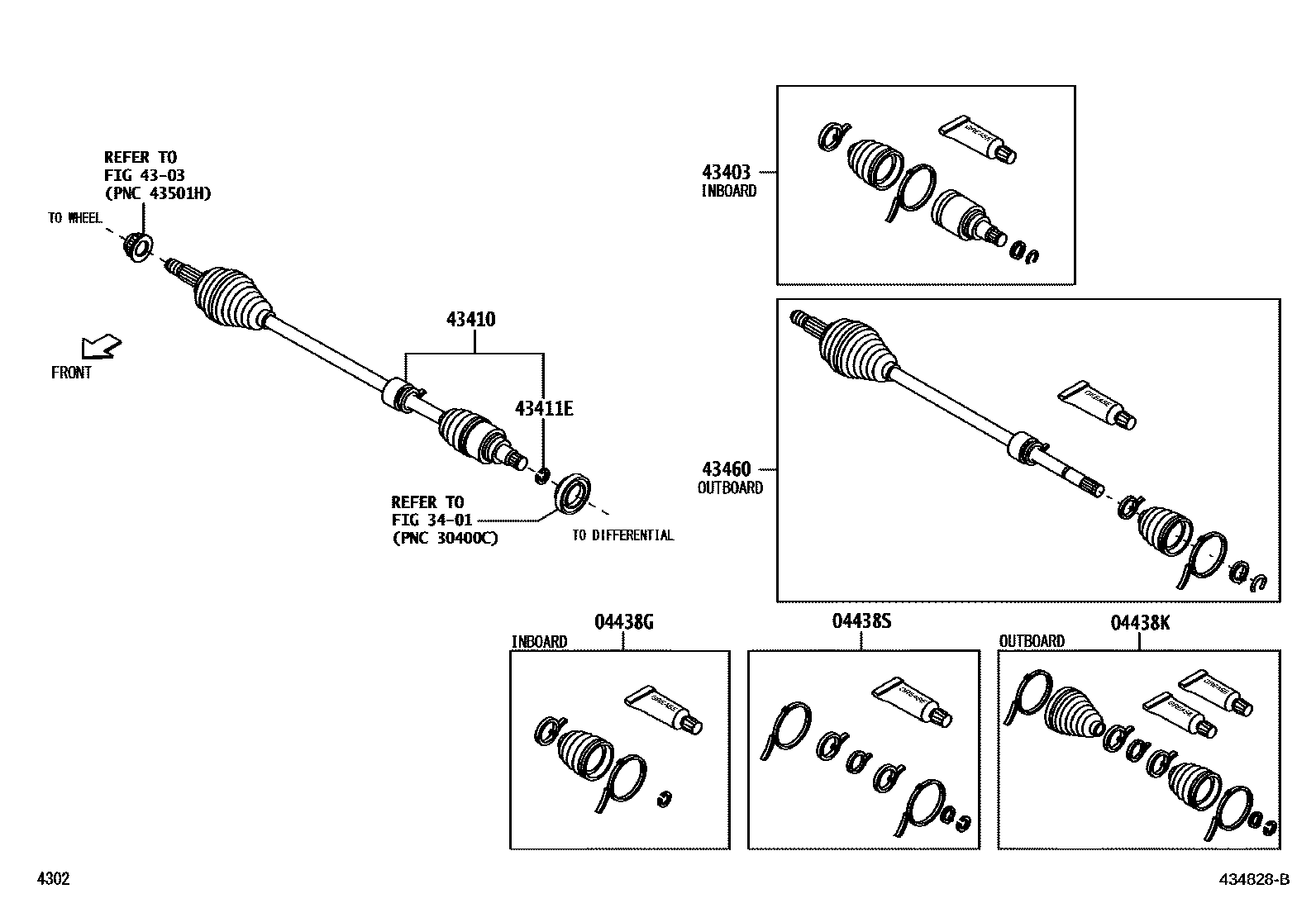

Toyota VELOZ — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-BZ080iW151202206-202410

main04438-BZ070iW151202411

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-BZ080iW151202206-202410

main04425-BZ210iW151202411

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-BZ090iW151202206-202410

main04435-BZ210iW151202411

3401

4303

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9620iW151202206-202410

main43408-B9630iW151202411

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-BZ170iW151202206-202410

sub43410-BZ171

main43410-BZ171iW151202411

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-BZ080iW151202206

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9730iW151202206-202410

sub43411-B9735

main43411-B9735iW151202411

9 parts on this diagram · 2 diagrams in section
