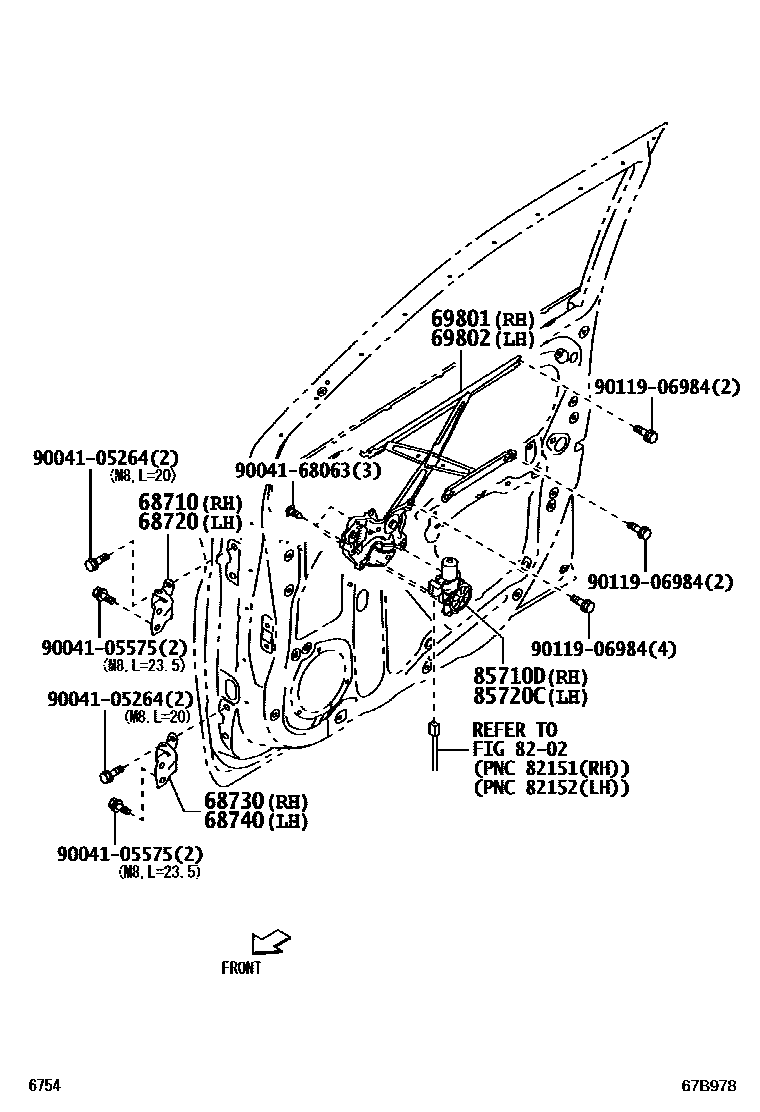

Toyota VELOZ — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-BZ110iW151202206

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-BZ090iW151202206

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-BZ090iW151202206

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-BZ110iW151202206

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-BZ210iW151202206

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-BZ210iW151202206

8202

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ210iW151202206

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ240iW151202206

9004105264

main90041-05264¥150

9004105575

main90041-05575¥170

9004168063

main90041-68063¥100

9011906984

main90119-06984¥60

13 parts on this diagram · 1 diagram in section
