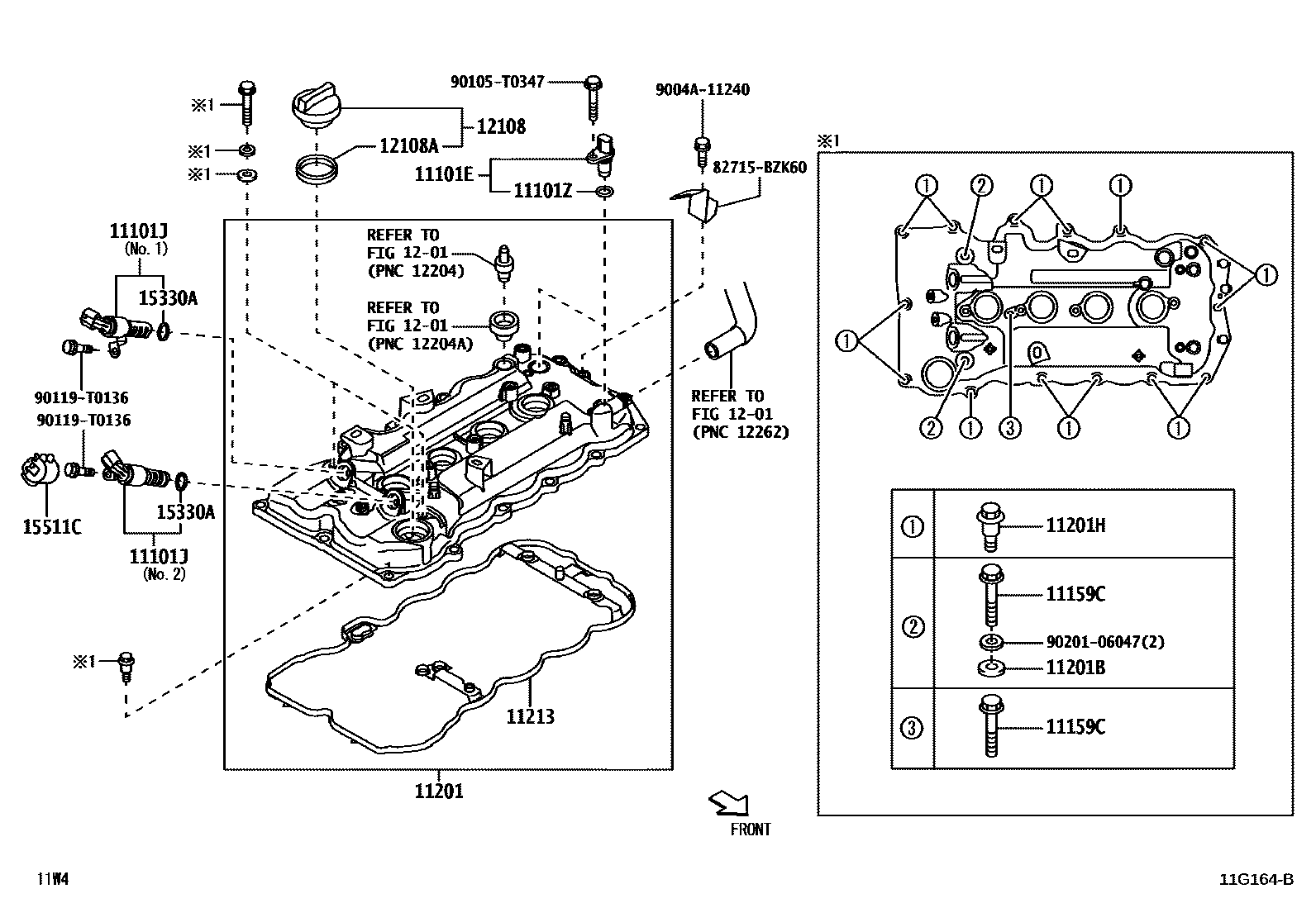

Toyota VELOZ — CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-B9641i2NRVE..W151202206

11101ESENSOR, CAM POSITION

main90919-T5002i2NRVE..W151202206

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y050i2NRVE..W151202206

NO.1

main15330-0Y060i2NRVE..W151¥7,400202206

N0.2

11101ZO RING, CAM POSITION SENSOR

main9004A-30059i2NRVE..W151202206

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i2NRVE..W151¥60202206

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ160i2NRVE..W151202206

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-T0002i2NRVE..W151202206

11201HBOLT(FOR CYLINDER HEAD COVER)

main90109-T0055i2NRVE..W151202206

11213GASKET, CYLINDER HEAD COVER

main11213-BZ110i2NRVE..W151202206

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2NRVE..W151202206

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i2NRVE..W151202206

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i2NRVE..W151¥170202206

15511CCOVER, OIL CONTROL VALVE

main15511-BZ010i2NRVE..W151202206

82715BZK60BRACKET,WIRING HARNESS CLAMP

main82715-BZK60

9004A11240

main9004A-11240

90105T0347

main90105-T0347¥60

90119T0136

main90119-T0136

9020106047

main90201-06047¥80

19 parts on this diagram · 2 diagrams in section
